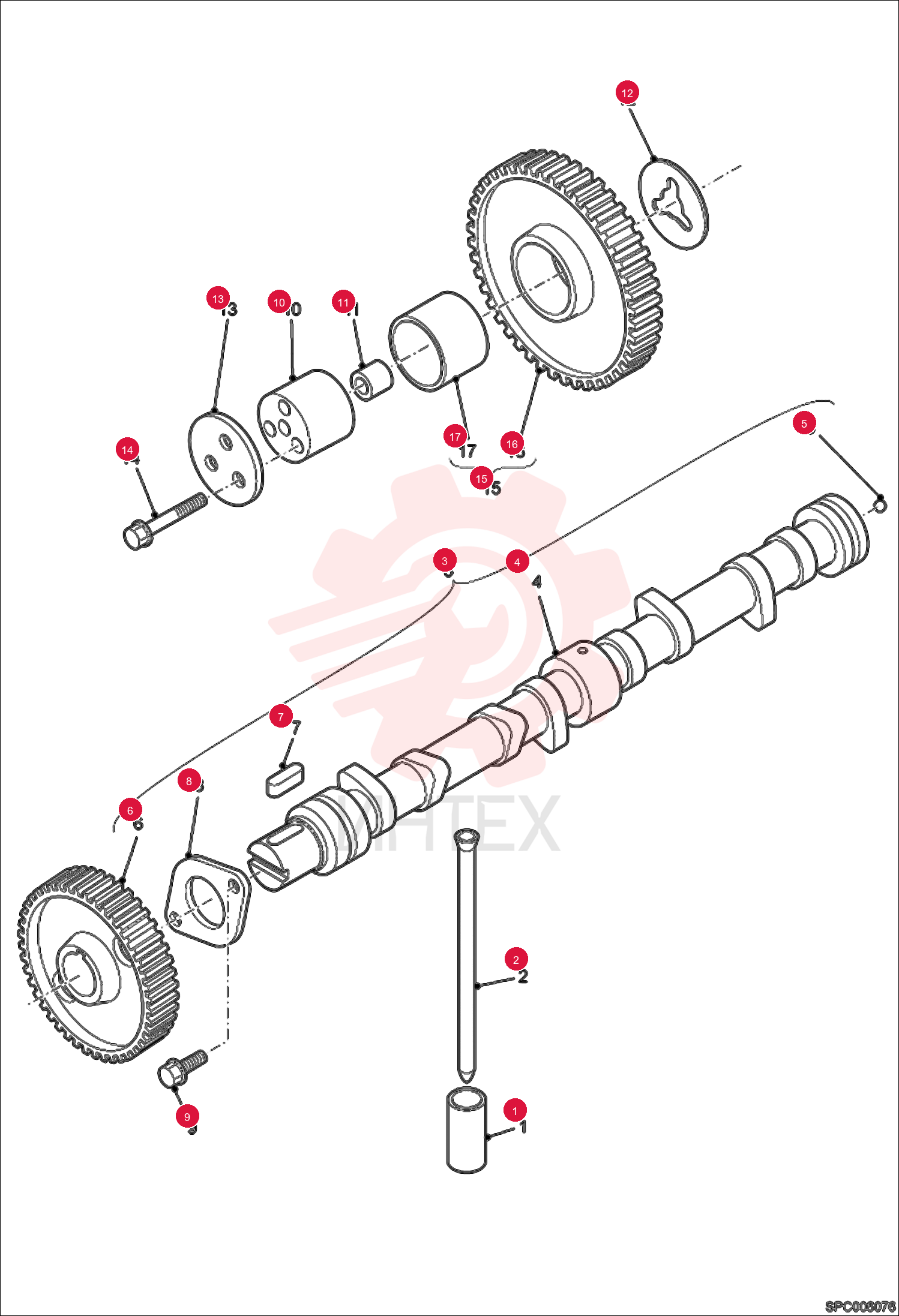

TAPPET 6680707

TAPPET 6680707

TAPPET 6680707

1 6680707

  • 6680707 - TAPPET

2 6680708

  • 6680708 - PUSH ROD

3 7017203

  • 7017203 - CAMSHAFT
  • VALVE

4 6680710

  • 6680710 - BALL

5 7017197

  • 7017197 - GEAR
  • CAMSHAFT

6 6652679

  • 6652679 - KEY

7 6680712

  • 6680712 - FLANGE

8 6680662

  • 6680662 - BOLT

9 6680714

  • 6680714 - SHAFT

10 6680715

  • 6680715 - PIN

11 6680716

  • 6680716 - COLLAR

12 6680717

  • 6680717 - COLLAR

13 6680685

  • 6680685 - BOLT

14 7024251

  • 7024251 - GEAR
  • IDLER

15 7024250

  • 7024250 - BUSHING
  • IDLE GEAR
