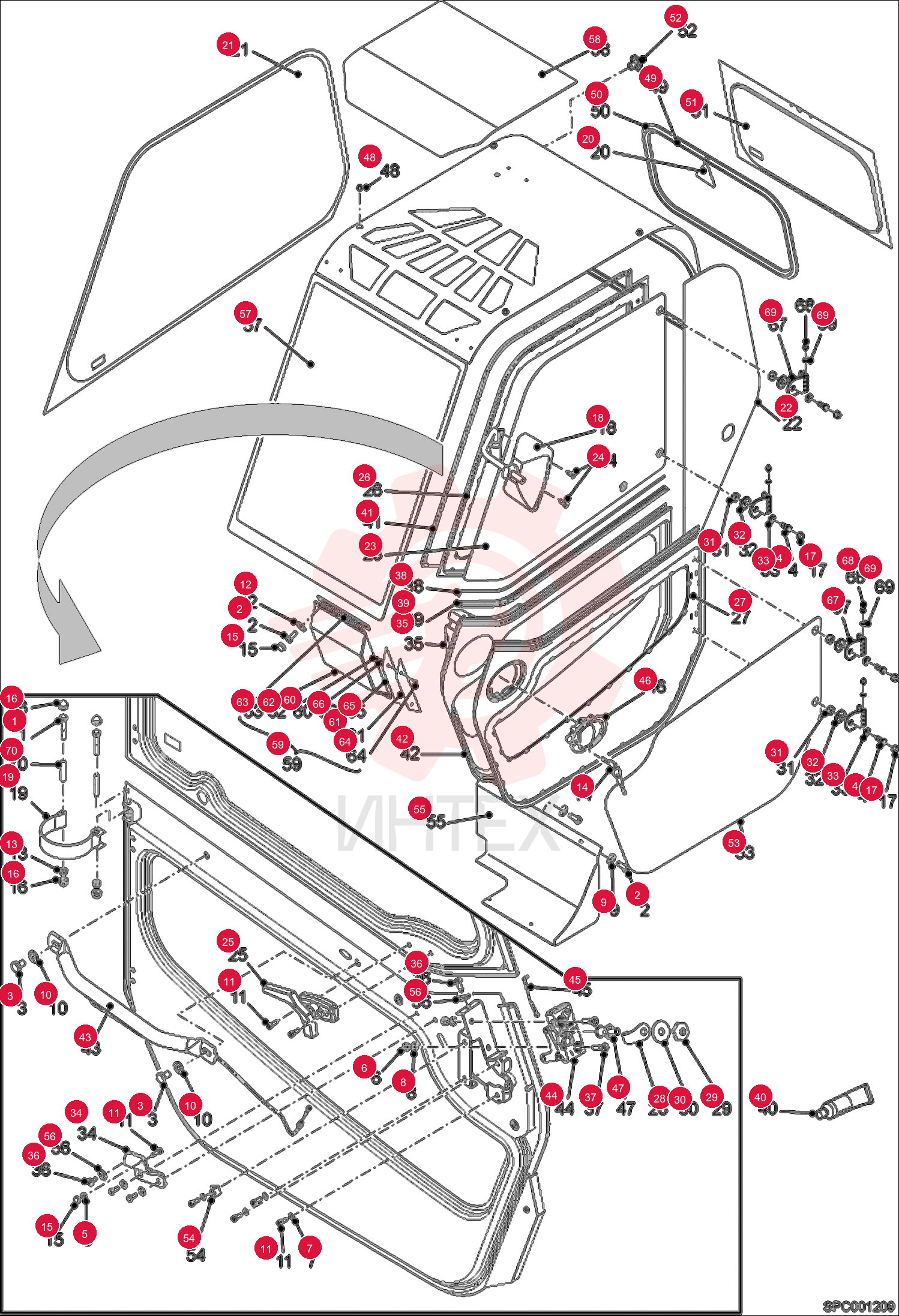

SCREW 01579-2 (4)

SCREW 01579-2 (4)

SCREW 01579-2 (4)

1 01579-2

  • 01579-2 - SCREW

2 01590-9

  • 01590-9 - SCREW

3 4CM1016

  • 4CM1016 - SCREW

4 4CM1030

  • 4CM1030 - SCREW

5 1DM6

  • 1DM6 - NUT

6 4DM8

  • 4DM8 - NUT HEX

7 01696-4

  • 01696-4 - WASHER

8 01697-2

  • 01697-2 - WASHER

9 01717-8

  • 01717-8 - WASHER

10 01719-4

  • 01719-4 - WASHER

11 15354-4

  • 15354-4 - SCREW

12 01681-6

  • 01681-6 - NUT

13 6926414

  • 6926414 - SET OF KEYS

14 63332-1

  • 63332-1 - CAP

15 7233284

  • 7233284 - CAP
  • NUT

16 63334-7

  • 63334-7 - 10 MM SCREW CAP

17 6925400

  • 6925400 - MIRROR
  • W/O BRACKET

18 79903-1

  • 79903-1 - MIRROR
  • SIDE REAR

19 7218367

  • 7218367 - BELT

20 6731478

  • 6731478 - TAG EXIT

21 6908788

  • 6908788 - WINDOW PANE RH

22 6908789

  • 6908789 - WINDOW PANE
  • REAR LEFT

23 6908792

  • 6908792 - WINDOW
  • DOOR CAB UPPER

24 6909997

  • 6909997 - SCREW FHC M6X16

25 71162-2

  • 71162-2 - HANDLE

26 6910734

  • 6910734 - UPPER DOOR

27 6937758

  • 6937758 - DOOR
  • LOWER ASSY

28 6910737

  • 6910737 - LOWER DOOR

29 7218272

  • 7218272 - GUARD

30 7218273

  • 7218273 - NUT

31 6910949

  • 6910949 - WASHER

32 6910989

  • 6910989 - SPACER

33 6910990

  • 6910990 - WASHER
  • LEAKPROOF

34 6910991

  • 6910991 - WASHER

35 6910993

  • 6910993 - DOOR STOP
  • UPPER

36 6910994

  • 6910994 - LOCK PROTECTION

37 6935705

  • 6935705 - LOCK COVER

38 6937757

  • 6937757 - COVER
  • LOCK

39 6910996

  • 6910996 - SCREW

40 6910997

  • 6910997 - SCREW

41 6911000

  • 6911000 - SEAL

42 6911001

  • 6911001 - SEAL

43 6913044

  • 6913044 - GLUE

44 6914787

  • 6914787 - SEAL

45 6914788

  • 6914788 - SEAL

46 6937759

  • 6937759 - HANDLE

47 6918340

  • 6918340 - HANDLE INNER

48 7217697

  • 7217697 - LOCK

49 6918341

  • 6918341 - LOCK

50 6918342

  • 6918342 - CABLE

51 6937756

  • 6937756 - HANDLE

52 6918343

  • 6918343 - DOOR HANDLE

53 7218271

  • 7218271 - PIN

54 6918679

  • 6918679 - PLUG

55 6918739

  • 6918739 - SEAL

56 6918740

  • 6918740 - SEAL

57 6918741

  • 6918741 - REAR GLASS

58 68952-1

  • 68952-1 - PLUG

59 6908791

  • 6908791 - WINDOW
  • DOOR CAB

60 6919226

  • 6919226 - DOOR

61 6919330

  • 6919330 - FIXING PLATE

62 6920174

  • 6920174 - COVER

63 7233287

  • 7233287 - WASHER

64 6971546

  • 6971546 - WINDSHIELD

65 6971550

  • 6971550 - WINDOW
  • CAB TOP

66 6918862

  • 6918862 - BOX FILTER

67 01664-2

  • 01664-2 - NUT
  • HM4

68 6910502

  • 6910502 - FILTER

69 6910503

  • 6910503 - FILTER BOX

70 6910504

  • 6910504 - SEAL

71 6910505

  • 6910505 - SCREW

72 6910929

  • 6910929 - INTERNAL GRID

73 6910936

  • 6910936 - WASHER JZC4

74 6917353

  • 6917353 - HINGE

75 6927302

  • 6927302 - SPACER
