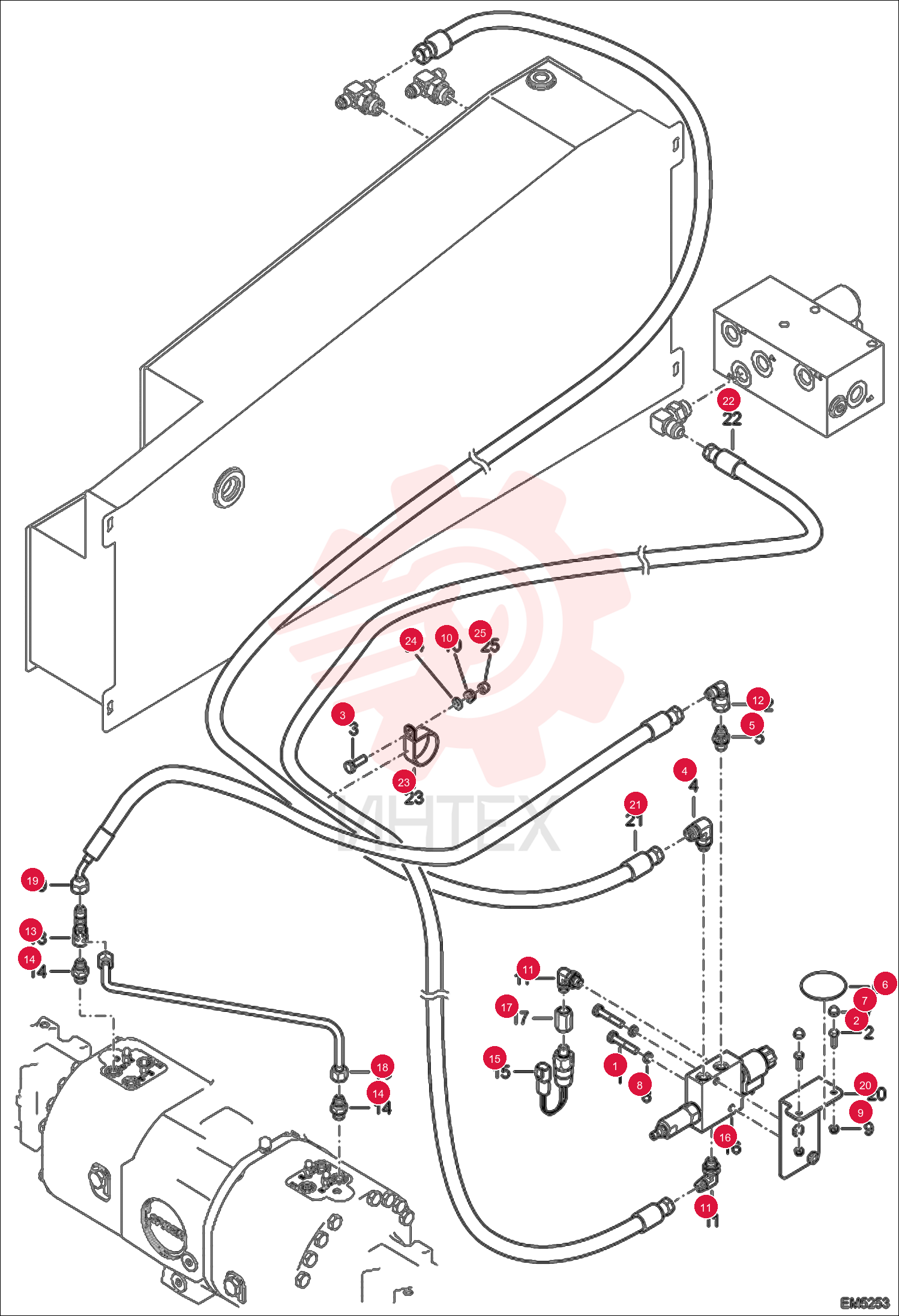

SCREW 01579-2 (6)

SCREW 01579-2 (6)

SCREW 01579-2 (6)

1 01579-2

  • 01579-2 - SCREW

2 01591-7

  • 01591-7 - SCREW

3 4CM820

  • 4CM820 - SCREW HEX HD 8.8

4 015370-13R

  • 015370-13R - UNION

5 022375-31Z

  • 022375-31Z - UNION

6 60201-1

  • 60201-1 - PLUG

7 63332-1

  • 63332-1 - CAP

8 89519-3

  • 89519-3 - WASHER

9 100345-06W

  • 100345-06W - NUT

10 01681-6

  • 01681-6 - NUT

11 100370-18C

  • 100370-18C - ELBOW PIECE

12 100370-29P

  • 100370-29P - ELBOW PIECE

13 100372-06G

  • 100372-06G - UNION

14 90289-0

  • 90289-0 - UNION

15 6938297

  • 6938297 - SWITCH
  • PRESSURE

16 6916596

  • 6916596 - BLOCK

17 6916745

  • 6916745 - UNION

18 6920559

  • 6920559 - HYDRAULIC PIPE

19 6920570

  • 6920570 - HOSE

20 6921236

  • 6921236 - SUPPORT

21 6921253

  • 6921253 - HOSE

22 6921414

  • 6921414 - HOSE

23 30H84

  • 30H84 - CLAMP

24 000350-20Q

  • 000350-20Q - WASHER

25 7233284

  • 7233284 - CAP
  • NUT
