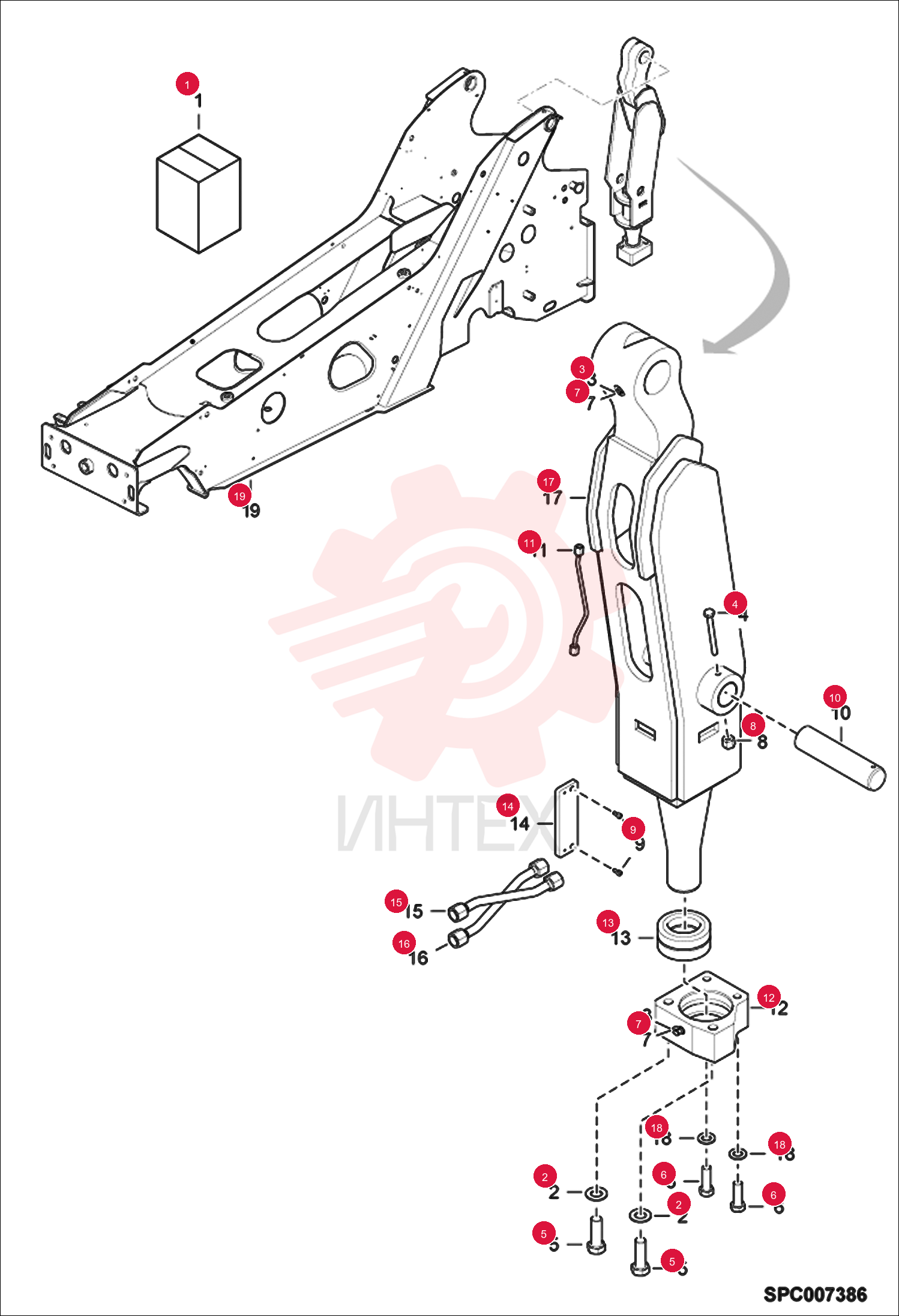

KIT FRAME AND CRADLE 6922446 (1)

KIT FRAME AND CRADLE 6922446 (1)

KIT FRAME AND CRADLE 6922446 (1)

1 6922446

  • 6922446 - KIT FRAME AND CRADLE

2 000350-08C

  • 000350-08C - WASHER

3 01775-6

  • 01775-6 - GREASE NIPPLE

4 7CM10100

  • 7CM10100 - SCREW HEX HD 10.9

5 84992-7

  • 84992-7 - SCREW

6 84997-6

  • 84997-6 - SCREW HM16-50/50 CL10.9 ZJ8

7 98581-2

  • 98581-2 - LUBRICATOR COVER

8 7252655

  • 7252655 - NUT LOCK

9 6918271

  • 6918271 - SCREW

10 6919005

  • 6919005 - PIN

11 6921480

  • 6921480 - HYDRAULIC PIPE

12 6977787

  • 6977787 - SUPPORT

13 6977789

  • 6977789 - KNEE JOINT

14 6977791

  • 6977791 - PLATE

15 6977792

  • 6977792 - PIPE

16 6977793

  • 6977793 - PIPE

17 6977794

  • 6977794 - CRADLE (AXLE) NSS

18 000350-06A

  • 000350-06A - WASHER

19 6921137

  • 6921137 - FRAME
