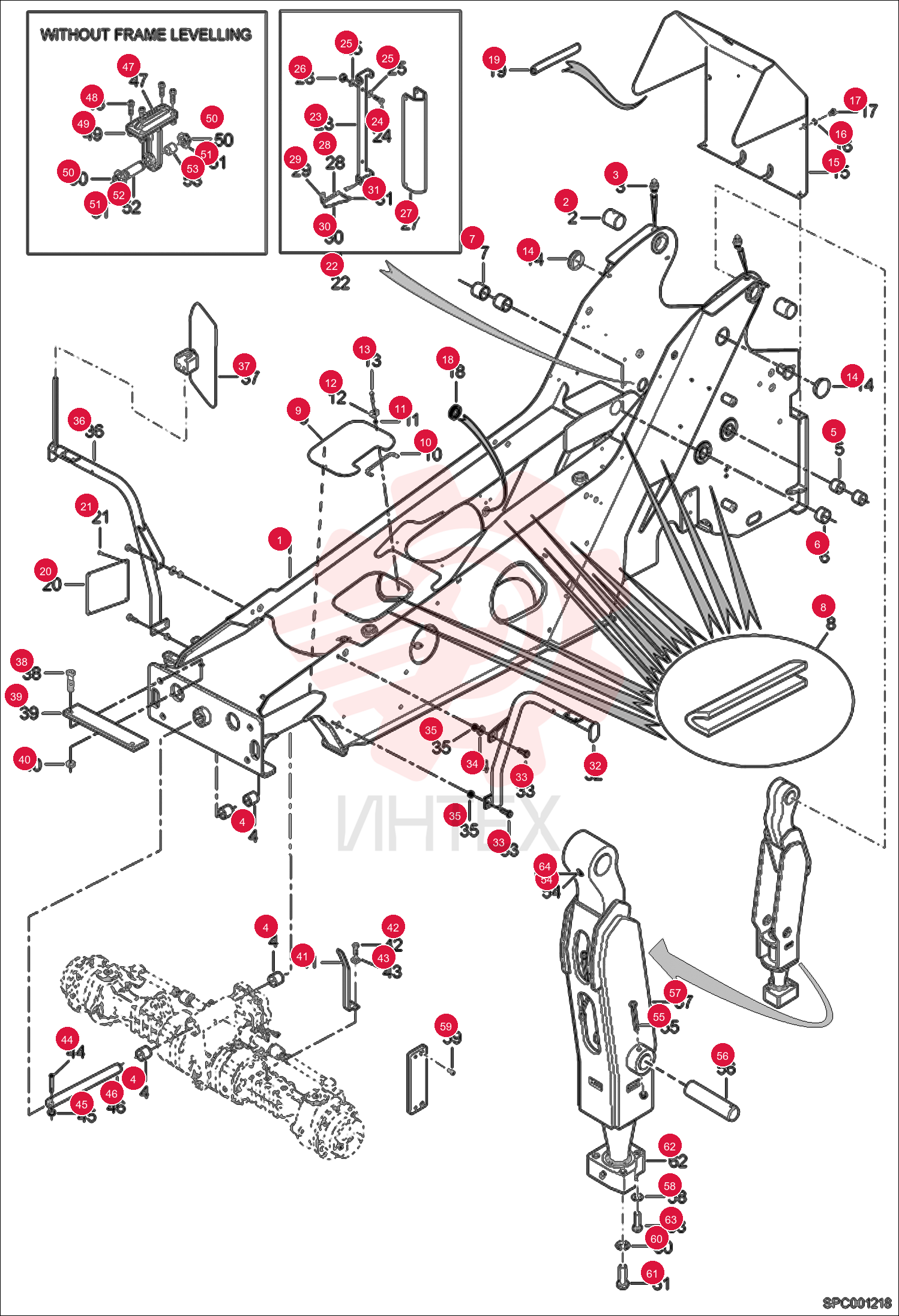

FRAME 6918216

FRAME 6918216

FRAME 6918216

1 6918216

  • 6918216 - FRAME

2 7213359

  • 7213359 - BEARING SWING ID70L80

3 01775-6

  • 01775-6 - GREASE NIPPLE

4 7229363

  • 7229363 - GASKET
  • BULK

5 6909439

  • 6909439 - BUSHING

6 7213158

  • 7213158 - LINK BEARING ID60 L40

7 70811-5

  • 70811-5 - BUSHING BEARING 50X55 L 50

8 7229363

  • 7229363 - GASKET
  • BULK

9 79123-6

  • 79123-6 - PLATE

10 79129-3

  • 79129-3 - SEAL

11 13415-5

  • 13415-5 - WASHER

12 79124-4

  • 79124-4 - NUT

13 010338-02X

  • 010338-02X - SCREW

14 6909712

  • 6909712 - HYDRAULIC OPERATION

15 6914638

  • 6914638 - BONNET REAR

16 01719-4

  • 01719-4 - WASHER

17 01604-8

  • 01604-8 - SCREW

18 79288-7

  • 79288-7 - GROMMET ASM56-38-46-10

19 7196170

  • 7196170 - GASKET

20 6916450

  • 6916450 - RIVET

21 6912354

  • 6912354 - RAM ABUTMENT ASSY

22 96344-7

  • 96344-7 - STOP

23 4CM825

  • 4CM825 - BOLT HEX HEAD

24 01697-2

  • 01697-2 - WASHER

25 01681-6

  • 01681-6 - NUT

26 96338-9

  • 96338-9 - STOP

27 7215740

  • 7215740 - PIN
  • LOCK

28 7168942

  • 7168942 - RING

29 7215741

  • 7215741 - CHAIN

30 95218-4

  • 95218-4 - PIN

31 6915265

  • 6915265 - SUPPORT LIGHT LH

32 1CM1035

  • 1CM1035 - BOLT

33 000350-21R

  • 000350-21R - WASHER

34 7252655

  • 7252655 - NUT LOCK

35 6915264

  • 6915264 - SUPPORT LIGHT RH

36 100432-51C

  • 100432-51C - MIRROR
  • SIDE REAR

37 1CM1040

  • 1CM1040 - BOLT

38 6913019

  • 6913019 - ARM ABUTMENT

39 7252655

  • 7252655 - NUT LOCK

40 7249740

  • 7249740 - PLATE

41 01604-8

  • 01604-8 - SCREW

42 92210-4

  • 92210-4 - WASHER

43 7CM10100

  • 7CM10100 - SCREW HEX HD 10.9

44 7252655

  • 7252655 - NUT LOCK

45 7247000

  • 7247000 - PIN

46 6915401

  • 6915401 - CONNECTING ROD

47 53925-4

  • 53925-4 - SCREW

48 7245395

  • 7245395 - NUT LOCK

49 5JM40

  • 5JM40 - SNAPRING

50 7308913

  • 7308913 - WASHER FLAT

51 7245021

  • 7245021 - PIN CYLINDER

52 77192-3

  • 77192-3 - BUSH

53 98581-2

  • 98581-2 - LUBRICATOR COVER

54 7CM10100

  • 7CM10100 - SCREW HEX HD 10.9

55 6919005

  • 6919005 - PIN

56 6977794

  • 6977794 - CRADLE (AXLE) NSS

57 000350-06A

  • 000350-06A - WASHER

58 6977789

  • 6977789 - KNEE JOINT

59 000350-08C

  • 000350-08C - WASHER

60 84992-7

  • 84992-7 - SCREW

61 6977787

  • 6977787 - SUPPORT

62 84997-6

  • 84997-6 - SCREW HM16-50/50 CL10.9 ZJ8

63 01775-6

  • 01775-6 - GREASE NIPPLE
