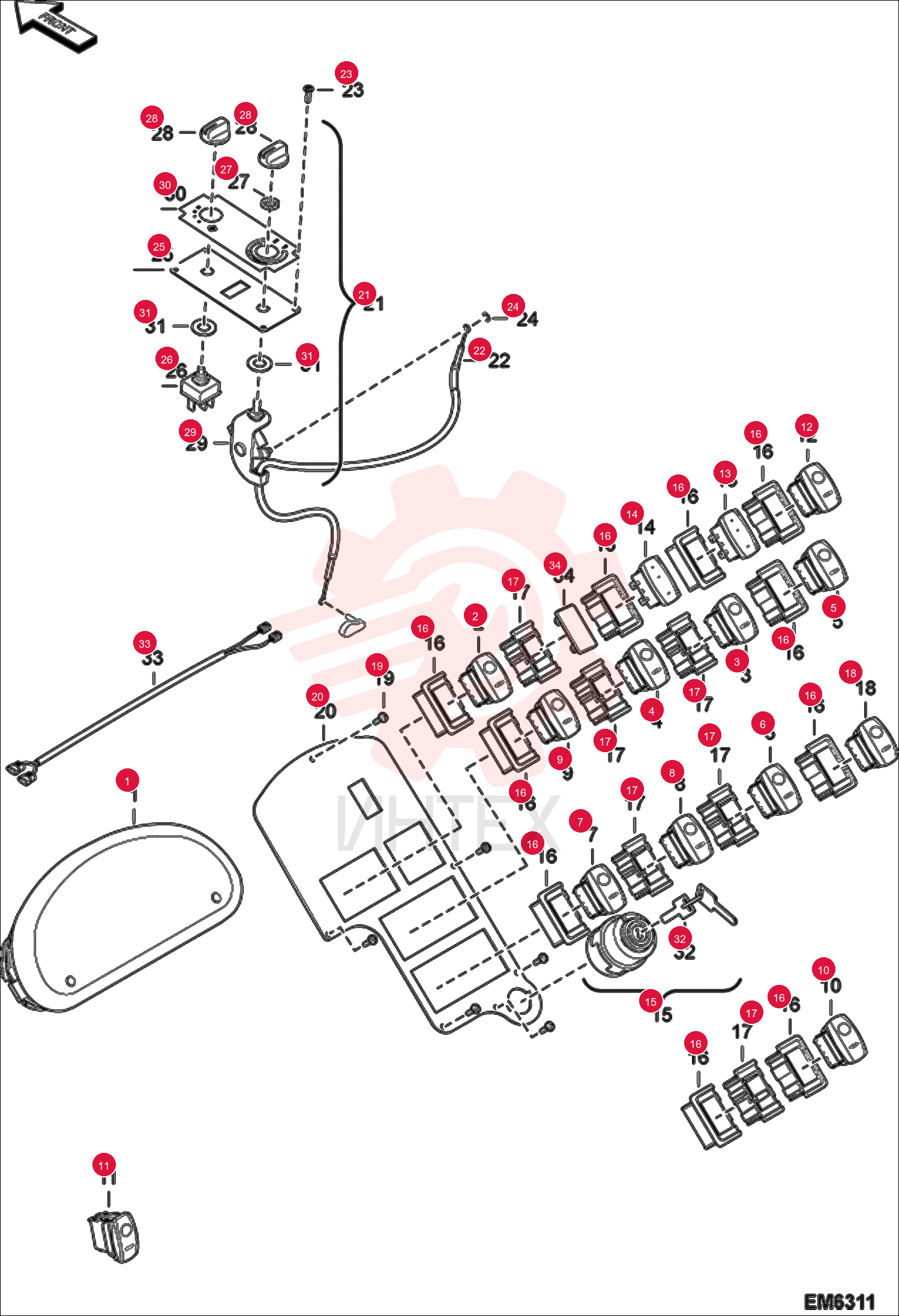

INSTRUMENT PANEL 6927486

INSTRUMENT PANEL 6927486

INSTRUMENT PANEL 6927486

1 6927486

  • 6927486 - INSTRUMENT PANEL

2 6933405

  • 6933405 - DISPLAY

3 6927711

  • 6927711 - SWITCH
  • WORK MODE

4 6927715

  • 6927715 - SWITCH
  • FOG LIGHT

5 6927716

  • 6927716 - SWITCH
  • WORK LIGHT

6 7172095

  • 7172095 - SWITCH ROCKER

7 6927720

  • 6927720 - SWITCH
  • REAR WIPER

8 6927722

  • 6927722 - SWITCH
  • ACTIVATION TOOL

9 6927723

  • 6927723 - SWITCH
  • PERMANENT FLOW

10 6927726

  • 6927726 - SWITCH
  • ROAD LIGHT

11 6927727

  • 6927727 - SWITCH
  • JOYSTICK

12 7172096

  • 7172096 - SWITCH ROCKER

13 6927730

  • 6927730 - SWITCH
  • DIRECTION

14 6927743

  • 6927743 - INDICATOR
  • DIRECTION

15 6927746

  • 6927746 - INDICATOR
  • WINCH

16 6928151

  • 6928151 - SWITCH
  • IGNITION (WITHOUT CAP)

17 7178511

  • 7178511 - SOCKET
  • END

18 7178512

  • 7178512 - SOCKET
  • INTERMEDIATE

19 6927718

  • 6927718 - SWITCH
  • ROOF WIPER

20 7198946

  • 7198946 - SCREW

21 6927980

  • 6927980 - PLATE
  • INTRUMENT PANEL US

22 7217350

  • 7217350 - PANEL
  • CONTROL

23 7217231

  • 7217231 - CABLE

24 7198946

  • 7198946 - SCREW

25 7229422

  • 7229422 - WASHER

26 7015437

  • 7015437 - CONTROL PLATE

27 6675176

  • 6675176 - SWITCH

28 7015436

  • 7015436 - JAM NUT

29 6675177

  • 6675177 - KNOB

30 6676622

  • 6676622 - CONTROL

31 7015435

  • 7015435 - OVERPLAY

32 7010693

  • 7010693 - WASHER

33 6926414

  • 6926414 - SET OF KEYS

34 6928155

  • 6928155 - DISPLAY HARNESS

35 7178513

  • 7178513 - CAP
  • SOCKET
