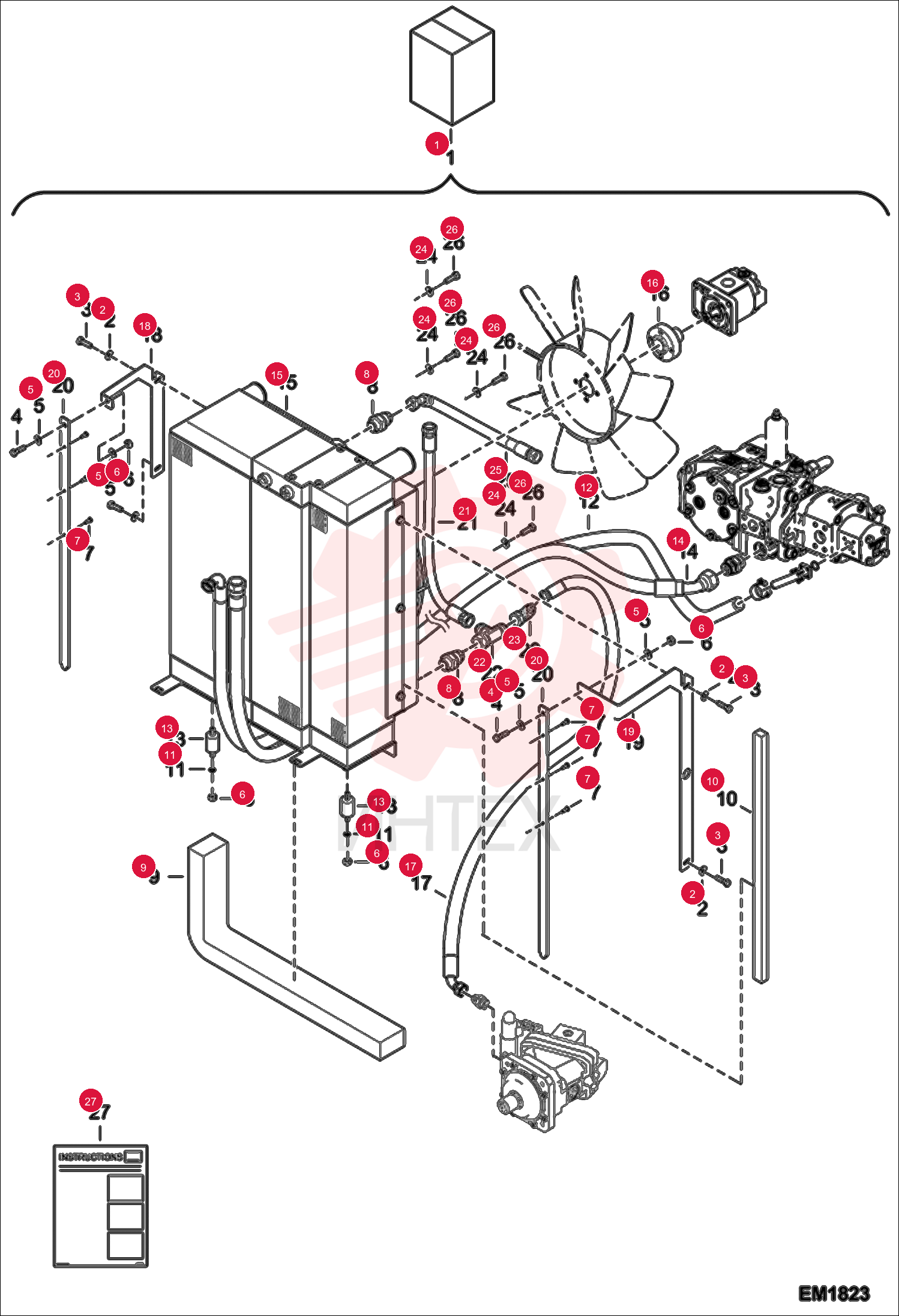

EXTRA COOLING KIT (FULL KIT) 6928204

EXTRA COOLING KIT (FULL KIT) 6928204

EXTRA COOLING KIT (FULL KIT) 6928204

1 6928204

  • 6928204 - EXTRA COOLING KIT (FULL KIT)

2 000350-01U

  • 000350-01U - WASHER

3 01591-7

  • 01591-7 - SCREW

4 4CM820

  • 4CM820 - SCREW HEX HD 8.8

5 01697-2

  • 01697-2 - WASHER

6 53DM8

  • 53DM8 - NUT HX THDLK PREAPPL

7 66679-2

  • 66679-2 - RIVET

8 85170-9

  • 85170-9 - UNION 1.5/16JIC 1 BSP

9 88394-2

  • 88394-2 - ADHESIVE SPONGE

10 88395-9

  • 88395-9 - ADHESIVE SPONGE

11 1EM80

  • 1EM80 - WASHER PLAIN

12 6910602

  • 6910602 - HOSE TJ1.5/16 25.4 L1980 P185B

13 6910966

  • 6910966 - BUSHING
  • RUBBER
  • RADIATOR

14 6913204

  • 6913204 - HOSE

15 6933947

  • 6933947 - RADIATOR

16 6927924

  • 6927924 - HOSE

17 6927964

  • 6927964 - BRACKET
  • CONDENSER

18 6927965

  • 6927965 - BRACKET
  • CONDENSER

19 6927966

  • 6927966 - BRACKET
  • CONDENSER

20 6928048

  • 6928048 - HOSE

21 12K10

  • 12K10 - FITTING

22 13K10

  • 13K10 - TEE

23 6932420

  • 6932420 - SPACER

24 6927903

  • 6927903 - HOSE

25 4CM825

  • 4CM825 - BOLT HEX HEAD

26 6989573

  • 6989573 - INSTRUCTIONS
