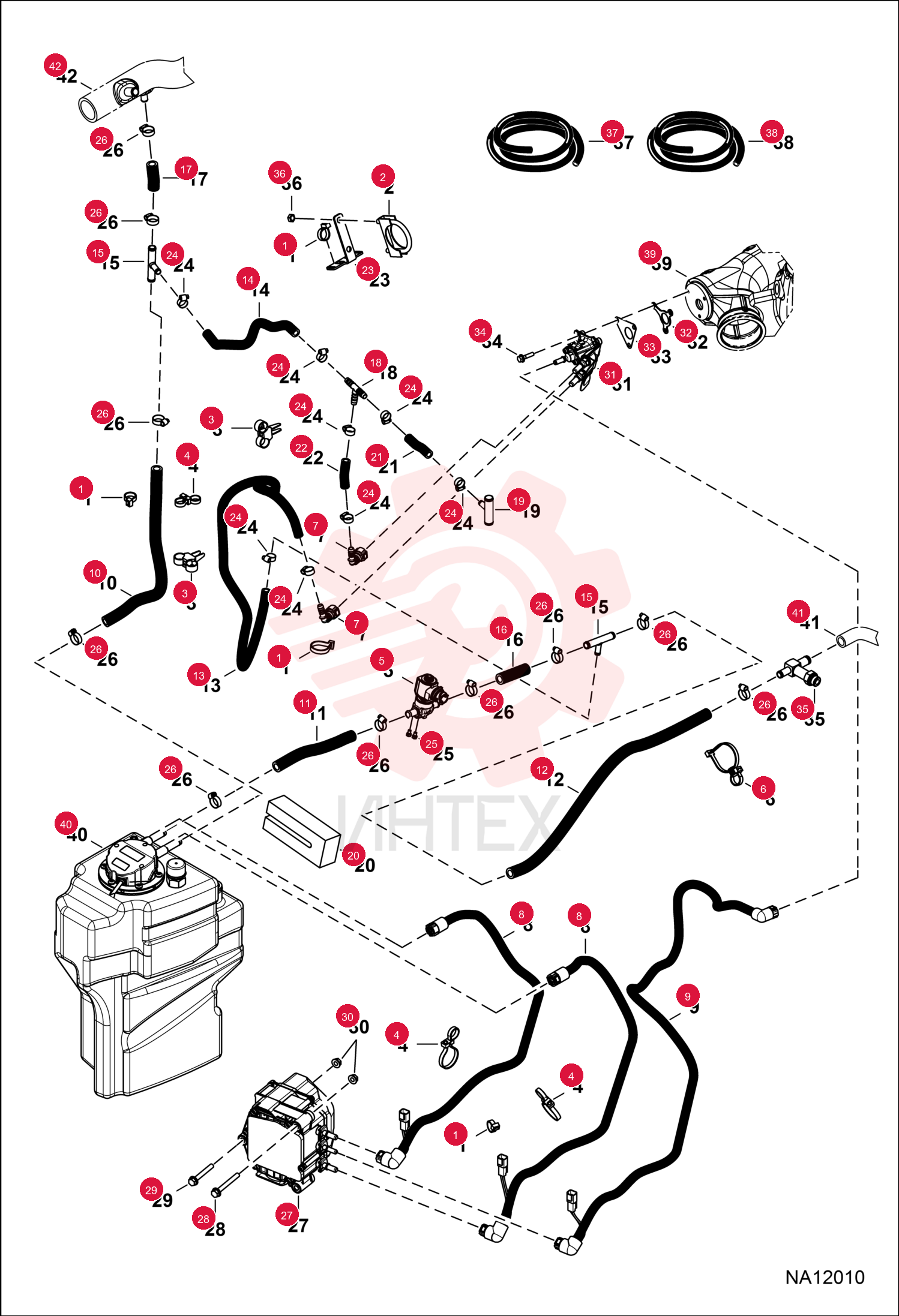

STRAP, TIE 6624289 (3)

STRAP, TIE 6624289 (3)

STRAP, TIE 6624289 (3)

1 6624289

  • 6624289 - STRAP
  • TIE

2 7301516

  • 7301516 - CLAMP

3 6678668

  • 6678668 - STRAP

4 7221316

  • 7221316 - STRAP
  • TIE DUAL

5 7222609

  • 7222609 - VALVE
  • COOLANT

6 7231699

  • 7231699 - STRAP
  • DOUBLE

7 7245296

  • 7245296 - FITTING
  • ELBOW

8 7342742

  • 7342742 - HOSE DEF SUCTION

9 7342743

  • 7342743 - HOSE DEF RETURN

10 7261459

  • 7261459 - FITTING TEE

11 7305367

  • 7305367 - TEE UNION

12 7297114

  • 7297114 - FOAM

13 7307074

  • 7307074 - PLATE

14 42HS04

  • 42HS04 - CLAMP HOSE TYPE M

15 1CM508

  • 1CM508 - SCREW

16 42HS06

  • 42HS06 - CLAMP

17 7220662

  • 7220662 - PUMP
  • DIESEL EXHAUST FLUID

18 29CM870

  • 29CM870 - BOLT

19 29CM860

  • 29CM860 - BOLT

20 43DM8

  • 43DM8 - NUT FLANGED HEX

21 7256777

  • 7256777 - GASKET

22 7248682

  • 7248682 - MODULE
  • DOSING

23 7251751

  • 7251751 - GASKET

24 7251752

  • 7251752 - SHIELD
  • HEAT

25 29CM625

  • 29CM625 - SCREW FLGD HEX CAP

26 79K8

  • 79K8 - O RING 10

27 7261460

  • 7261460 - FITTING HYDRAULIC

28 6565977

  • 6565977 - HOSE HEATER BULK

29 7244584

  • 7244584 - HOSE
  • RUBBER
