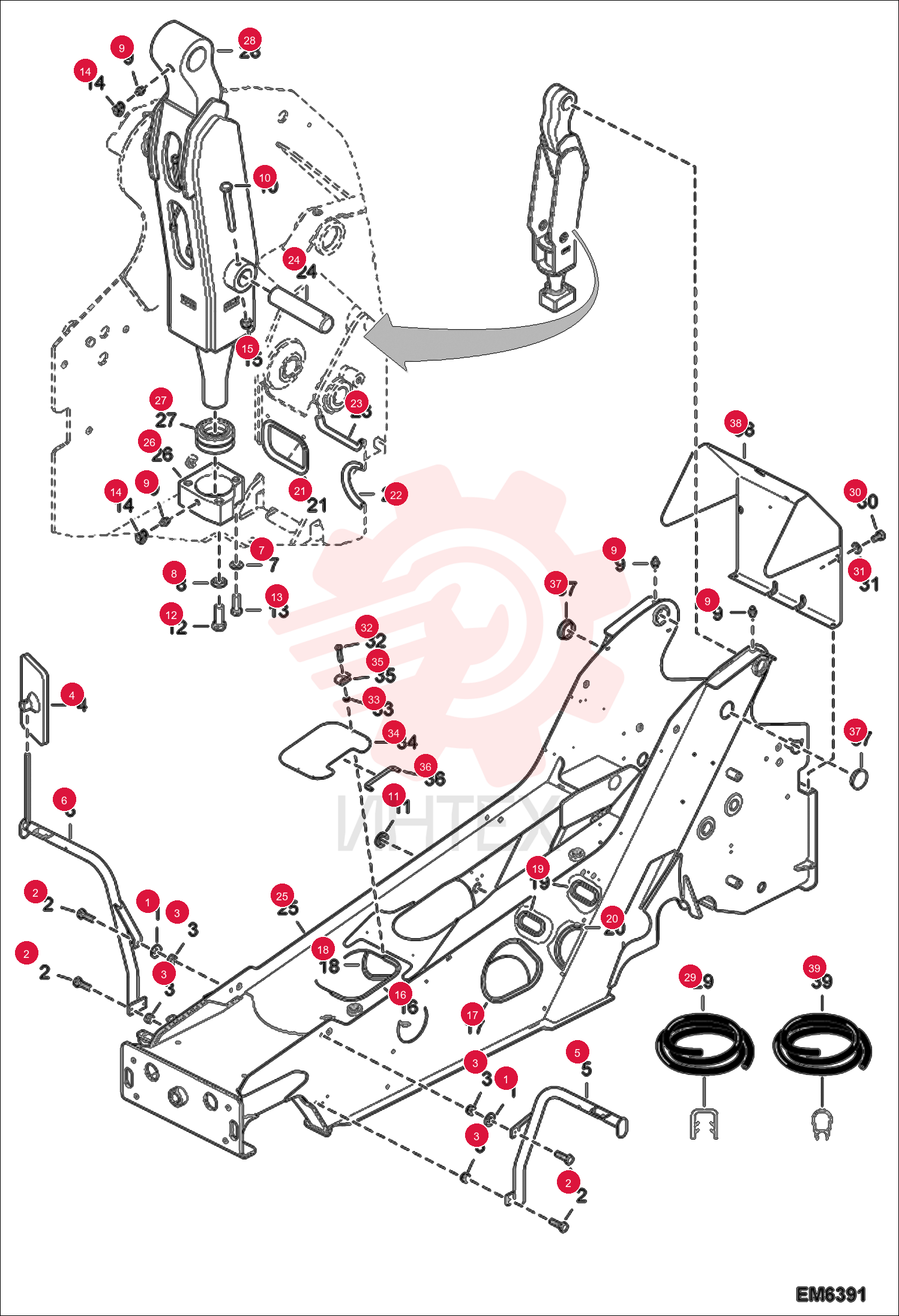

WASHER 000350-21R

WASHER 000350-21R

WASHER 000350-21R

1 000350-21R

  • 000350-21R - WASHER

2 1CM1035

  • 1CM1035 - BOLT

3 7252655

  • 7252655 - NUT LOCK

4 100432-51C

  • 100432-51C - MIRROR
  • SIDE REAR

5 6915265

  • 6915265 - SUPPORT LIGHT LH

6 6934741-B

  • 6934741-B - LIGHT SUPPORT
  • RH

7 000350-06A

  • 000350-06A - WASHER

8 000350-08C

  • 000350-08C - WASHER

9 01775-6

  • 01775-6 - GREASE NIPPLE

10 7CM10100

  • 7CM10100 - SCREW HEX HD 10.9

11 79288-7

  • 79288-7 - GROMMET ASM56-38-46-10

12 84992-7

  • 84992-7 - SCREW

13 84997-6

  • 84997-6 - SCREW HM16-50/50 CL10.9 ZJ8

14 98581-2

  • 98581-2 - LUBRICATOR COVER

15 7252655

  • 7252655 - NUT LOCK

16 6919005

  • 6919005 - PIN

17 6921137

  • 6921137 - FRAME

18 6977787

  • 6977787 - SUPPORT

19 6977789

  • 6977789 - KNEE JOINT

20 6977794

  • 6977794 - CRADLE (AXLE) NSS

21 6910276

  • 6910276 - BEAD L610

22 01604-8

  • 01604-8 - SCREW

23 01719-4

  • 01719-4 - WASHER

24 010338-02X

  • 010338-02X - SCREW

25 13415-5

  • 13415-5 - WASHER

26 79123-6

  • 79123-6 - PLATE

27 79124-4

  • 79124-4 - NUT

28 6909712

  • 6909712 - HYDRAULIC OPERATION

29 6914638

  • 6914638 - BONNET REAR

30 79129-3

  • 79129-3 - SEAL
