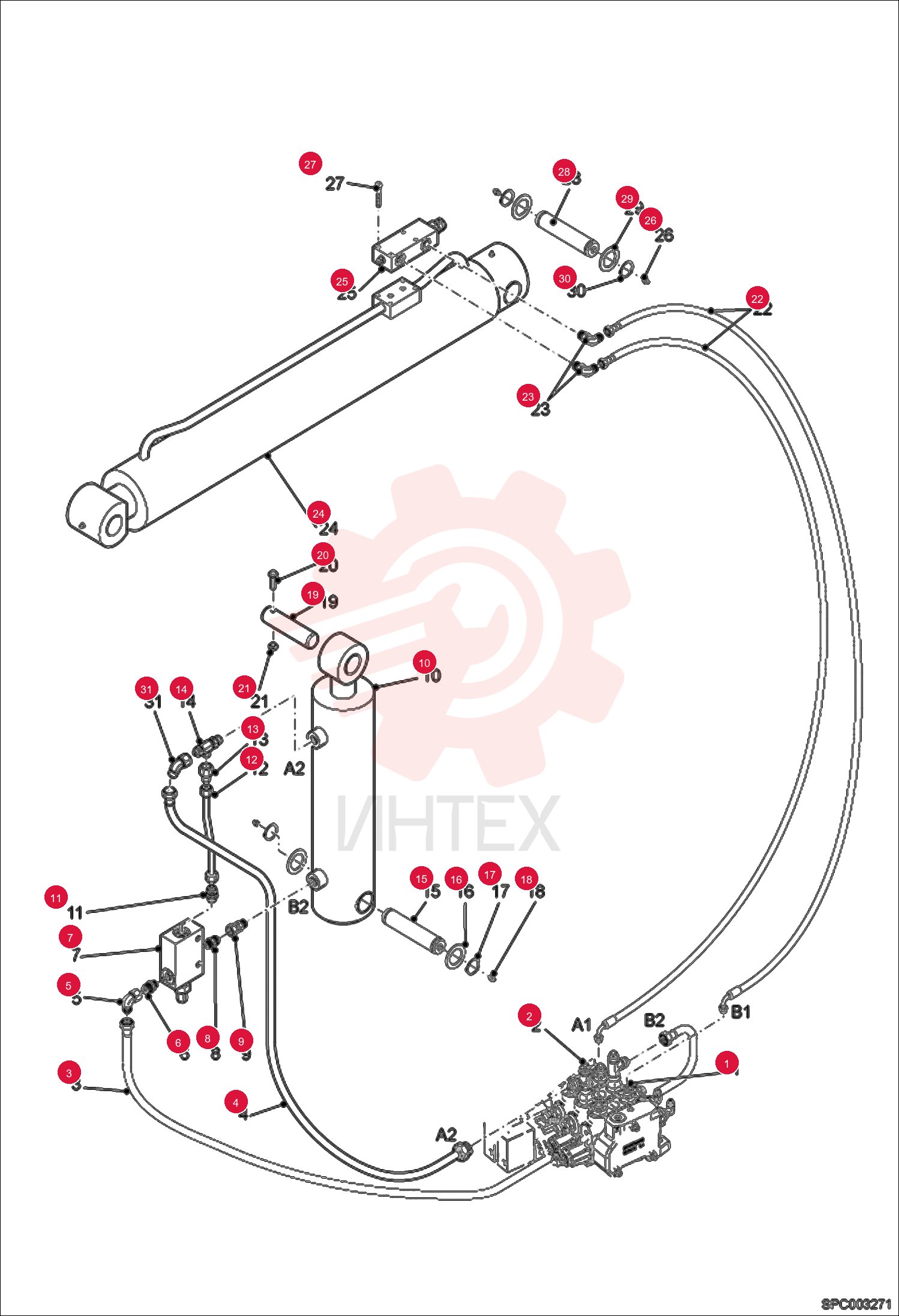

UNION 7/8 JIC 3/4 BSPP 014375-02C (2)

UNION 7/8 JIC 3/4 BSPP 014375-02C (2)

UNION 7/8 JIC 3/4 BSPP 014375-02C (2)

1 014375-02C

  • 014375-02C - UNION 7/8 JIC 3/4 BSPP

2 008372-28F

  • 008372-28F - UNION

3 83933-2

  • 83933-2 - HOSE

4 6909253

  • 6909253 - HOSE TJ 7/8 12
  • 7 TJ45 7/8 L1070

5 010370-90W

  • 010370-90W - ELBOW PIECE

6 100375-39T

  • 100375-39T - UNION 7/8 JIC 3/8 BSP

7 7168745

  • 7168745 - VALVE
  • BALANCING

8 100375-39T

  • 100375-39T - UNION 7/8 JIC 3/8 BSP

9 7225156

  • 7225156 - FITTING
  • HYD

10 65614-0

  • 65614-0 - UNION

11 6922052

  • 6922052 - PIPE

12 65641-3

  • 65641-3 - ADAPTER

13 100372-08J

  • 100372-08J - T PIECE

14 6926279

  • 6926279 - ROD

15 009456-02D

  • 009456-02D - WASHER

16 5JM50

  • 5JM50 - CIRCLIPS

17 01775-6

  • 01775-6 - GREASE NIPPLE

18 1HM10

  • 1HM10 - FTG GREASE STRAIGHT

19 77425-7

  • 77425-7 - PIN
  • COTTER

20 7CM10100

  • 7CM10100 - SCREW HEX HD 10.9

21 7252655

  • 7252655 - NUT LOCK

22 96788-5

  • 96788-5 - HOSE

23 7244882

  • 7244882 - FITTING HYDRAULIC

24 90774-1

  • 90774-1 - CYLINDER
  • LIFT

25 6918850

  • 6918850 - VALVE
  • SAFETY

26 01775-6

  • 01775-6 - GREASE NIPPLE

27 1HM10

  • 1HM10 - FTG GREASE STRAIGHT

28 6GM840

  • 6GM840 - SCREW

29 6926278

  • 6926278 - ROD

30 009456-02D

  • 009456-02D - WASHER

31 5JM50

  • 5JM50 - CIRCLIPS

32 65658-7

  • 65658-7 - EQUERRE
