Bobcat
/
V723
/

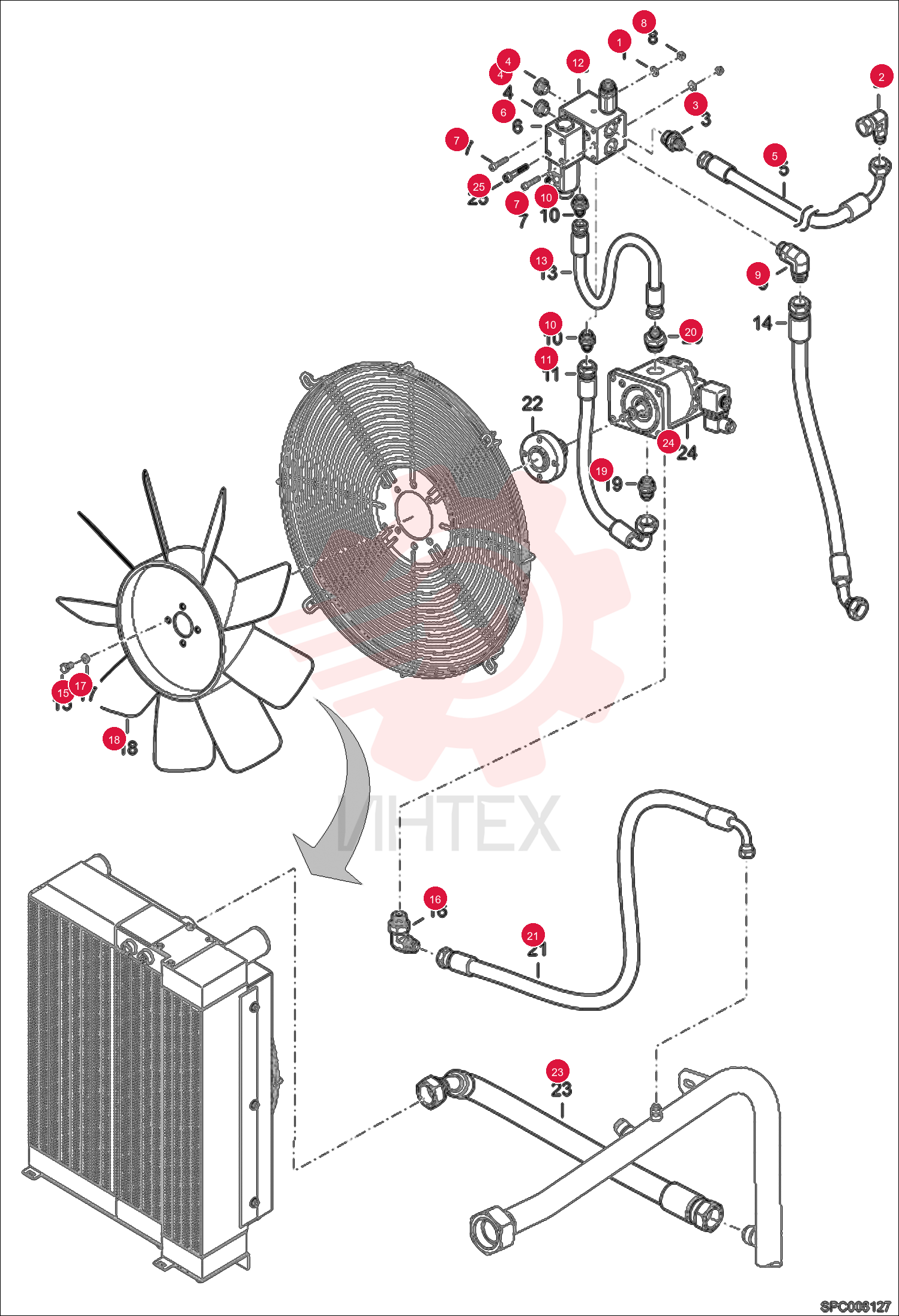

WASHER 01696-4

WASHER 01696-4

WASHER 01696-4

1 01696-4

  • 01696-4 - WASHER

2 008372-01B

  • 008372-01B - ELBOW PIECE

3 7239254

  • 7239254 - FITTING

4 78743-2

  • 78743-2 - PLUG

5 94992-5

  • 94992-5 - HOSE

6 98355-1

  • 98355-1 - ELECTRODISTRIBUTOR

7 98897-2

  • 98897-2 - SCREW

8 7248549

  • 7248549 - NUT

9 100370-05N

  • 100370-05N - ELBOW UNION

10 7229423

  • 7229423 - FITTING

11 6911028

  • 6911028 - HOSE

12 6917718

  • 6917718 - PRESSURE SWITCH

13 6918314

  • 6918314 - HOSE

14 4CM816

  • 4CM816 - SCREW HEX HD 8.8

15 010370-93A

  • 010370-93A - ELBOW PIECE

16 89519-3

  • 89519-3 - WASHER

17 7101769

  • 7101769 - FAN

18 100375-40U

  • 100375-40U - UNION

19 100375-59Q

  • 100375-59Q - UNION 3/4 JIC 3/4 BSP

20 6910622

  • 6910622 - HOSE TJ3/4 9.5 TJ90 9/16 L800

21 6913654

  • 6913654 - HOSE

22 6927903

  • 6927903 - HOSE

23 6916978

  • 6916978 - HYDRAULIC MOTOR

24 79160-8

  • 79160-8 - SCREW
