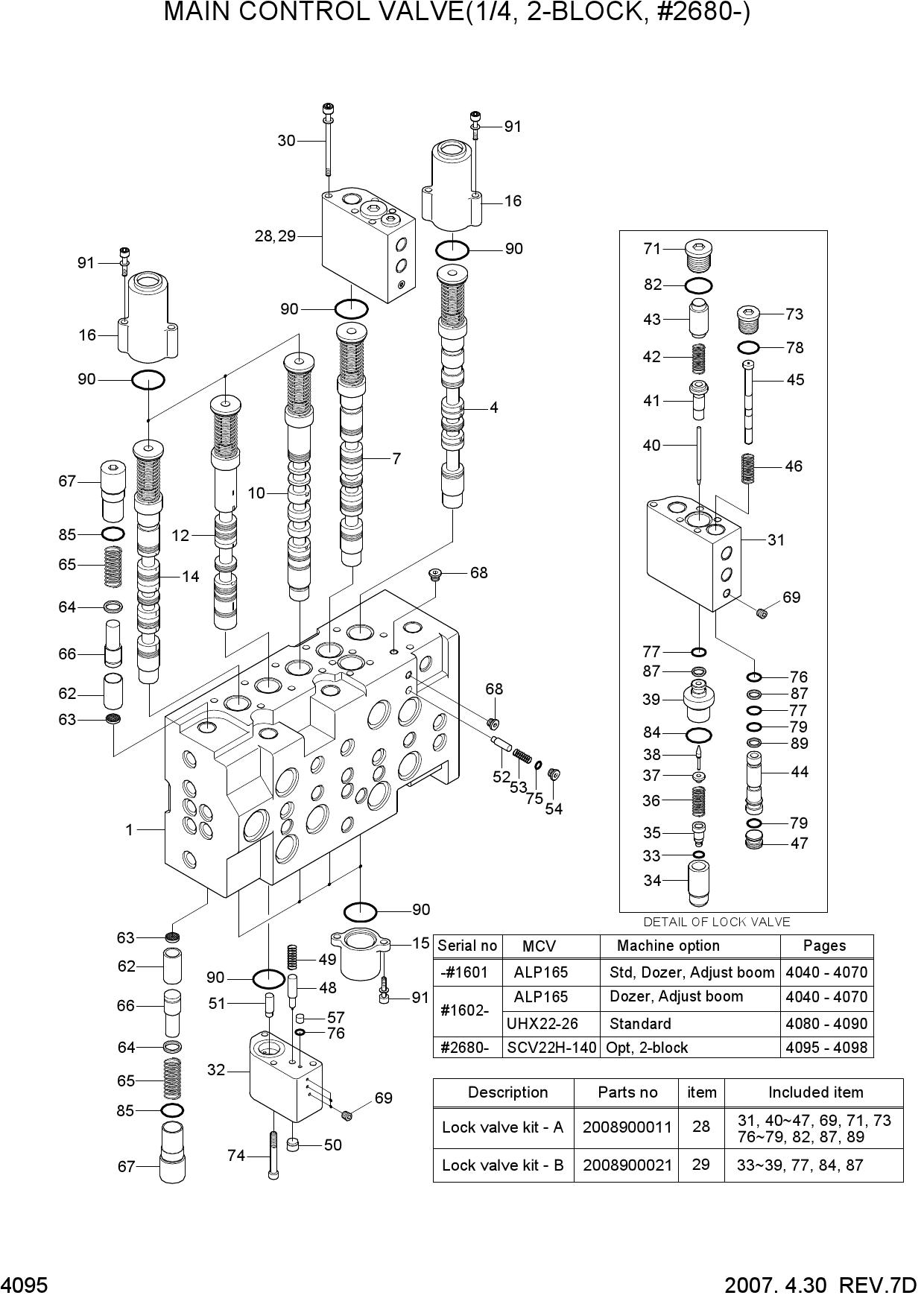

MAIN CONTROL VALVE(1/4, 2-BLOCK,#2680-)
1 XKBF-00953
- XKBF-00953 - SPOOL ASSY-TRAVEL 1
- Поз.: 4
2 XKBF-00878
- XKBF-00878 - SPOOL ASSY
- Поз.: 7
3 XKBF-00881
- XKBF-00881 - SPOOL ASSY
- Поз.: 10
4 XKBF-00883
- XKBF-00883 - SPOOL ASSY
- Поз.: 12
5 XKBF-00885
- XKBF-00885 - SPOOL ASSY
- Поз.: 14
6 XKBF-00886
- XKBF-00886 - COVER A-PILOT
- Поз.: 15
7 XKBF-00887
- XKBF-00887 - COVER B1-PILOT
- Поз.: 16
8 XKBF-00901
- XKBF-00901 - BLOCK-HOLDING
- Поз.: 31
9 XKBF-00910
- XKBF-00910 - PISTON 1
- Поз.: 40
10 XKBF-00911
- XKBF-00911 - GUIDE-PISTON
- Поз.: 41
11 XKBF-00912
- XKBF-00912 - SPRING 1
- Поз.: 42
12 XKBF-00913
- XKBF-00913 - PISTON 2
- Поз.: 43
13 XKBF-00914
- XKBF-00914 - SLEEVE
- Поз.: 44
14 XKBF-00915
- XKBF-00915 - SPOOL
- Поз.: 45
15 XKBF-00793
- XKBF-00793 - STOPPER
- Поз.: 47
16 XKBF-00728
- XKBF-00728 - PLUG
- Поз.: 69
17 XKBF-00845
- XKBF-00845 - PLUG
- Поз.: 71
18 XKBF-00934
- XKBF-00934 - PLUG
- Поз.: 73
19 XKBF-00937
- XKBF-00937 - O-RING
- Поз.: 76
20 XKBF-00958
- XKBF-00958 - O-RING
- Поз.: 77
21 XKBF-00615
- XKBF-00615 - O-RING
- Поз.: 78
22 XKBF-00939
- XKBF-00939 - O-RING
- Поз.: 79
23 XKBF-00618
- XKBF-00618 - O-RING
- Поз.: 82
24 XKBF-00962
- XKBF-00962 - RING-BACK UP
- Поз.: 87
25 XKBF-00964
- XKBF-00964 - RING-BACK UP
- Поз.: 89
26 XKBF-00903
- XKBF-00903 - C-RING
- Поз.: 33
27 XKBF-00905
- XKBF-00905 - RESTRICTOR-LOCK VLV
- Поз.: 35
28 XKBF-00906
- XKBF-00906 - SPRING
- Поз.: 36
29 XKBF-00907
- XKBF-00907 - GUIDE-POPPET
- Поз.: 37
30 XKBF-00908
- XKBF-00908 - POPPET-PILOT
- Поз.: 38
31 XKBF-00909
- XKBF-00909 - SEAT-POPPET
- Поз.: 39
32 XKBF-00958
- XKBF-00958 - O-RING
- Поз.: 77
33 XKBF-00943
- XKBF-00943 - O-RING
- Поз.: 84
34 XKBF-00962
- XKBF-00962 - RING-BACK UP
- Поз.: 87
35 XKBF-00900
- XKBF-00900 - BOLT-SOCKET HEAD
- Поз.: 30
36 XKBF-00902
- XKBF-00902 - BLOCK-REGEN
- Поз.: 32
37 XKBF-00917
- XKBF-00917 - SPOOL-REGEN SELECTOR
- Поз.: 48
38 XKBF-00918
- XKBF-00918 - SPRING-REGEN
- Поз.: 49
39 XKBF-00919
- XKBF-00919 - STOPPER-REGEN
- Поз.: 50
40 XKBF-00920
- XKBF-00920 - PISTON-CUT OFF
- Поз.: 51
41 XKBF-00732
- XKBF-00732 - POPPET-CHECK
- Поз.: 52
42 XKBF-00733
- XKBF-00733 - SPRING-CHECK
- Поз.: 53
43 XKBF-00921
- XKBF-00921 - PLUG
- Поз.: 54
44 XKBF-00401
- XKBF-00401 - ORIFICE-PLUG
- Поз.: 57
45 3902500970
- 3902500970 - POPPET-NEGATIVE
- Поз.: 62
46 XKBF-00926
- XKBF-00926 - FILTER-COIN TYPE
- Поз.: 63
47 XKBF-00927
- XKBF-00927 - SEAT-SPRING
- Поз.: 64
48 XKBF-00928
- XKBF-00928 - SPRING-NEGATIVE
- Поз.: 65
49 XKBF-00929
- XKBF-00929 - PISTON-NEGATIVE
- Поз.: 66
50 XKBF-00930
- XKBF-00930 - SOCKET-NEGATIVE
- Поз.: 67
51 XKBF-00931
- XKBF-00931 - PLUG
- Поз.: 68
52 XKBF-00728
- XKBF-00728 - PLUG
- Поз.: 69
53 XKBF-00935
- XKBF-00935 - BOLT-SOCKET HEAD
- Поз.: 74
54 XKBF-00936
- XKBF-00936 - O-RING
- Поз.: 75
55 XKBF-00937
- XKBF-00937 - O-RING
- Поз.: 76
56 XKBF-00958
- XKBF-00958 - O-RING
- Поз.: 77
57 XKBF-00939
- XKBF-00939 - O-RING
- Поз.: 79
58 XKBF-00944
- XKBF-00944 - O-RING
- Поз.: 85
59 XKBF-00949
- XKBF-00949 - O-RING
- Поз.: 90
60 S107-060404
- S107-060404 - BOLT-SOCKET
- Поз.: 91
