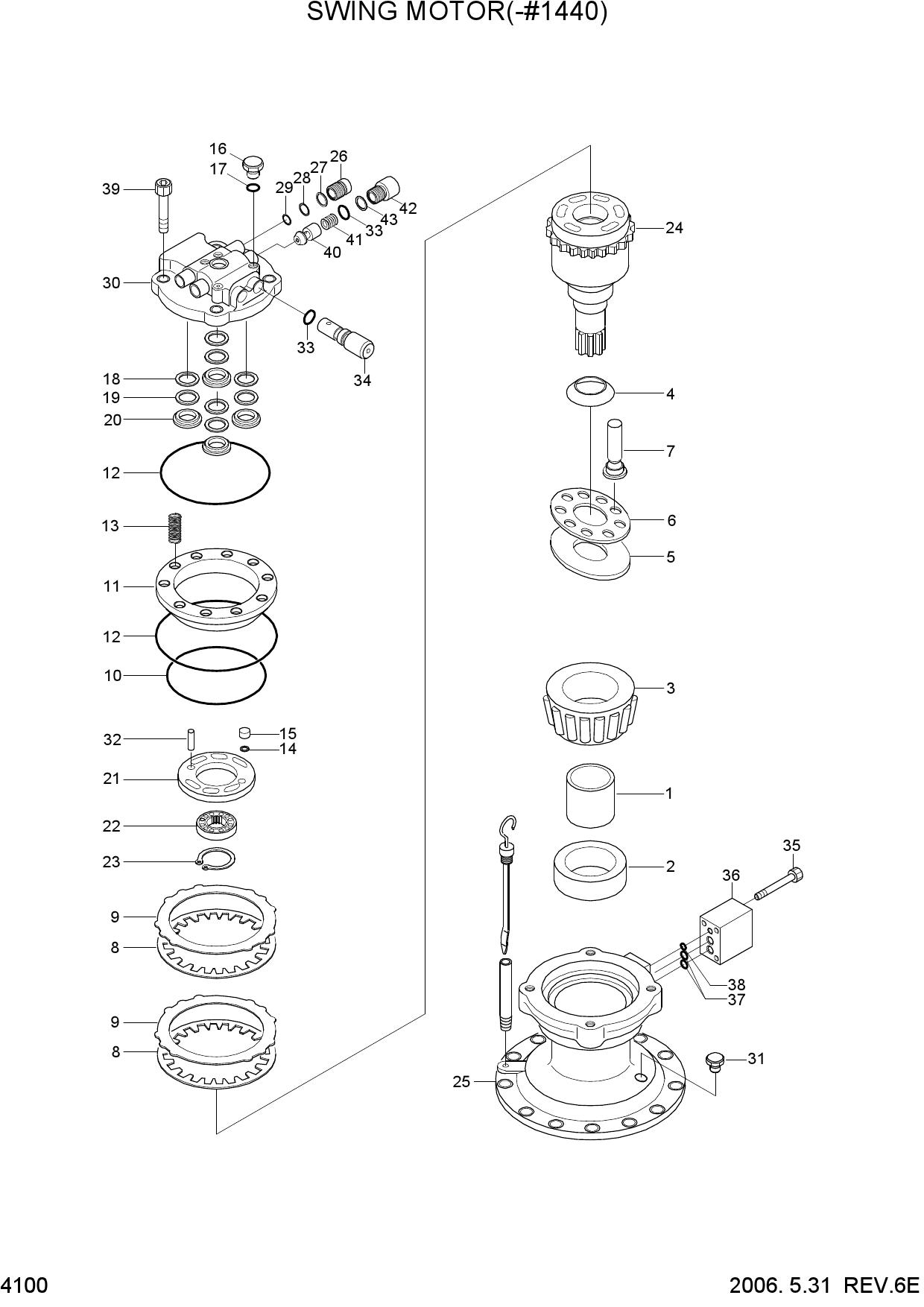

SWING MOTOR(-#1440)

SWING MOTOR(-#1440)

SWING MOTOR(-#1440)

1 XJDB-00047

  • XJDB-00047 - RING-INNER
  • Поз.: 1

2 XJDB-00048

  • XJDB-00048 - SEAL-OIL
  • Поз.: 2

3 XJDB-00049

  • XJDB-00049 - BEARING-T/ROLLER
  • Поз.: 3

4 XJDB-00050

  • XJDB-00050 - SPRING-BACKING
  • Поз.: 4

5 XJDB-00051

  • XJDB-00051 - PLATE-CAM
  • Поз.: 5

6 XJDB-00052

  • XJDB-00052 - PLATE-RETURN
  • Поз.: 6

7 XJDB-00053

  • XJDB-00053 - PISTON ASSY
  • Поз.: 7

8 XJDB-00054

  • XJDB-00054 - PLATE-LINING
  • Поз.: 8

9 XJDB-00055

  • XJDB-00055 - PLATE
  • Поз.: 9

10 XJDB-00056

  • XJDB-00056 - O-RING
  • Поз.: 10

11 XJDB-00058

  • XJDB-00058 - PISTON
  • Поз.: 11

12 XJDB-00057

  • XJDB-00057 - O-RING
  • Поз.: 12

13 XJDB-00059

  • XJDB-00059 - SPRING
  • Поз.: 13

14 XJDB-00060

  • XJDB-00060 - RING-TEFLON
  • Поз.: 14

15 XJDB-00061

  • XJDB-00061 - PISTON
  • Поз.: 15

16 XJDB-00017

  • XJDB-00017 - CAP
  • Поз.: 16

17 XJDB-00018

  • XJDB-00018 - O-RING
  • Поз.: 17

18 XJDB-00062

  • XJDB-00062 - SCROWAVE
  • Поз.: 18

19 XJDB-00063

  • XJDB-00063 - RING-TEFLON
  • Поз.: 19

20 XJDB-00064

  • XJDB-00064 - BUSH
  • Поз.: 20

21 XJDB-00065

  • XJDB-00065 - PLATE-BALANCE
  • Поз.: 21

22 XJDB-00066

  • XJDB-00066 - BEARING-NEEDLE
  • Поз.: 22

23 XJDB-00067

  • XJDB-00067 - RING-SNAP
  • Поз.: 23

24 XJDB-00030

  • XJDB-00030 - BYPASS VALVE ASSY
  • Поз.: 26

25 XJDB-00031

  • XJDB-00031 - RING-BACK UP
  • Поз.: 27

26 XJDB-00032

  • XJDB-00032 - O-RING
  • Поз.: 28

27 XJDB-00033

  • XJDB-00033 - O-RING
  • Поз.: 29

28 XJDB-00070

  • XJDB-00070 - COVER
  • Поз.: 30

29 XJDB-00071

  • XJDB-00071 - PLUG
  • Поз.: 31

30 XJDB-00072

  • XJDB-00072 - PIN-PARALLEL
  • Поз.: 32

31 XJDB-00036

  • XJDB-00036 - O-RING
  • Поз.: 33

32 XJDB-00035

  • XJDB-00035 - RELIEF VALVE ASSY
  • Поз.: 34

33 XJDB-00037

  • XJDB-00037 - BOLT-SOCKET
  • Поз.: 35

34 XJDB-00038

  • XJDB-00038 - VALVE-TIME DELAY
  • Поз.: 36

35 XJDB-00039

  • XJDB-00039 - O-RING
  • Поз.: 37

36 XJDB-00040

  • XJDB-00040 - O-RING
  • Поз.: 38

37 XJDB-00073

  • XJDB-00073 - BOLT-SOCKET
  • Поз.: 39

38 XJDB-00042

  • XJDB-00042 - VALVE-CHECK
  • Поз.: 40

39 XJDB-00043

  • XJDB-00043 - SPRING
  • Поз.: 41

40 XJDB-00044

  • XJDB-00044 - CAP
  • Поз.: 42

41 XJDB-00045

  • XJDB-00045 - RING-BACK UP
  • Поз.: 43
