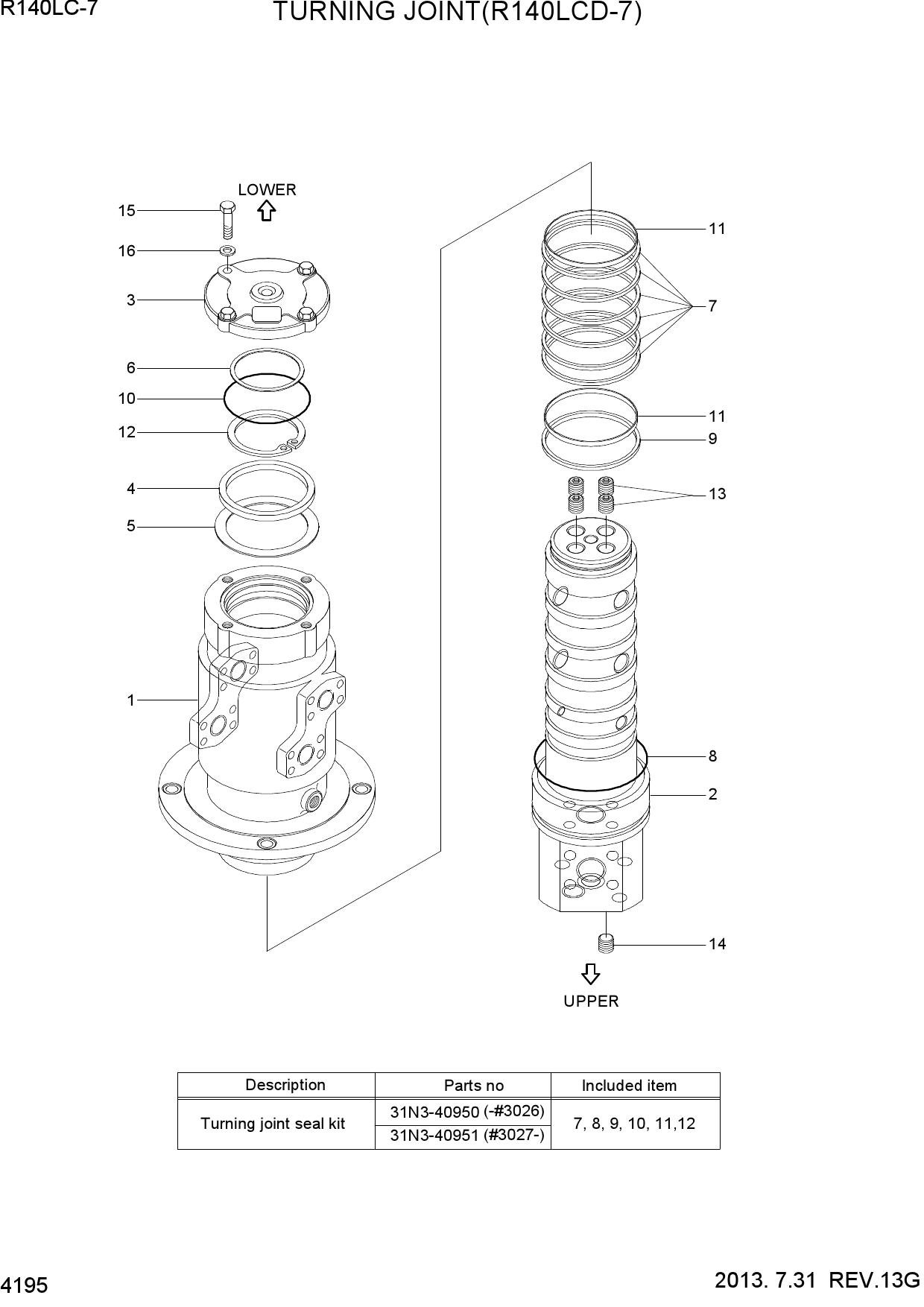

TURNING JOINT(R140LCD-7)

TURNING JOINT(R140LCD-7)

TURNING JOINT(R140LCD-7)

1 31N3-40910

  • 31N3-40910 - HUB
  • Поз.: 1

2 31N3-40911

  • 31N3-40911 - HUB
  • Поз.: 1

3 31N3-40920

  • 31N3-40920 - SHAFT
  • Поз.: 2

4 31N3-40921

  • 31N3-40921 - SHAFT
  • Поз.: 2

5 31N2-40930

  • 31N2-40930 - COVER
  • Поз.: 3

6 31E3-0035

  • 31E3-0035 - SPACER
  • Поз.: 4

7 31E3-0036

  • 31E3-0036 - SHIM
  • Поз.: 5

8 31E3-0037

  • 31E3-0037 - SHIM
  • Поз.: 6

9 S601-090004

  • S601-090004 - RING-RETAINING
  • Поз.: 12

10 P220-430204

  • P220-430204 - PLUG-HEX
  • Поз.: 13

11 P220-430202

  • P220-430202 - PLUG-HEX
  • Поз.: 14

12 S017-120352

  • S017-120352 - BOLT-HEX
  • Поз.: 15

13 S411-120002

  • S411-120002 - WASHER-SPRING
  • Поз.: 16
