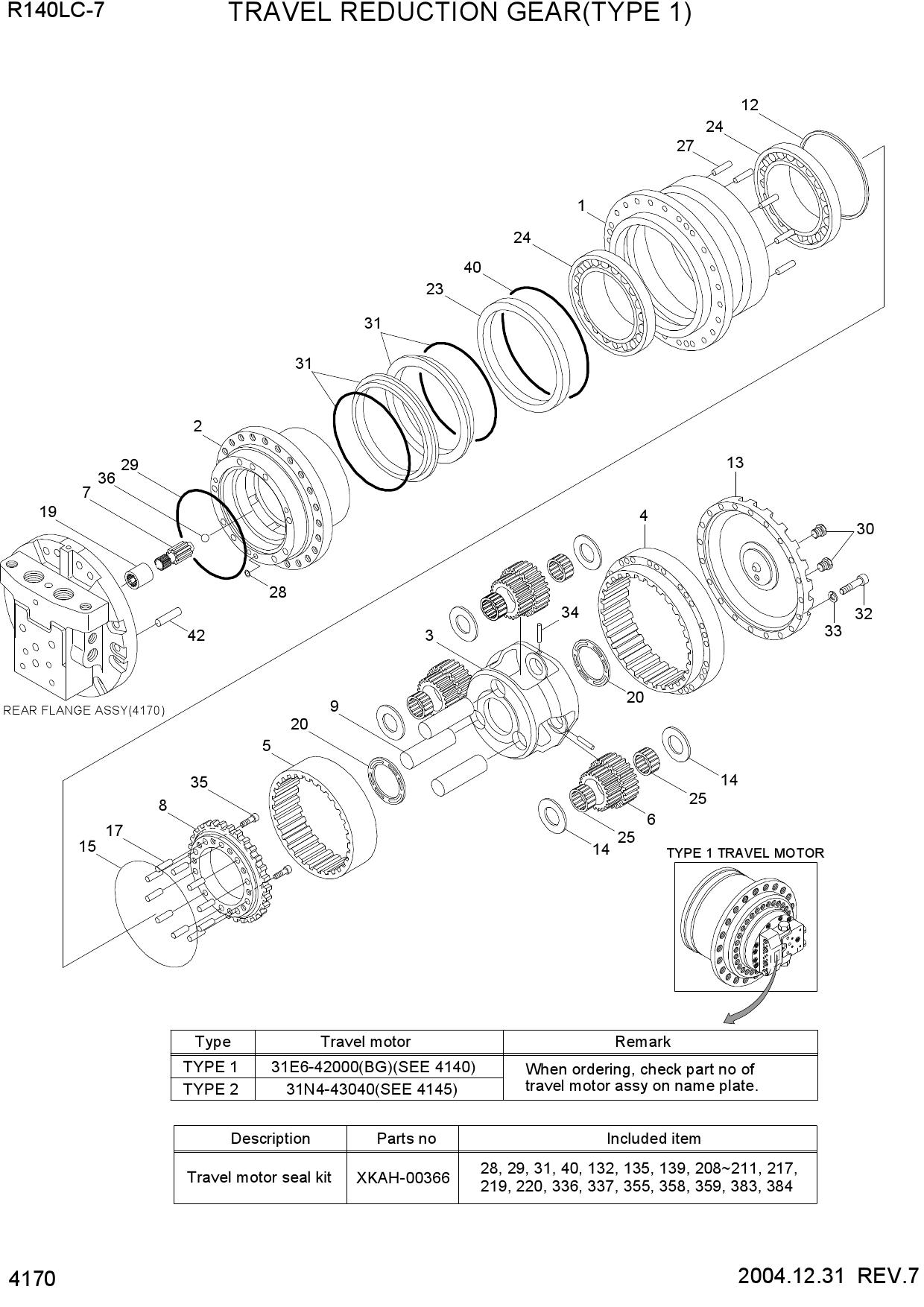

TRAVEL REDUCTION GEAR(TYPE 1)

TRAVEL REDUCTION GEAR(TYPE 1)

TRAVEL REDUCTION GEAR(TYPE 1)

1 XKAH-00364

  • XKAH-00364 - HUB
  • Поз.: 1

2 XKAH-00363

  • XKAH-00363 - GEAR-RING(A)
  • Поз.: 4

3 XKAH-00334

  • XKAH-00334 - PIN-PARALLEL
  • Поз.: 17

4 XKAH-00359

  • XKAH-00359 - BOLT-SOCKET
  • Поз.: 35

5 XKAH-00356

  • XKAH-00356 - CARRIER
  • Поз.: 3

6 XKAH-00355

  • XKAH-00355 - GEAR-CLUSTER
  • Поз.: 6

7 XKAH-00354

  • XKAH-00354 - SHAFT-CLUSTER
  • Поз.: 9

8 XKAH-00353

  • XKAH-00353 - COLLAR-THRUST
  • Поз.: 14

9 XKAH-00352

  • XKAH-00352 - BEARING-NEEDLE
  • Поз.: 25

10 XKAH-00351

  • XKAH-00351 - PIN-PARALLEL
  • Поз.: 34

11 XKAH-00350

  • XKAH-00350 - GEAR-RING(B)
  • Поз.: 5

12 XKAH-00349

  • XKAH-00349 - GEAR-SUN
  • Поз.: 7

13 XKAH-00348

  • XKAH-00348 - PIECE-DISTANCE
  • Поз.: 12

14 XKAH-00347

  • XKAH-00347 - COVER
  • Поз.: 13

15 XKAH-00346

  • XKAH-00346 - RING
  • Поз.: 15

16 XKAH-00345

  • XKAH-00345 - COUPLING
  • Поз.: 19

17 XKAH-00344

  • XKAH-00344 - PLATE-THRUST
  • Поз.: 20

18 XKAH-00343

  • XKAH-00343 - RING-SEAL
  • Поз.: 23

19 XKAH-00340

  • XKAH-00340 - BEARING-A/BALL
  • Поз.: 24

20 XKAH-00339

  • XKAH-00339 - PIN-PARALLEL
  • Поз.: 27

21 XKAH-00194

  • XKAH-00194 - O-RING
  • Поз.: 28

22 XKAH-00028

  • XKAH-00028 - O-RING
  • Поз.: 29

23 XKAH-00338

  • XKAH-00338 - PLUG-PT
  • Поз.: 30

24 XKAH-00337

  • XKAH-00337 - BOLT
  • Поз.: 32

25 XKAH-00336

  • XKAH-00336 - WASHER-SPRING
  • Поз.: 33

26 XKAH-00033

  • XKAH-00033 - BALL-STEEL
  • Поз.: 36

27 XKAH-00335

  • XKAH-00335 - O-RING
  • Поз.: 40

28 XKAH-00034

  • XKAH-00034 - PIN-PARALLEL
  • Поз.: 42
