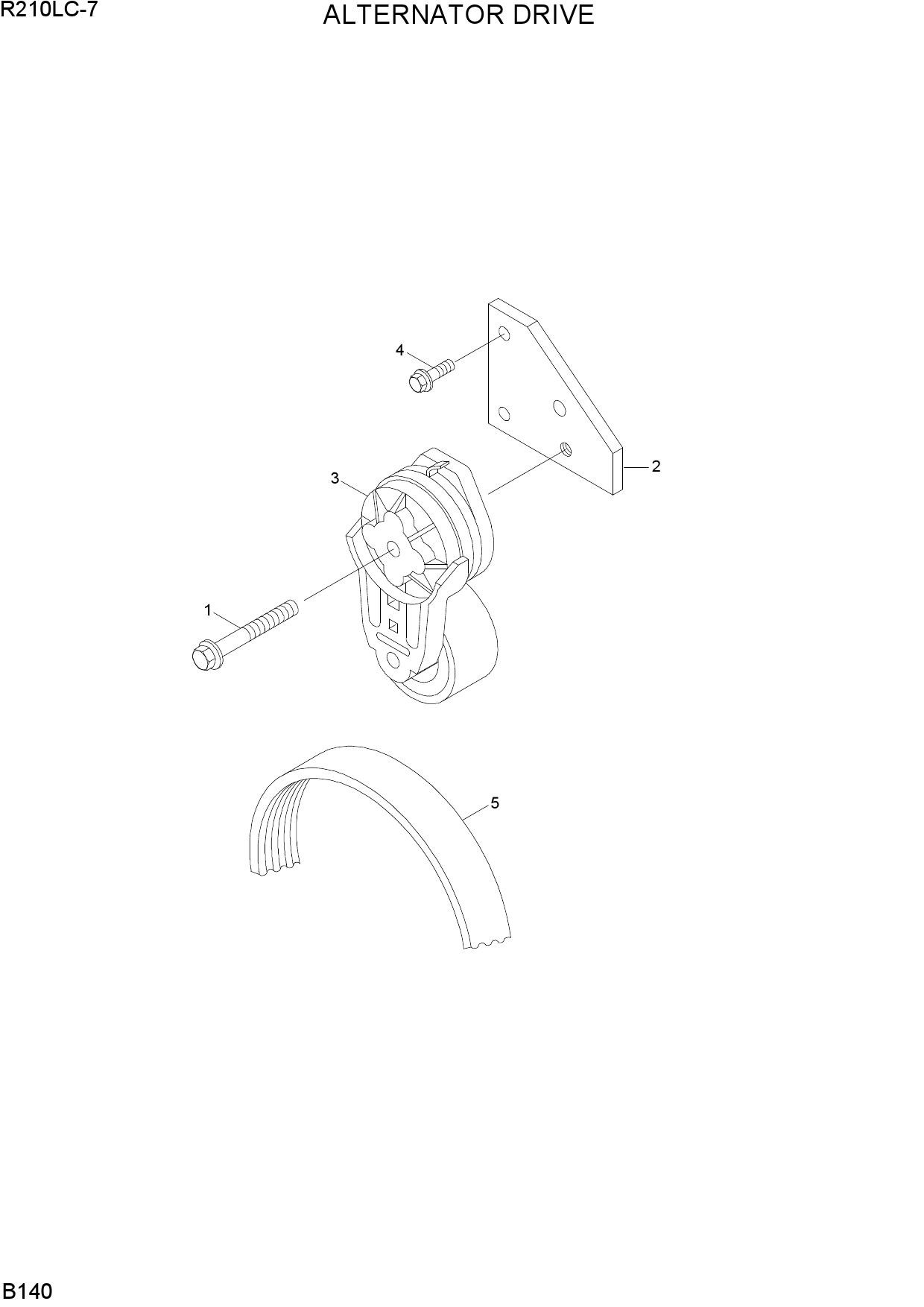

ALTERNATOR DRIVE

ALTERNATOR DRIVE

ALTERNATOR DRIVE

1 XKDE-01390

  • XKDE-01390 - SCREW
  • Поз.: 1

2 XKDE-00886

  • XKDE-00886 - BRACKET
  • Поз.: 2

3 XKDE-01493

  • XKDE-01493 - TENSIONER-BELT
  • Поз.: 3

4 XKDE-01366

  • XKDE-01366 - SCREW-FLAT HEAD CAP
  • Поз.: 4

5 XKDE-00858

  • XKDE-00858 - BELT-V RIBBED
  • Поз.: 5
