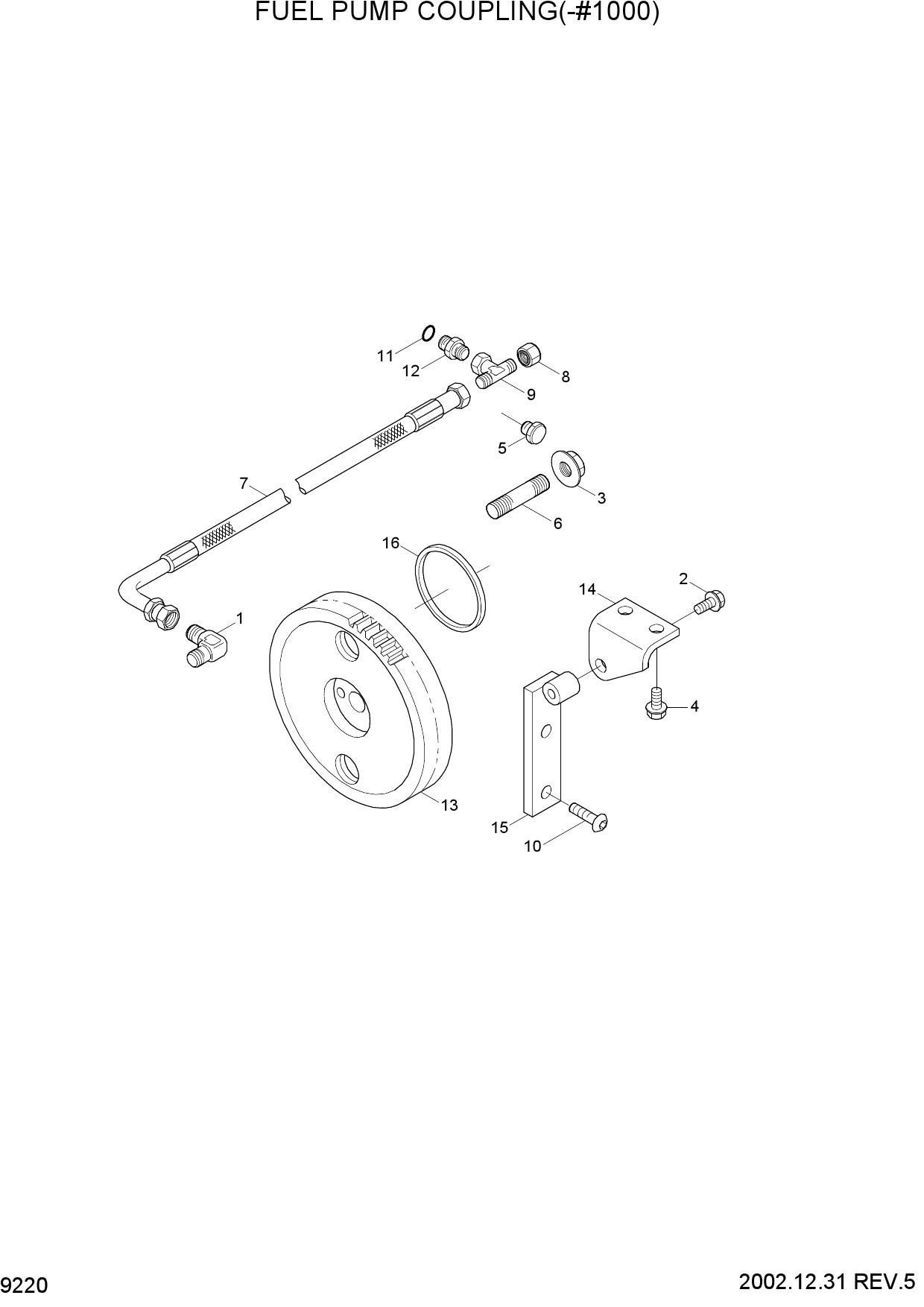

FUEL PUMP COUPLING(-#1000)

FUEL PUMP COUPLING(-#1000)

FUEL PUMP COUPLING(-#1000)

1 68139

  • 68139 - ELBOW-MALE ADAPTER
  • Поз.: 1

2 3900630

  • 3900630 - SCREW-HEX HEAD CAP
  • Поз.: 2

3 3902662

  • 3902662 - NUT-HEX FLANGE
  • Поз.: 3

4 3903990

  • 3903990 - SCREW-HEX HEAD CAP
  • Поз.: 4

5 3906619

  • 3906619 - PLUG-PIPE
  • Поз.: 5

6 3907978

  • 3907978 - STUD
  • Поз.: 6

7 3918536

  • 3918536 - HOSE-FLEXIBLE
  • Поз.: 7

8 3921556

  • 3921556 - CAP
  • Поз.: 8

9 3924346

  • 3924346 - TEE
  • Поз.: 9

10 3928231

  • 3928231 - SCREW
  • Поз.: 10

11 3678925

  • 3678925 - SEAL/O-RING
  • Поз.: 11

12 3932320

  • 3932320 - .CONNECTOR
  • Поз.: 12

13 3934636

  • 3934636 - GEAR-FUEL PUMP
  • Поз.: 13

14 3934506

  • 3934506 - BRACE
  • Поз.: 14

15 3934507

  • 3934507 - BRACE
  • Поз.: 15

16 3935032

  • 3935032 - SEAL
  • Поз.: 16
