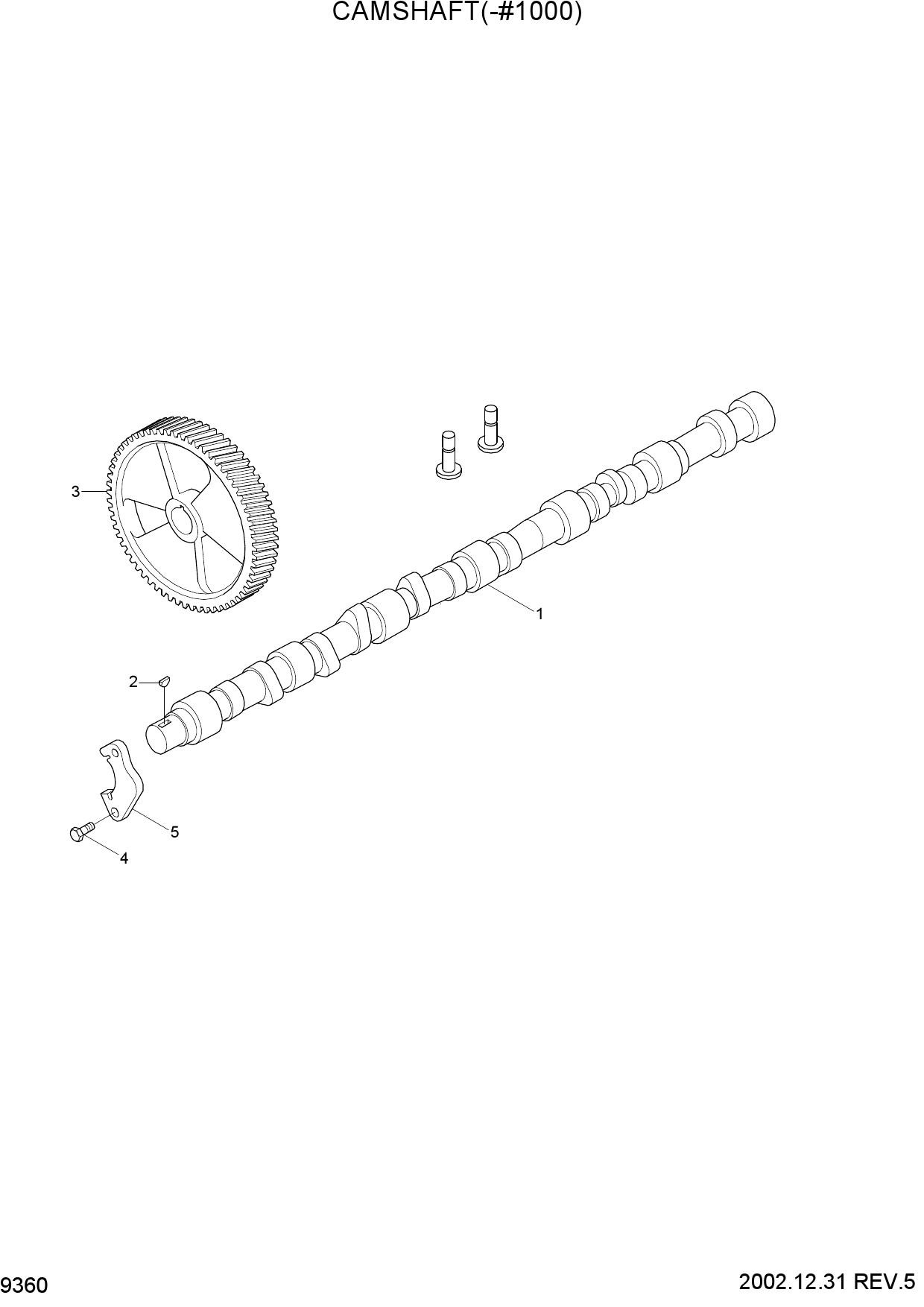

CAMSHAFT(-#1000)

CAMSHAFT(-#1000)

CAMSHAFT(-#1000)

1 3929886

  • 3929886 - CAMSHAFT
  • Поз.: 1

2 3902332

  • 3902332 - KEY-PLAIN WOODRUFF
  • Поз.: 2

3 3929030

  • 3929030 - GEAR-CAMSHAFT
  • Поз.: 3

4 3900227

  • 3900227 - SCREW
  • Поз.: 4

5 3927155

  • 3927155 - SUPPORT
  • Поз.: 5
