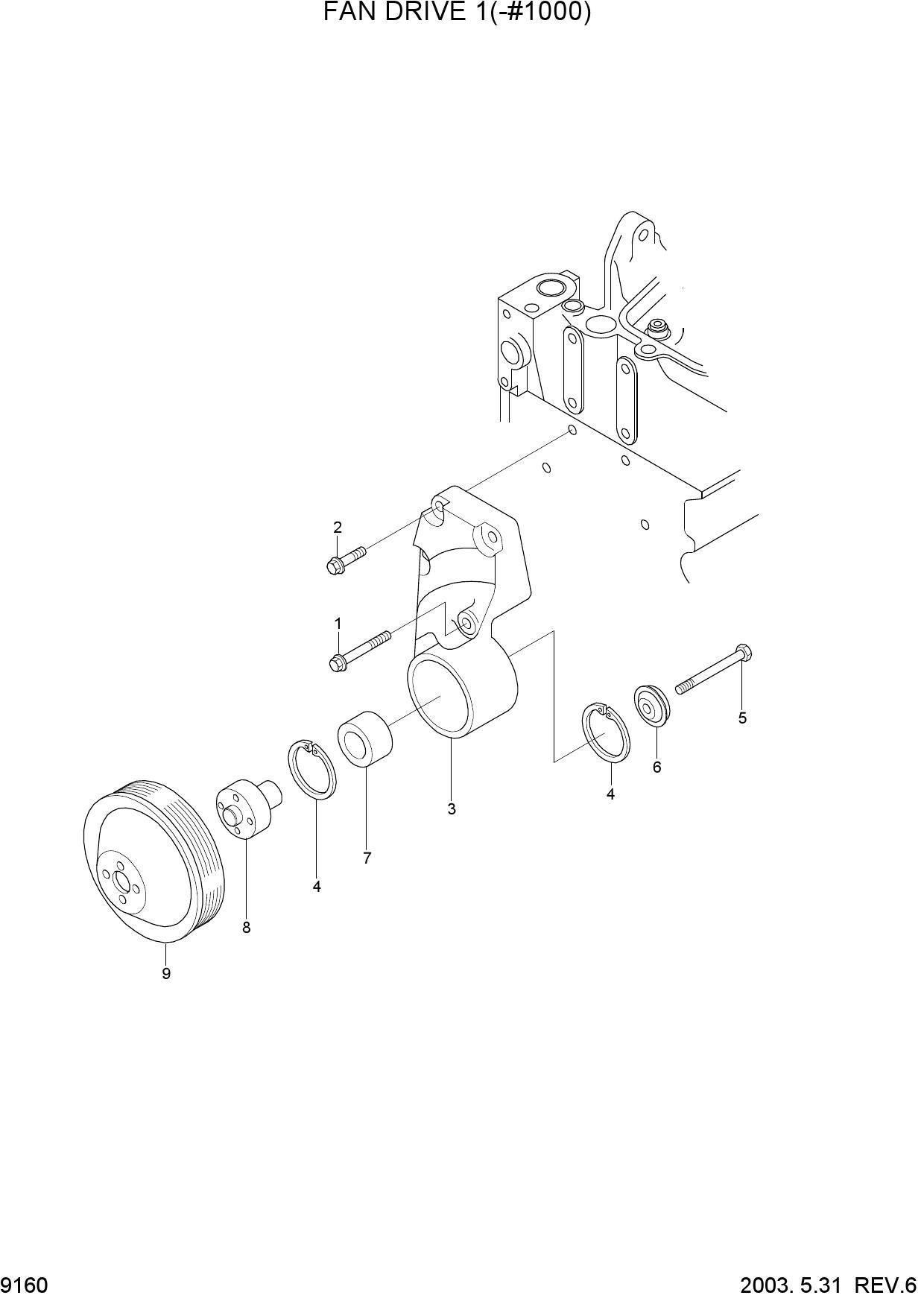

FAN DRIVE 1(-#1000)

FAN DRIVE 1(-#1000)

FAN DRIVE 1(-#1000)

1 3901447

  • 3901447 - SCREW-HEX F/HEAD CAP
  • Поз.: 1

2 3902114

  • 3902114 - SCREW-HEX F/HEAD CAP
  • Поз.: 2

3 3285949

  • 3285949 - SUPPORT-FAN
  • Поз.: 3

4 3035960

  • 3035960 - RING-RETAINING
  • Поз.: 4

5 3907769

  • 3907769 - SCREW
  • Поз.: 5

6 3923044

  • 3923044 - RETAINER-FAN HUB
  • Поз.: 6

7 3910739

  • 3910739 - BEARING-BALL
  • Поз.: 7

8 3911924

  • 3911924 - HUB-FAN
  • Поз.: 8

9 3929269

  • 3929269 - PULLEY-FAN
  • Поз.: 9
