Гусеничные экскаваторы
/
R210LC-7
/
Гидравлическая система
/

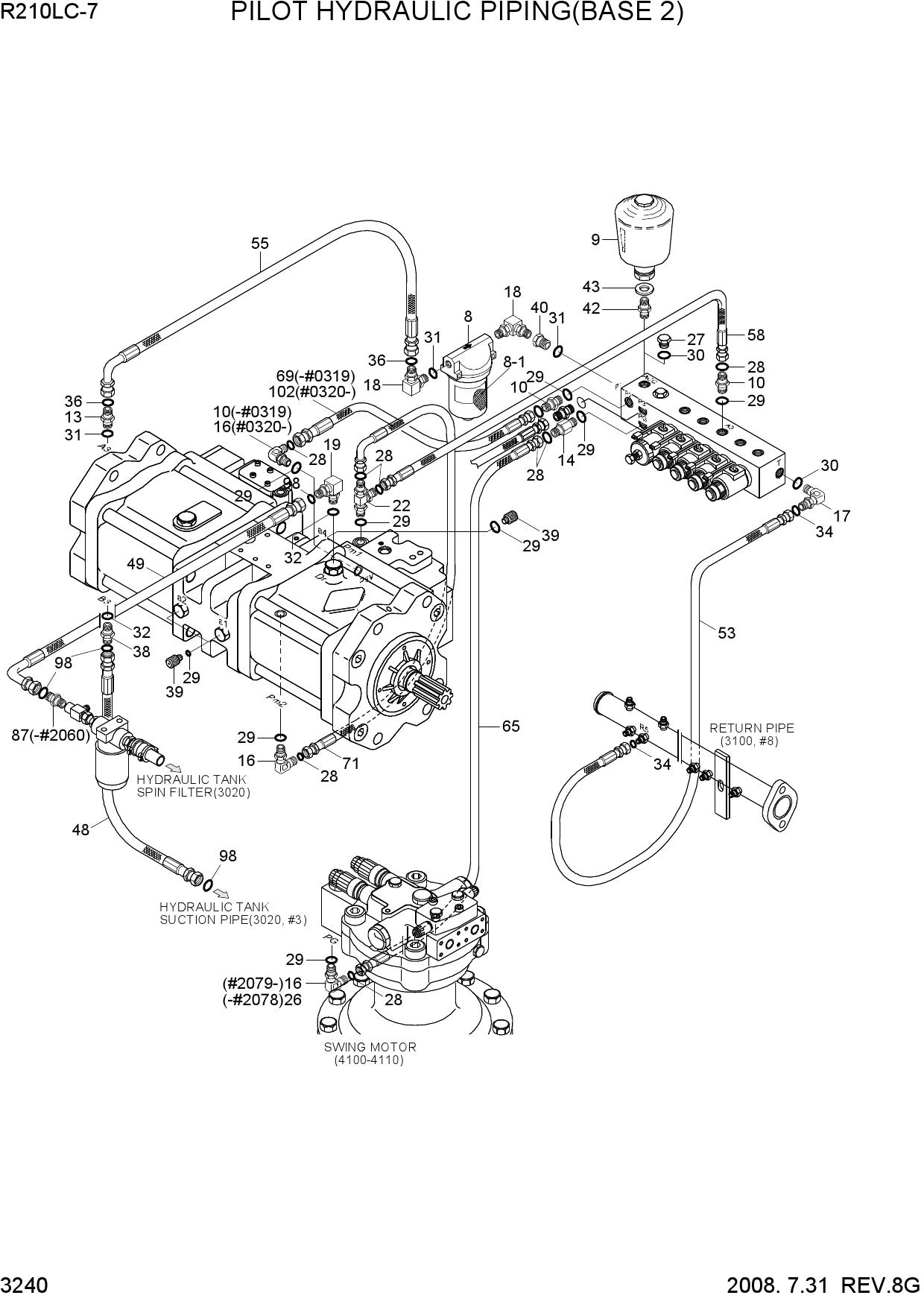

PILOT HYD PIPING(BASE 2)

PILOT HYD PIPING(BASE 2)

PILOT HYD PIPING(BASE 2)

1 31E3-0017

  • 31E3-0017 - FILTER-LINE
  • Поз.: 8

2 31E3-0018

  • 31E3-0018 - ELEMENT-LINE FILTER
  • Поз.: 8-1

3 31E3-3187

  • 31E3-3187 - ACCUMULATOR
  • Поз.: 9

4 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 10

5 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 10

6 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 10

7 P010-110003

  • P010-110003 - CONNECTOR
  • Поз.: 12

8 P010-110004

  • P010-110004 - CONNECTOR
  • Поз.: 13

9 X500-110003

  • X500-110003 - CONNECTOR-ORFS
  • Поз.: 13

10 P101-104044

  • P101-104044 - CONNECTOR-LONG
  • Поз.: 14

11 X511-104514

  • X511-104514 - CONNECTOR-LONG
  • ORFS
  • Поз.: 14

12 P020-110001

  • P020-110001 - ELBOW-90
  • Поз.: 16

13 P020-110001

  • P020-110001 - ELBOW-90
  • Поз.: 16

14 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 16

15 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 16

16 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 17

17 P020-110003

  • P020-110003 - ELBOW-90
  • Поз.: 18

18 X520-110003

  • X520-110003 - ELBOW-90
  • ORFS
  • Поз.: 18

19 P020-110004

  • P020-110004 - ELBOW-90
  • Поз.: 19

20 X520-110004

  • X520-110004 - ELBOW-90
  • ORFS
  • Поз.: 19

21 P320-040404

  • P320-040404 - TEE-RUN TYPE
  • Поз.: 22

22 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 22

23 P030-110001

  • P030-110001 - ELBOW-45
  • Поз.: 26

24 X530-110001

  • X530-110001 - ELBOW-45
  • ORFS
  • Поз.: 26

25 P220-110103

  • P220-110103 - PLUG-HEX
  • Поз.: 27

26 S621-011001

  • S621-011001 - O-RING
  • Поз.: 28

27 S631-011004

  • S631-011004 - O-RING
  • Поз.: 29

28 S631-014004

  • S631-014004 - O-RING
  • Поз.: 30

29 S631-018004

  • S631-018004 - O-RING
  • Поз.: 31

30 S631-024004

  • S631-024004 - O-RING
  • Поз.: 32

31 S621-012001

  • S621-012001 - O-RING
  • Поз.: 34

32 S621-014001

  • S621-014001 - O-RING
  • Поз.: 36

33 P010-110005

  • P010-110005 - CONNECTOR
  • Поз.: 38

34 X500-110004

  • X500-110004 - CONNECTOR-ORFS
  • Поз.: 38

35 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 39

36 31EM-20160

  • 31EM-20160 - ADAPTER
  • Поз.: 40

37 31N6-22400

  • 31N6-22400 - ADAPTOR
  • Поз.: 40

38 31E9-20060

  • 31E9-20060 - FITTING
  • Поз.: 42

39 31N6-24200

  • 31N6-24200 - CONNECTOR
  • Поз.: 42

40 P391-080000

  • P391-080000 - WASHER-COPPER
  • Поз.: 43

41 X321-021001

  • X321-021001 - RING-ED
  • Поз.: 43

42 P610-122009

  • P610-122009 - HOSE ASSY-THD 0X45
  • Поз.: 48

43 P920-122009

  • P920-122009 - HOSE ASSY-ORFS 0X45
  • Поз.: 48

44 P620-122012

  • P620-122012 - HOSE ASSY-THD 0X90
  • Поз.: 49

45 P930-122012

  • P930-122012 - HOSE ASSY-ORFS 0X90
  • Поз.: 49

46 P420-062036

  • P420-062036 - HOSE ASSY-COMP 0X90
  • Поз.: 53

47 P420-062038

  • P420-062038 - HOSE ASSY-COMP 0X90
  • Поз.: 53

48 X420-062038

  • X420-062038 - HOSE ASSY-SYNF
  • ORFS 0X90
  • Поз.: 53

49 P930-062038

  • P930-062038 - HOSE ASSY-ORFS 0X90
  • Поз.: 53

50 P400-082012

  • P400-082012 - HOSE ASSY-COMPACT
  • Поз.: 55

51 P420-082012

  • P420-082012 - HOSE ASSY-COMP 0X90
  • Поз.: 55

52 P930-082012

  • P930-082012 - HOSE ASSY-ORFS 0X90
  • Поз.: 55

53 P400-042010

  • P400-042010 - HOSE ASSY-COMPACT
  • Поз.: 58

54 X400-042010

  • X400-042010 - HOSE ASSY-ORFS 0X0
  • Поз.: 58

55 P910-042010

  • P910-042010 - HOSE ASSY-ORFS 0X0
  • Поз.: 58

56 P400-042052

  • P400-042052 - HOSE ASSY-COMPACT
  • Поз.: 65

57 X400-042052

  • X400-042052 - HOSE ASSY-SYNF
  • ORFS(0X0)
  • Поз.: 65

58 P910-042052

  • P910-042052 - HOSE ASSY-ORFS 0X0
  • Поз.: 65

59 P420-042008

  • P420-042008 - HOSE ASSY-COMP 0X90
  • Поз.: 69

60 P420-042012

  • P420-042012 - HOSE ASSY-COMP 0X90
  • Поз.: 71

61 X420-042012

  • X420-042012 - HOSE ASSY-ORFS 0X90
  • Поз.: 71

62 P930-042012

  • P930-042012 - HOSE ASSY-ORFS 0X90
  • Поз.: 71

63 X420-042009

  • X420-042009 - HOSE ASSY-ORFS 0X90
  • Поз.: 71

64 P010-430019

  • P010-430019 - CONNECTOR
  • Поз.: 87

65 S621-018001

  • S621-018001 - O-RING
  • Поз.: 98

66 P400-042008

  • P400-042008 - HOSE ASSY-COMPACT
  • Поз.: 102

67 X400-042008

  • X400-042008 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 102

68 P910-042008

  • P910-042008 - HOSE ASSY-ORFS 0X0
  • Поз.: 102
