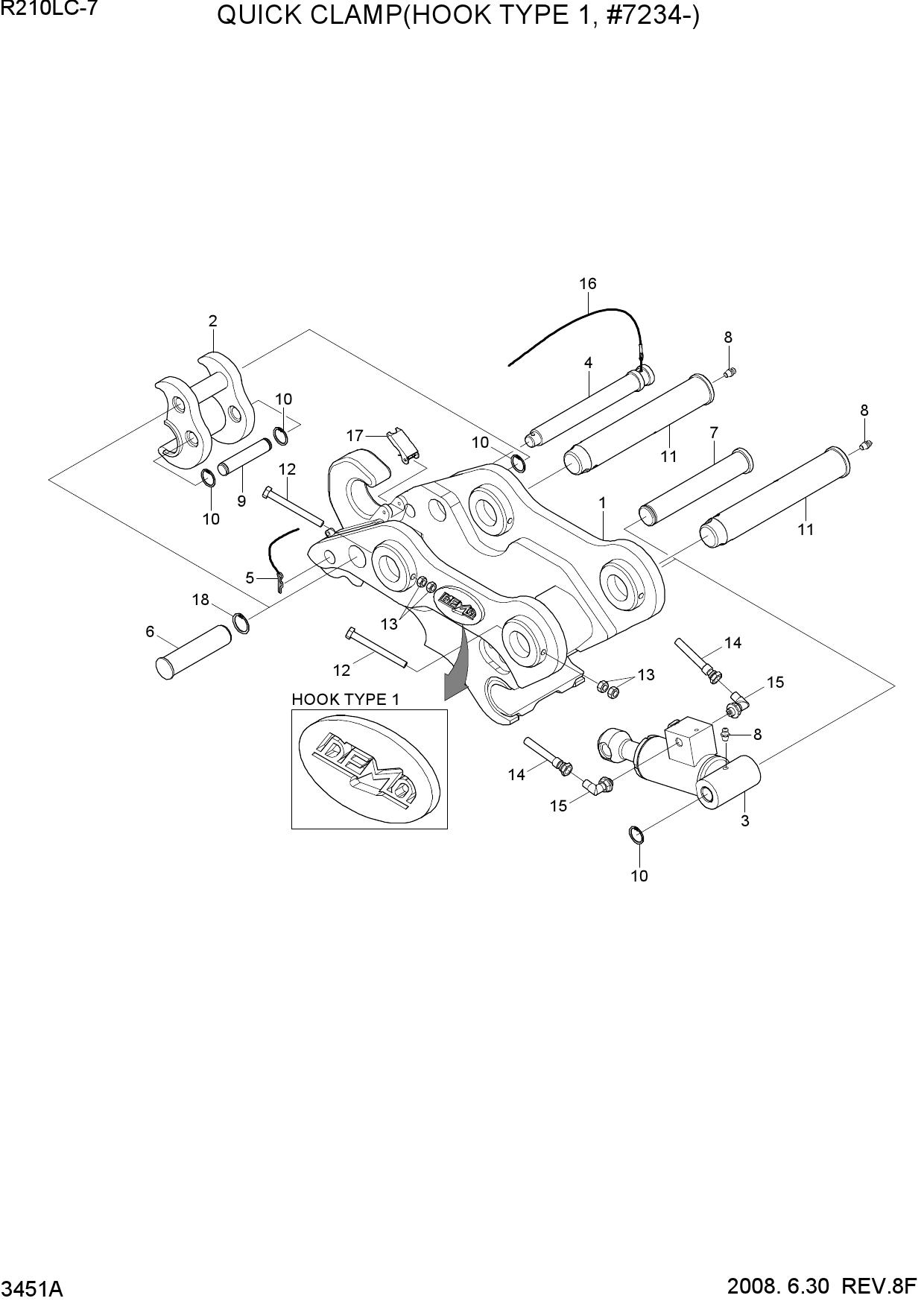

QUICK CLAMP(HOOK TYPE 1, #7234-)

QUICK CLAMP(HOOK TYPE 1, #7234-)

QUICK CLAMP(HOOK TYPE 1, #7234-)

1 XKBN-00207

  • XKBN-00207 - BODY-HOOK TYPE
  • Поз.: 1

2 XKBN-00208

  • XKBN-00208 - HITCH
  • Поз.: 2

3 XKBN-00209

  • XKBN-00209 - CYLINDER ASSY
  • Поз.: 3

4 XKBN-00149

  • XKBN-00149 - PIN-SAFETY
  • Поз.: 4

5 XKBN-00163

  • XKBN-00163 - PIN-SNAP
  • Поз.: 5

6 XKBN-00203

  • XKBN-00203 - PIN-HITCH
  • Поз.: 6

7 XKBN-00204

  • XKBN-00204 - PIN-FRAME
  • Поз.: 7

8 XKBN-00009

  • XKBN-00009 - NIPPLE-GREASE
  • Поз.: 8

9 XKBN-00152

  • XKBN-00152 - PIN-CYLINDER
  • Поз.: 9

10 XKBN-00109

  • XKBN-00109 - RING-SNAP
  • Поз.: 10

11 XKBN-00153

  • XKBN-00153 - PIN-BRACKET
  • Поз.: 11

12 XKBN-00205

  • XKBN-00205 - BOLT-HEX
  • Поз.: 12

13 XKBN-00196

  • XKBN-00196 - NUT-HEX
  • Поз.: 13

14 XKBN-00112

  • XKBN-00112 - HOSE-PROTECTOR
  • Поз.: 14

15 XKBN-00016

  • XKBN-00016 - ELBOW-90
  • Поз.: 15

16 XKBN-00083

  • XKBN-00083 - WIRE ASSY
  • Поз.: 16

17 XKBN-00116

  • XKBN-00116 - LATCH-SPRING
  • Поз.: 17

18 XKBN-00206

  • XKBN-00206 - RING-SNAP
  • Поз.: 18
