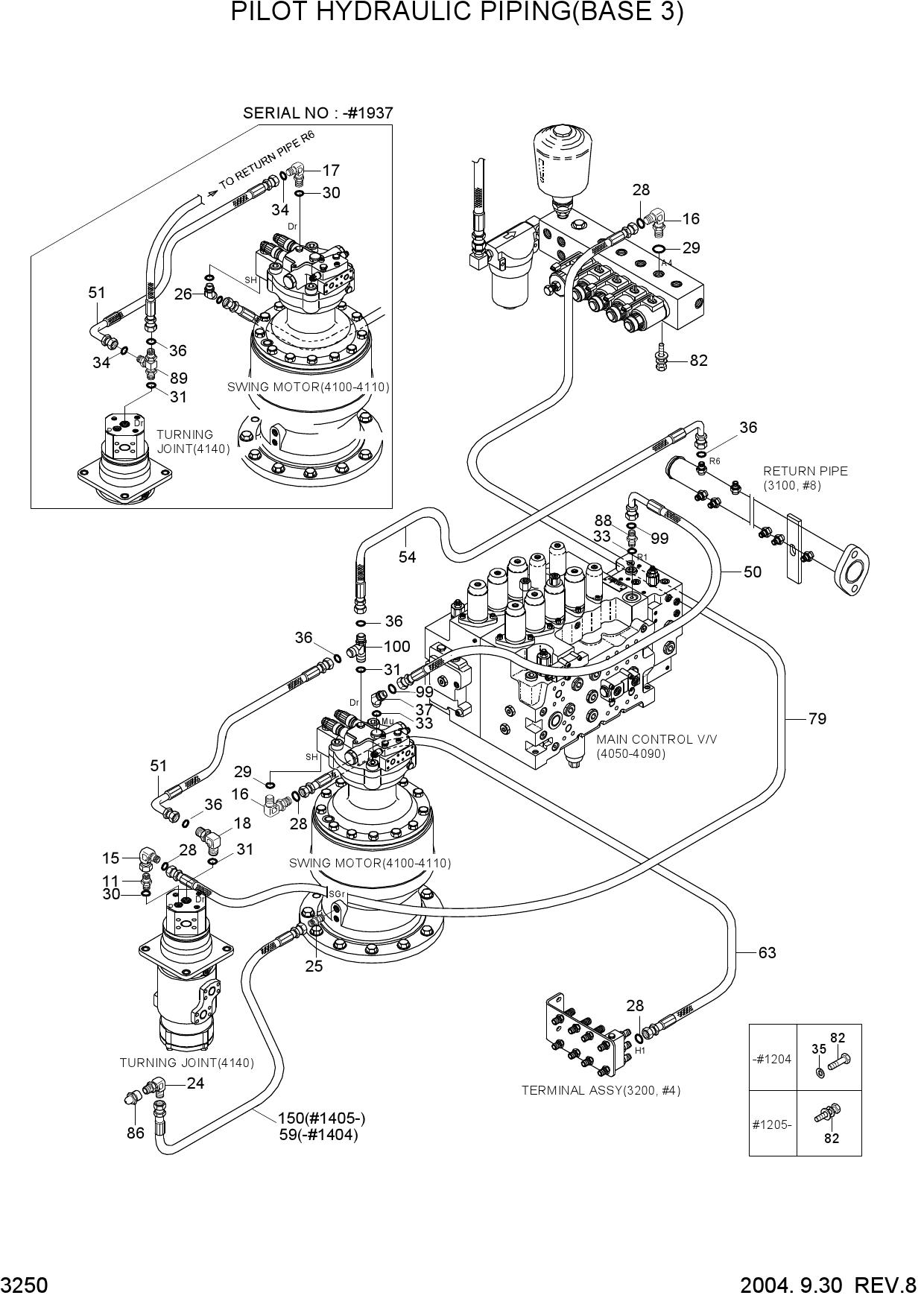

PILOT HYD PIPING(BASE 3)

PILOT HYD PIPING(BASE 3)

PILOT HYD PIPING(BASE 3)

1 P101-106044

  • P101-106044 - CONNECTOR-LONG
  • Поз.: 15

2 P020-110012

  • P020-110012 - ELBOW-90
  • Поз.: 15

3 31M5-56270

  • 31M5-56270 - ELBOW-90
  • Поз.: 15

4 X850-515100

  • X850-515100 - ELBOW-90
  • SWIVEL
  • ORFS
  • Поз.: 15

5 P020-110001

  • P020-110001 - ELBOW-90
  • Поз.: 16

6 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 16

7 P020-110002

  • P020-110002 - ELBOW-90
  • Поз.: 17

8 X520-110003

  • X520-110003 - ELBOW-90
  • ORFS
  • Поз.: 18

9 P010-430011

  • P010-430011 - CONNECTOR
  • Поз.: 24

10 31NB-50280

  • 31NB-50280 - ELBOW-90
  • Поз.: 24

11 P010-430002

  • P010-430002 - CONNECTOR
  • Поз.: 25

12 P030-110001

  • P030-110001 - ELBOW-45
  • Поз.: 26

13 S621-011001

  • S621-011001 - O-RING
  • Поз.: 28

14 S631-011004

  • S631-011004 - O-RING
  • Поз.: 29

15 S631-014004

  • S631-014004 - O-RING
  • Поз.: 30

16 S631-014004

  • S631-014004 - O-RING
  • Поз.: 30

17 S631-018004

  • S631-018004 - O-RING
  • Поз.: 31

18 S631-018004

  • S631-018004 - O-RING
  • Поз.: 31

19 S631-029004

  • S631-029004 - O-RING
  • Поз.: 33

20 S621-012001

  • S621-012001 - O-RING
  • Поз.: 34

21 S403-082006

  • S403-082006 - WASHER-PLAIN
  • Поз.: 35

22 S621-014001

  • S621-014001 - O-RING
  • Поз.: 36

23 S621-014001

  • S621-014001 - O-RING
  • Поз.: 36

24 P030-110005

  • P030-110005 - ELBOW-45
  • Поз.: 37

25 X530-110005

  • X530-110005 - ELBOW-45
  • ORFS
  • Поз.: 37

26 P620-162015

  • P620-162015 - HOSE ASSY-THD 0X90
  • Поз.: 50

27 P930-162015

  • P930-162015 - HOSE ASSY-ORFS 0X90
  • Поз.: 50

28 P420-082032

  • P420-082032 - HOSE ASSY-COMP 0X90
  • Поз.: 51

29 P930-082026

  • P930-082026 - HOSE ASSY-ORFS 0X90
  • Поз.: 51

30 P420-062028

  • P420-062028 - HOSE ASSY-COMP 0X90
  • Поз.: 54

31 P420-062026

  • P420-062026 - HOSE ASSY-COMP 0X90
  • Поз.: 54

32 P930-082017

  • P930-082017 - HOSE ASSY-ORFS 0X90
  • Поз.: 54

33 P400-042014

  • P400-042014 - HOSE ASSY-COMPACT
  • Поз.: 59

34 P400-042036

  • P400-042036 - HOSE ASSY-COMPACT
  • Поз.: 63

35 X400-042036

  • X400-042036 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 63

36 P910-042036

  • P910-042036 - HOSE ASSY-ORFS 0X0
  • Поз.: 63

37 P420-042056

  • P420-042056 - HOSE ASSY-COMP 0X90
  • Поз.: 79

38 P400-042056

  • P400-042056 - HOSE ASSY-COMPACT
  • Поз.: 79

39 X400-042056

  • X400-042056 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 79

40 P910-042056

  • P910-042056 - HOSE ASSY-ORFS 0X0
  • Поз.: 79

41 S015-080256

  • S015-080256 - BOLT-HEX
  • Поз.: 82

42 S035-082522

  • S035-082522 - BOLT-W/WASHER
  • Поз.: 82

43 S035-082526

  • S035-082526 - BOLT-W/WASHER
  • Поз.: 82

44 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 86

45 P010-110006

  • P010-110006 - CONNECTOR
  • Поз.: 88

46 X500-110005

  • X500-110005 - CONNECTOR-ORFS
  • Поз.: 88

47 P320-080806

  • P320-080806 - TEE-RUN TYPE
  • Поз.: 89

48 S621-021001

  • S621-021001 - O-RING
  • Поз.: 99

49 X820-085353

  • X820-085353 - TEE-R/TYPE
  • ORFS
  • Поз.: 100

50 P400-042021

  • P400-042021 - HOSE ASSY-COMPACT
  • Поз.: 150

51 P840-042021

  • P840-042021 - HOSE ASSY-SYN THD
  • Поз.: 150

52 P400-042021

  • P400-042021 - HOSE ASSY-COMPACT
  • Поз.: 150
