Hyundai
/
Гусеничные экскаваторы
/
R210LC-7
/
Гидравлическая система
/

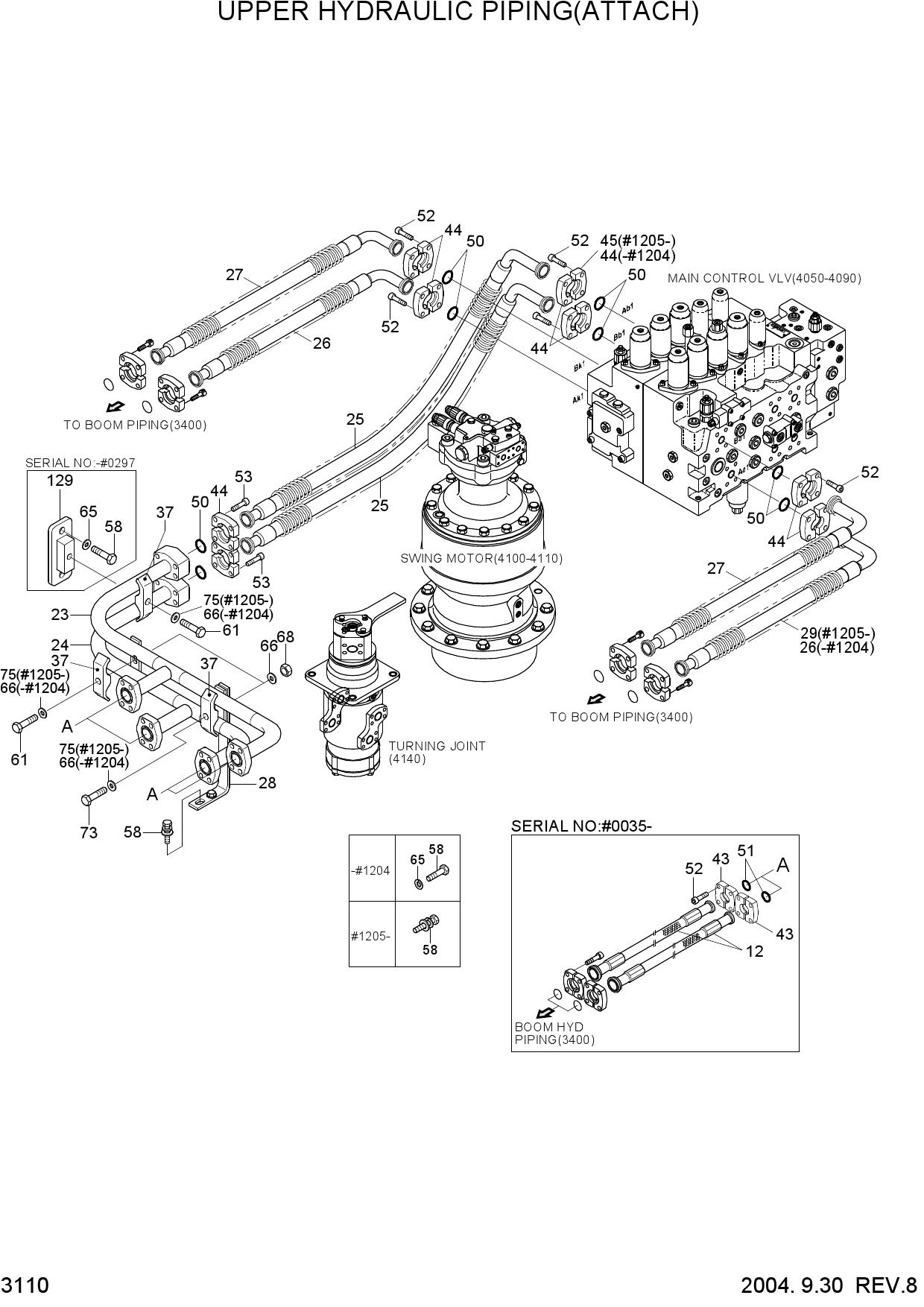

UPPER HYD PIPING(ATTACH)

UPPER HYD PIPING(ATTACH)

UPPER HYD PIPING(ATTACH)

1 P683-127316

  • P683-127316 - HOSE ASSY-FLG 0X0
  • Поз.: 12

2 31N6-13011

  • 31N6-13011 - PIPE ASSY
  • Поз.: 23

3 31N6-13021

  • 31N6-13021 - PIPE ASSY
  • Поз.: 24

4 31N6-13030

  • 31N6-13030 - HOSE ASSY-0X90
  • Поз.: 25

5 31N6-13051

  • 31N6-13051 - HOSE ASSY-0X90
  • Поз.: 26

6 31N6-13051

  • 31N6-13051 - HOSE ASSY-0X90
  • Поз.: 26

7 31N6-13061

  • 31N6-13061 - HOSE ASSY-0X90
  • Поз.: 27

8 31N6-13070

  • 31N6-13070 - BRACKET
  • Поз.: 28

9 31N6-15080

  • 31N6-15080 - HOSE ASSY
  • Поз.: 29

10 31EM-12170

  • 31EM-12170 - CLAMP-PIPE
  • Поз.: 37

11 P173-120102

  • P173-120102 - FLANGE-HYD
  • SPLIT
  • Поз.: 43

12 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 44

13 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 44

14 31E9-01320

  • 31E9-01320 - FLANGE-SPLIT
  • Поз.: 45

15 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 50

16 Y171-019004

  • Y171-019004 - O-RING
  • Поз.: 51

17 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 52

18 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 52

19 S109-100406

  • S109-100406 - BOLT-SOCKET
  • Поз.: 53

20 S109-100456

  • S109-100456 - BOLT-SOCKET
  • Поз.: 53

21 S017-120302

  • S017-120302 - BOLT-HEX
  • Поз.: 58

22 S017-120302

  • S017-120302 - BOLT-HEX
  • Поз.: 58

23 S037-123022

  • S037-123022 - BOLT-W/WASHER
  • Поз.: 58

24 S017-100752

  • S017-100752 - BOLT-HEX
  • Поз.: 61

25 S403-121002

  • S403-121002 - WASHER-PLAIN
  • Поз.: 65

26 S403-121002

  • S403-121002 - WASHER-PLAIN
  • Поз.: 65

27 S403-101002

  • S403-101002 - WASHER-PLAIN
  • Поз.: 66

28 S403-101002

  • S403-101002 - WASHER-PLAIN
  • Поз.: 66

29 S207-101006

  • S207-101006 - NUT-HEX
  • Поз.: 68

30 S017-100852

  • S017-100852 - BOLT-HEX
  • Поз.: 73

31 S411-100002

  • S411-100002 - WASHER-SPRING
  • Поз.: 75

32 31N6-13080

  • 31N6-13080 - BRACKET-PIPE
  • Поз.: 129
