Колёсные экскаваторы
/
R210W-9S
/
Базовые узлы двигателя
/
FUEL FILTER PLUMBING (часть 1)

FUEL FILTER PLUMBING (часть 1)

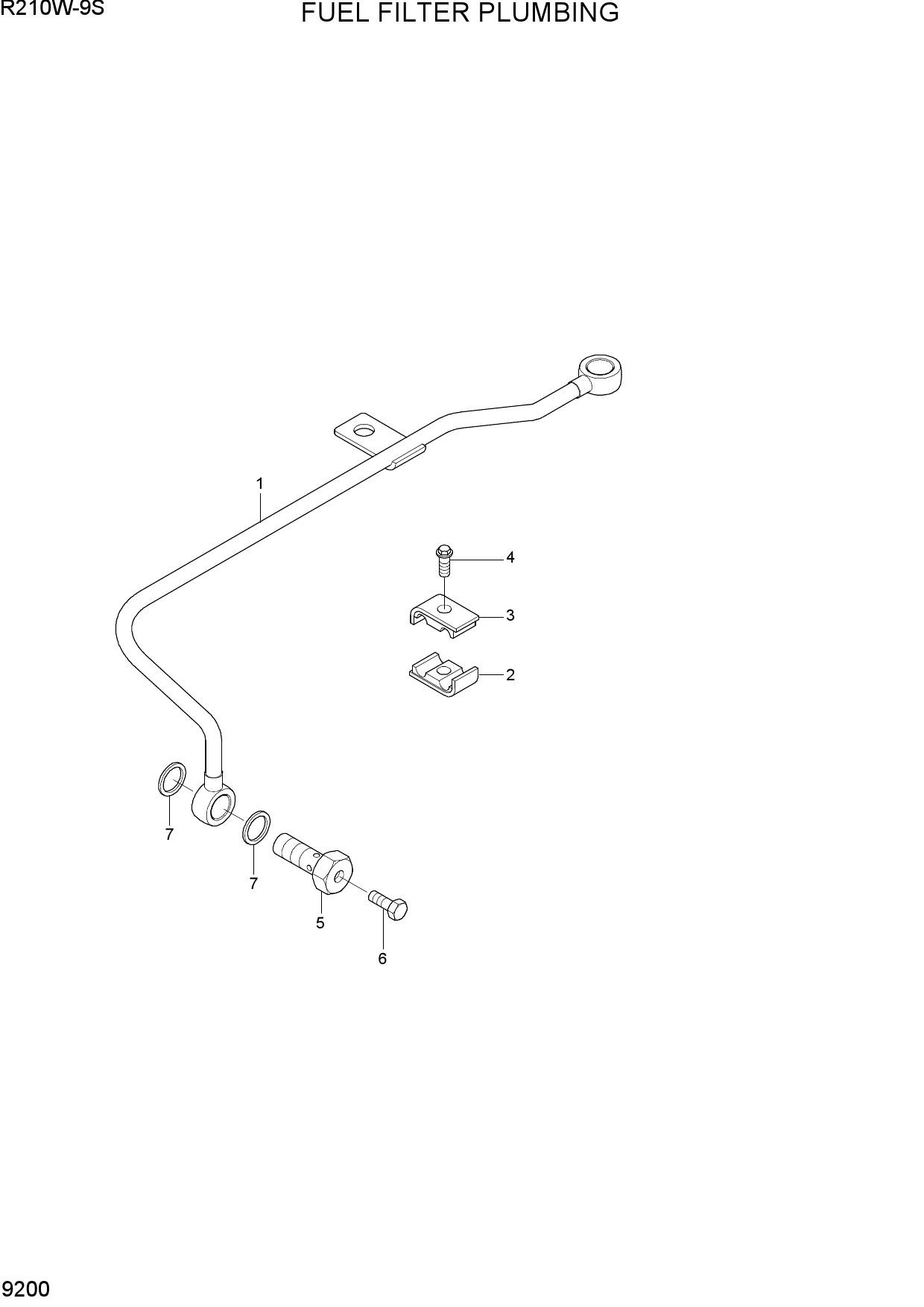

FUEL FILTER PLUMBING

1 3863179

  • 3863179 - TUBE-FUEL SUPPLY
  • Поз.: 1

2 3863390

  • 3863390 - CLAMP-TUBE
  • Поз.: 2

3 3863391

  • 3863391 - CLAMP-TUBE
  • Поз.: 3

4 3901865

  • 3901865 - SCREW
  • Поз.: 4

5 3911446

  • 3911446 - SCREW
  • Поз.: 5

6 3939570

  • 3939570 - SCREW
  • Поз.: 6

7 3963983

  • 3963983 - WASHER-SEALING
  • Поз.: 7
