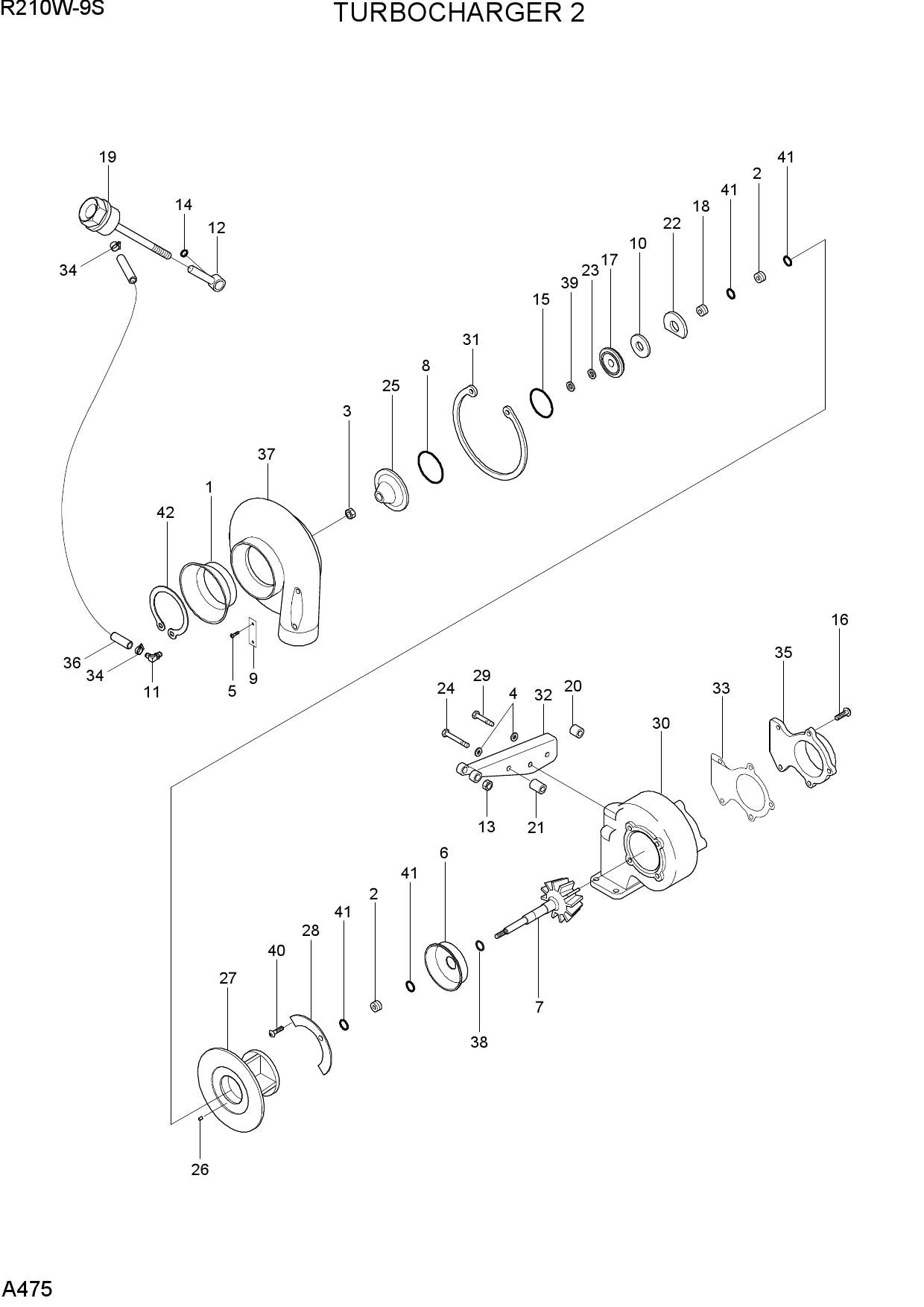

TURBOCHARGER 2
1 XKDE-02462
- XKDE-02462 - BEARING-T/CHARGER
- Поз.: 2
2 XKDE-02463
- XKDE-02463 - NUT-LOCK
- Поз.: 3
3 XKDE-02498
- XKDE-02498 - WASHER-PLAIN
- Поз.: 4
4 XKDE-02464
- XKDE-02464 - SCREW-DRIVE
- Поз.: 5
5 XKDE-02465
- XKDE-02465 - SHIELD-T/CHARGER
- Поз.: 6
6 XKDE-02466
- XKDE-02466 - SHAFT & WHEEL
- Поз.: 7
7 XKDE-02467
- XKDE-02467 - RING-RETAINING
- Поз.: 8
8 XKDE-02469
- XKDE-02469 - BAFFLE-OIL
- Поз.: 10
9 XKDE-02499
- XKDE-02499 - BAFFLE-OIL
- Поз.: 11
10 XKDE-02676
- XKDE-02676 - NUT-HEX FLANGE
- Поз.: 13
11 XKDE-02502
- XKDE-02502 - RING-RETAING
- Поз.: 14
12 XKDE-02470
- XKDE-02470 - SEAL/O-RING
- Поз.: 15
13 XKDE-02503
- XKDE-02503 - SCREW
- Поз.: 16
14 XKDE-02471
- XKDE-02471 - PLATE-OIL SEAL
- Поз.: 17
15 XKDE-02472
- XKDE-02472 - SLINGER-OIL
- Поз.: 18
16 XKDE-02505
- XKDE-02505 - SPACER-MOUNTING
- Поз.: 20
17 XKDE-02506
- XKDE-02506 - SPACER-MOUNTING
- Поз.: 21
18 XKDE-02473
- XKDE-02473 - BEARING-THRUST
- Поз.: 22
19 XKDE-02474
- XKDE-02474 - COLLAR-THRUST
- Поз.: 23
20 XKDE-02507
- XKDE-02507 - HOUSING-COMPRESSOR
- Поз.: 24
21 XKDE-02678
- XKDE-02678 - IMPELLER
- Поз.: 25
22 XKDE-02475
- XKDE-02475 - PIN-ROLL
- Поз.: 26
23 XKDE-02461
- XKDE-02461 - PLATE-CLAMPING
- Поз.: 28
24 XKDE-02510
- XKDE-02510 - SCREW-HEX HD SET
- Поз.: 29
25 XKDE-02511
- XKDE-02511 - COLLAR-THRUST
- Поз.: 30
26 XKDE-02477
- XKDE-02477 - RING-RETAINING
- Поз.: 31
27 XKDE-02512
- XKDE-02512 - BRACKET-ACTUATOR
- Поз.: 32
28 XKDE-02513
- XKDE-02513 - GASKET-TUBOCHARGER
- Поз.: 33
29 XKDE-02514
- XKDE-02514 - CLAMP-HOSE
- Поз.: 34
30 XKDE-02515
- XKDE-02515 - CONNECTION-ADAPT
- Поз.: 35
31 XKDE-02481
- XKDE-02481 - SEAL-SPLIT RING
- Поз.: 38
32 XKDE-02482
- XKDE-02482 - SEAL-SPLIT RING
- Поз.: 39
33 XKDE-02483
- XKDE-02483 - SCREW
- Поз.: 40
34 XKDE-02484
- XKDE-02484 - RING-RETAINING
- Поз.: 41
35 XKDE-02485
- XKDE-02485 - RING-RETAINING
- Поз.: 42
