Hyundai
/
Колёсные экскаваторы
/
R210W-9S
/
Базовые узлы двигателя
/

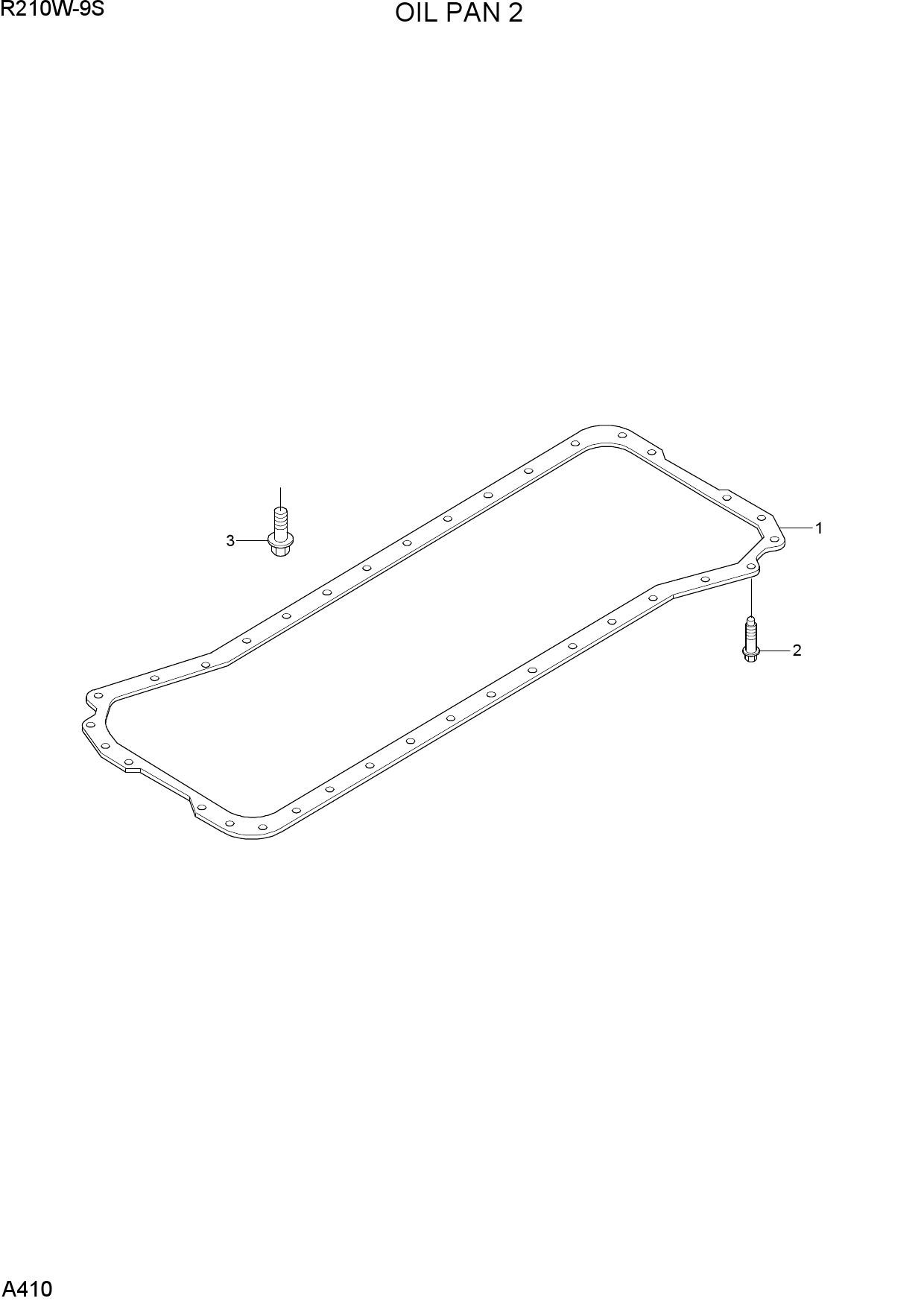

OIL PAN 2

OIL PAN 2

OIL PAN 2

1 XKDE-01108

  • XKDE-01108 - GASKET-OIL PAN
  • Поз.: 1

2 XKDE-00263

  • XKDE-00263 - SCREW-HEX HD CAP
  • Поз.: 2

3 XKDE-00298

  • XKDE-00298 - SCREW-HEX F/HD CAP
  • Поз.: 3

Базовые узлы двигателя — другие схемы
