TURBOCHARGER PLUMBING (часть 1)

TURBOCHARGER PLUMBING (часть 1)

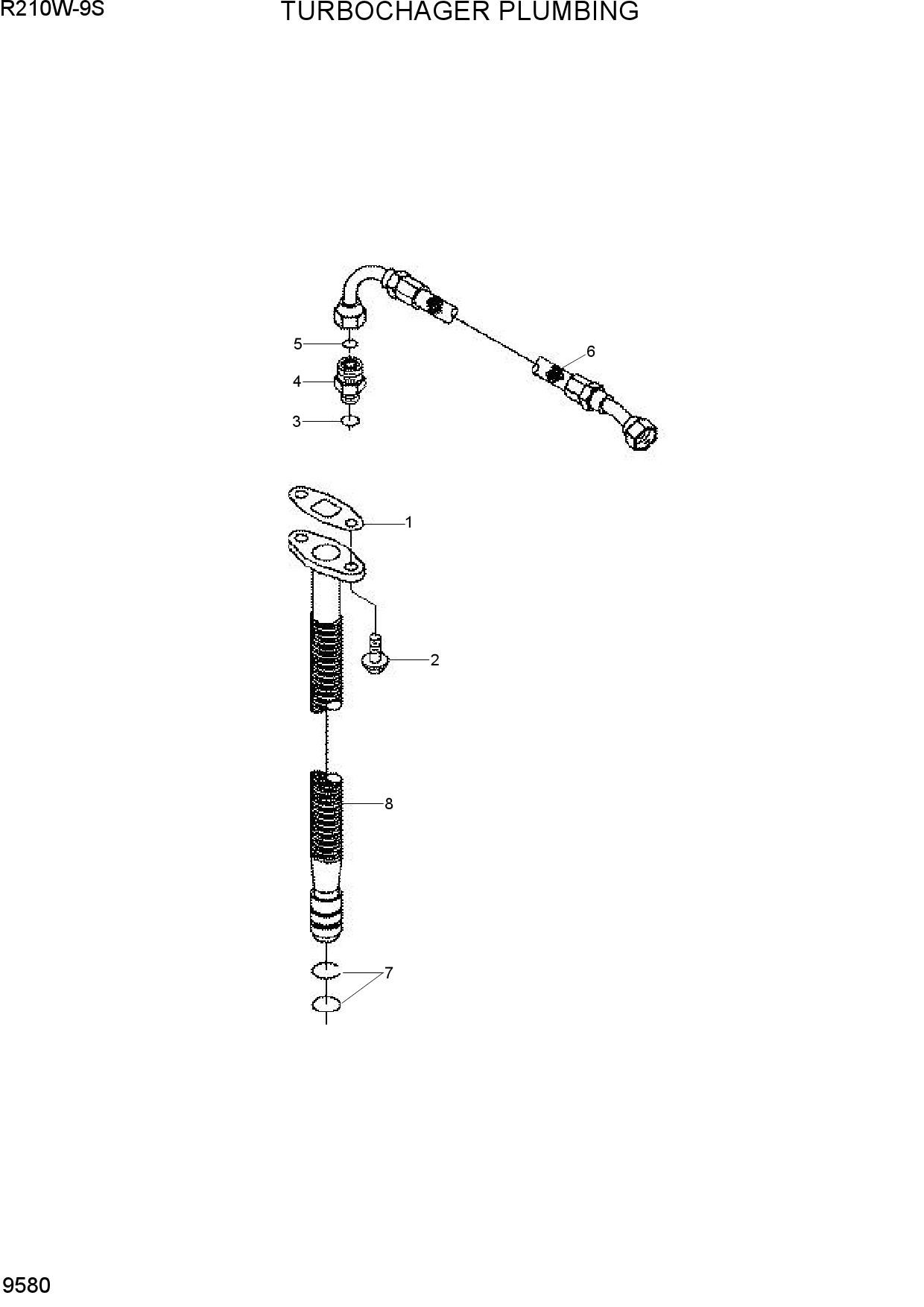

TURBOCHARGER PLUMBING

1 3937706

  • 3937706 - GASKET-OIL DRAIN
  • Поз.: 1

2 3900630

  • 3900630 - SCREW-HEX HEAD CAP
  • Поз.: 2

3 3678603

  • 3678603 - SEAL/O-RING
  • Поз.: 3

4 3922794

  • 3922794 - SEAL/O-RING
  • Поз.: 5

5 3282160

  • 3282160 - HOSE-FLEXIBLE
  • Поз.: 6

6 3928624

  • 3928624 - SEAL/O-RING
  • Поз.: 7
