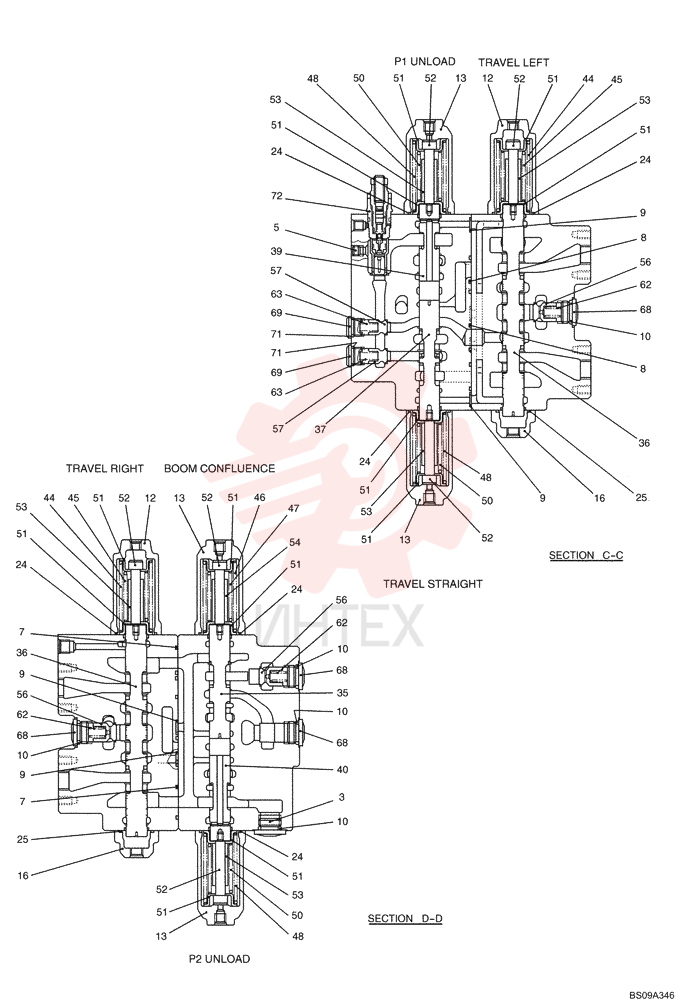

(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/
PLUG YN30V00001S154

PLUG YN30V00001S154

PLUG YN30V00001S154

1 YN30V00001S154

  • YN30V00001S154 - PLUG

2 NSS

  • NSS - NOT SOLD SEPARAT

3 ZD12P03800

  • ZD12P03800 - O-RING

4 ZD12G03000

  • ZD12G03000 - O-RING
  • 29.40mm ID x 35.60mm OD x 3.10mm

5 ZD12P01500

  • ZD12P01500 - O-RING

6 ZD12P02400

  • ZD12P02400 - O-RING

7 YN30V00101S201

  • YN30V00101S201 - GUARD

8 YN30V00101S202

  • YN30V00101S202 - GUARD

9 YN30V00001S205

  • YN30V00001S205 - COVER

10 ZD12G05000

  • ZD12G05000 - O-RING
  • 49.40mm ID x 55.60mm OD x 3.10mm

11 ZD12G04000

  • ZD12G04000 - O-RING
  • 39.40mm ID x 45.60mm OD x 3.10mm

12 YN30V00101S305

  • YN30V00101S305 - SPOOL

13 YN30V00101S306

  • YN30V00101S306 - REPAIR KIT

14 YN30V00101S307

  • YN30V00101S307 - SPOOL

15 YN30V00101S309

  • YN30V00101S309 - SPOOL

16 YN30V00101S310

  • YN30V00101S310 - SPOOL

17 2436U1165S371

  • 2436U1165S371 - SPRING

18 2436U1165S372

  • 2436U1165S372 - SPRING

19 YN30V00079S323

  • YN30V00079S323 - SPRING

20 YN30V00101S326

  • YN30V00101S326 - SPRING

21 YN30V00101S327

  • YN30V00101S327 - SPRING

22 YN30V00101S329

  • YN30V00101S329 - SPRING

23 2436U1443S332

  • 2436U1443S332 - SPRING SEAT

24 2436U1165S336

  • 2436U1165S336 - BOLT

25 2436U1165S335

  • 2436U1165S335 - STOP

26 YN30V00001S339

  • YN30V00001S339 - STOP

27 YN30V00101S341

  • YN30V00101S341 - HYDRAULIC VALVE

28 YW30V00001S513

  • YW30V00001S513 - POPPET

29 2436U1165S521

  • 2436U1165S521 - SPRING

30 YN30V00101S522

  • YN30V00101S522 - SPRING

31 YN30V00001S551

  • YN30V00001S551 - PLUG

32 YW30V00001S556

  • YW30V00001S556 - PLUG

33 ZD12P02000

  • ZD12P02000 - O-RING
  • 2.4mm Thk x 19.8mm ID
  • 90 Duro

34 YN22V00001F8

  • YN22V00001F8 - HYDRAULIC VALVE

35 YN30V00101R100

  • YN30V00101R100 - REPAIR KIT

36 YN30V00116R110

  • YN30V00116R110 - REPAIR KIT

37 YN30V00101R120

  • YN30V00101R120 - REPAIR KIT

38 YN30V00116R130

  • YN30V00116R130 - REPAIR KIT

39 YN30V00101R140

  • YN30V00101R140 - REPAIR KIT

40 YN30V00101R150

  • YN30V00101R150 - REPAIR KIT

41 YN30V00101R170

  • YN30V00101R170 - REPAIR KIT

42 YN30V00116R170

  • YN30V00116R170 - REPAIR KIT

43 YN30V00101R190

  • YN30V00101R190 - REPAIR KIT

44 YN30V00101R200

  • YN30V00101R200 - REPAIR KIT

45 YN30V00101R210

  • YN30V00101R210 - REPAIR KIT

46 YN30V00101R220

  • YN30V00101R220 - SPOOL
