(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

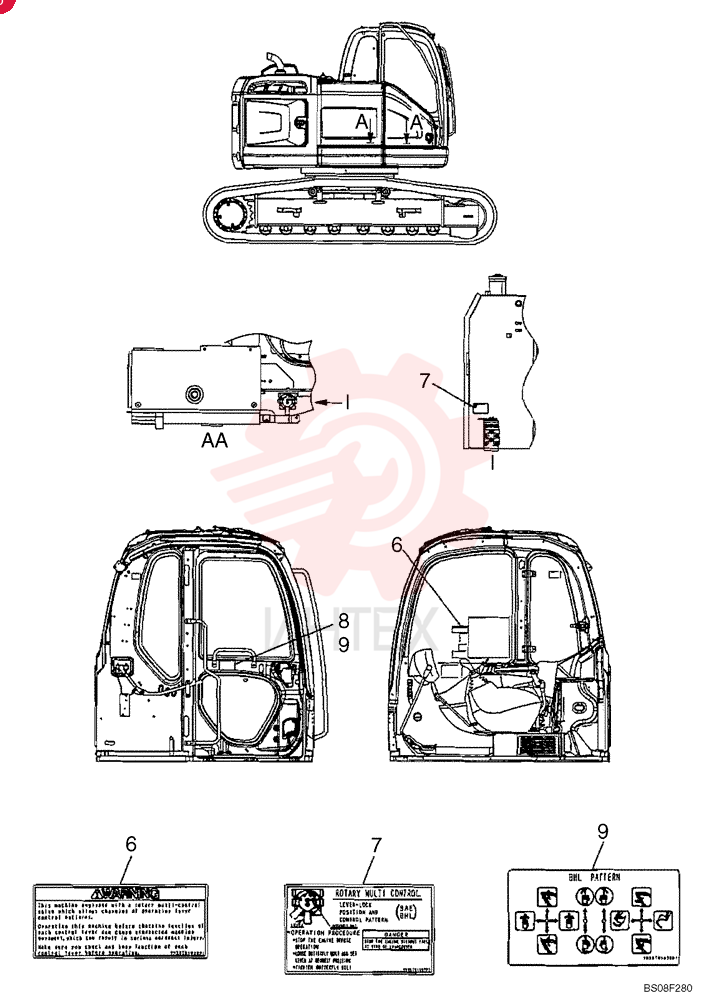

WARNING DECAL YN20T01039P1

WARNING DECAL YN20T01039P1

WARNING DECAL YN20T01039P1

1 YN20T01039P1

  • YN20T01039P1 - WARNING DECAL

2 YF20T01197P1

  • YF20T01197P1 - Decal
  • Rotary Multi Control Lever-Lock Position and Control Pattern. …

3 YN20T01475P1

  • YN20T01475P1 - LABEL

4 YN20T01476P1

  • YN20T01476P1 - LABEL
