(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

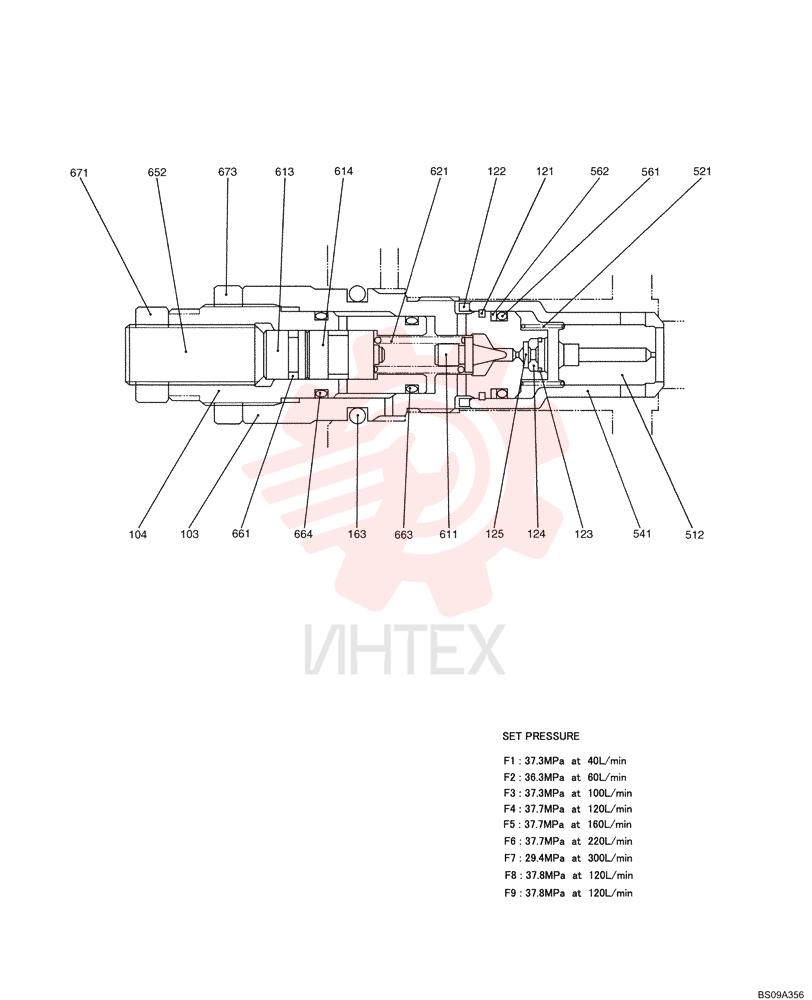

VALVE PRESSURE RELIE YN22V00001F1 (1)

VALVE PRESSURE RELIE YN22V00001F1 (1)

VALVE PRESSURE RELIE YN22V00001F1 (1)

1 YN22V00001F1

  • YN22V00001F1 - VALVE PRESSURE RELIE

2 NSS

  • NSS - NOT SOLD SEPARAT

3 NSS

  • NSS - NOT SOLD SEPARAT

4 YN22V00001S121

  • YN22V00001S121 - RING

5 YN22V00001S122

  • YN22V00001S122 - SPACER

6 NSS

  • NSS - NOT SOLD SEPARAT

7 NSS

  • NSS - NOT SOLD SEPARAT

8 NSS

  • NSS - NOT SOLD SEPARAT

9 ZD12P02500

  • ZD12P02500 - O-RING

10 NSS

  • NSS - NOT SOLD SEPARAT

11 YN22V00001S521

  • YN22V00001S521 - SPRING

12 NSS

  • NSS - NOT SOLD SEPARAT

13 YN22V00001S561

  • YN22V00001S561 - O-RING

14 YN22V00001S562

  • YN22V00001S562 - BACK-UP RING

15 NSS

  • NSS - NOT SOLD SEPARAT

16 YN22V00001S613

  • YN22V00001S613 - STOP

17 NSS

  • NSS - NOT SOLD SEPARAT

18 2436R750S512

  • 2436R750S512 - SPRING

19 YN22V00001S652

  • YN22V00001S652 - SCREW

20 ZD12P00800

  • ZD12P00800 - O-RING
  • 1.9mm Thk x 7.8mm ID
  • 90 Duro

21 ZD12P01400

  • ZD12P01400 - O-RING

22 ZD12P01600

  • ZD12P01600 - O-RING

23 YN22V00001S671

  • YN22V00001S671 - LOCK NUT

24 2436U1281S612

  • 2436U1281S612 - LOCK NUT
