(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

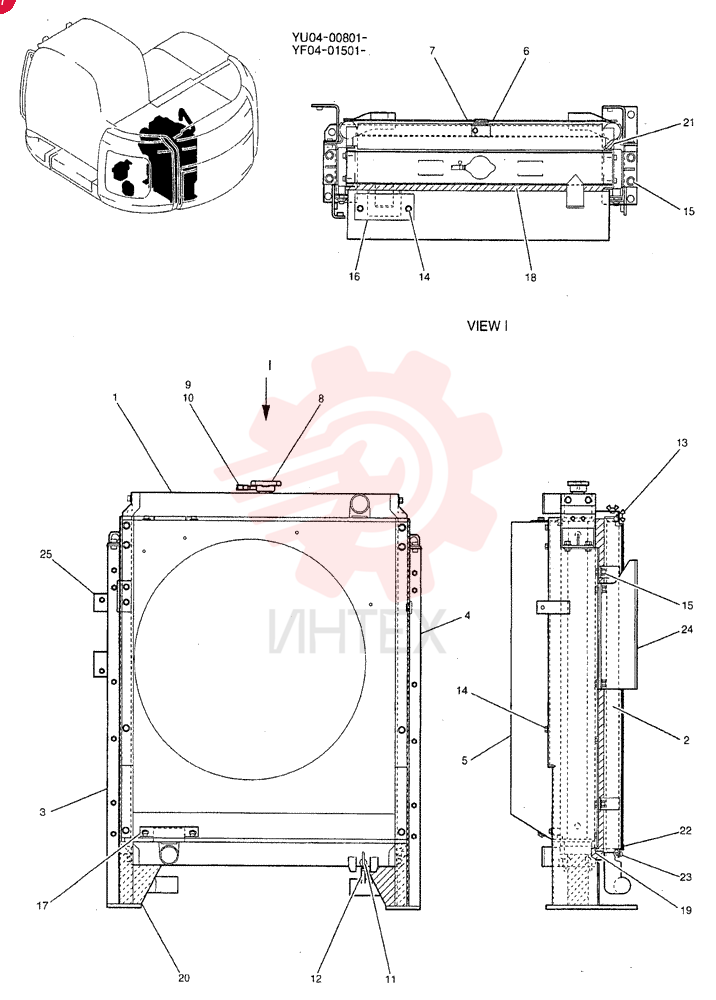

RADIATOR YF05P00001F1

RADIATOR YF05P00001F1

RADIATOR YF05P00001F1

1 YF05P00001F1

  • YF05P00001F1 - RADIATOR

2 YN05P00035S001

  • YN05P00035S001 - RADIATOR

3 YF05P00001S002

  • YF05P00001S002 - OIL COOLER

4 YF05P00001S003

  • YF05P00001S003 - SUPPORT

5 YF05P00001S004

  • YF05P00001S004 - SUPPORT

6 YF05P00001S005

  • YF05P00001S005 - SHROUD

7 YN05P00029S007

  • YN05P00029S007 - GUARD

8 YN05P00029S008

  • YN05P00029S008 - GUARD

9 YN05P00010S006

  • YN05P00010S006 - RADIATOR CAP

10 2452U416S4

  • 2452U416S4 - HOSE

11 2452U267S8

  • 2452U267S8 - CLIP

12 YN05P00010S007

  • YN05P00010S007 - COCK
  • DRAIN

13 YN05P00029S013

  • YN05P00029S013 - FLEXIBLE HOSE

14 2452U202S5

  • 2452U202S5 - BOLT

15 2452U405S26

  • 2452U405S26 - BOLT

16 2452U400S4

  • 2452U400S4 - BOLT

17 YN05P00029S017

  • YN05P00029S017 - PLATE

18 YN05P00029S018

  • YN05P00029S018 - PLATE

19 YN05P00024S017

  • YN05P00024S017 - PACKING

20 YN05P00029S020

  • YN05P00029S020 - PACKING

21 YF05P00001S020

  • YF05P00001S020 - PACKING

22 YN05P00029S022

  • YN05P00029S022 - PACKING

23 YN05P00029S023

  • YN05P00029S023 - PLATE

24 YN05P00007S016

  • YN05P00007S016 - BOLT

25 YF05P00001S024

  • YF05P00001S024 - U-BRACKET

26 YF05P00001S025

  • YF05P00001S025 - U-BRACKET
