New Holland Construction
/
(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

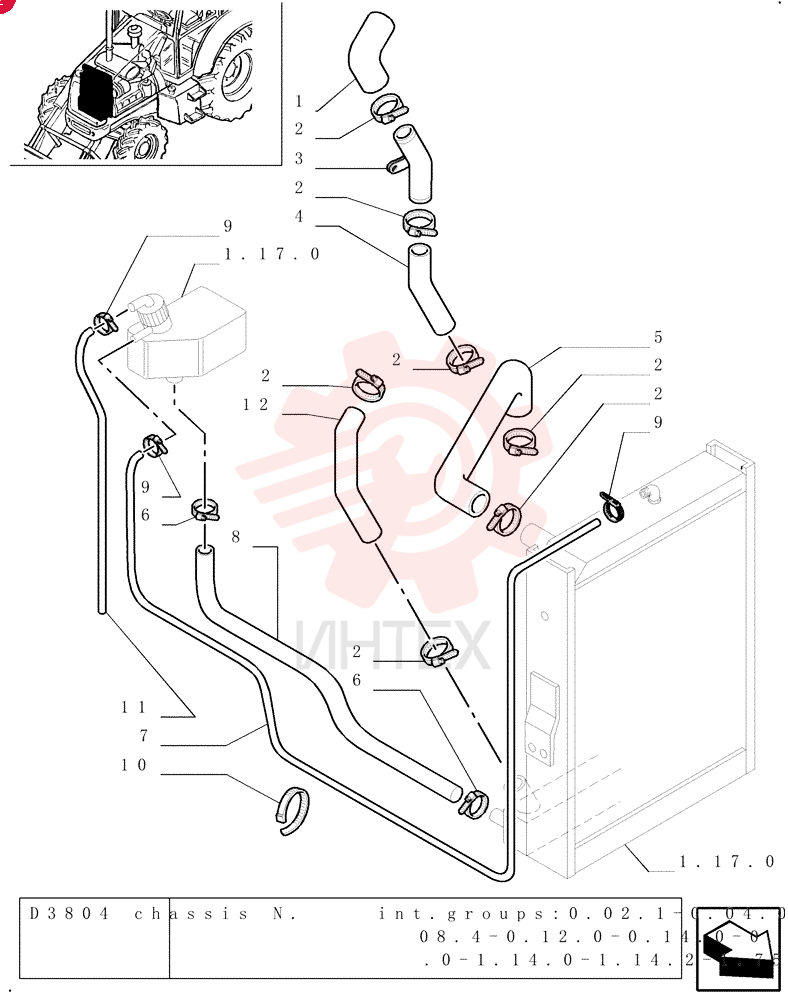

RADIATOR HOSE,45.00 mm ID x 120.00 mm

RADIATOR HOSE,45.00 mm ID x 120.00 mm

RADIATOR HOSE,45.00 mm ID x 120.00 mm

1 85802672

  • 85802672 - RADIATOR HOSE
  • 45.00 mm ID x 120.00 mm

2 85803012

  • 85803012 - HOSE CLAMP

3 85802673

  • 85802673 - TUBE
  • 45 mm OD x 192.5
  • 75 mm L

4 85803452

  • 85803452 - RADIATOR HOSE
  • 42.00 mm ID
  • 45.00 mm ID x 193.80 mm

5 85802670

  • 85802670 - RADIATOR HOSE
  • 38.00 mm ID x 282.00 mm

6 85803013

  • 85803013 - HOSE CLAMP

7 85802876

  • 85802876 - FLEXIBLE HOSE
  • 1000.00 mm

8 85802877

  • 85802877 - HOSE
  • 25mm ID x 1200mm L

9 85824381

  • 85824381 - HOSE CLAMP
  • 8mm - 16mm

10 14560187

  • 14560187 - COLLAR
  • 199mm L

11 85803226

  • 85803226 - FLEXIBLE HOSE
  • 7mm ID x 1000mm L

12 85805356

  • 85805356 - RADIATOR HOSE
  • 45.00 mm ID x 166.50 mm
