New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

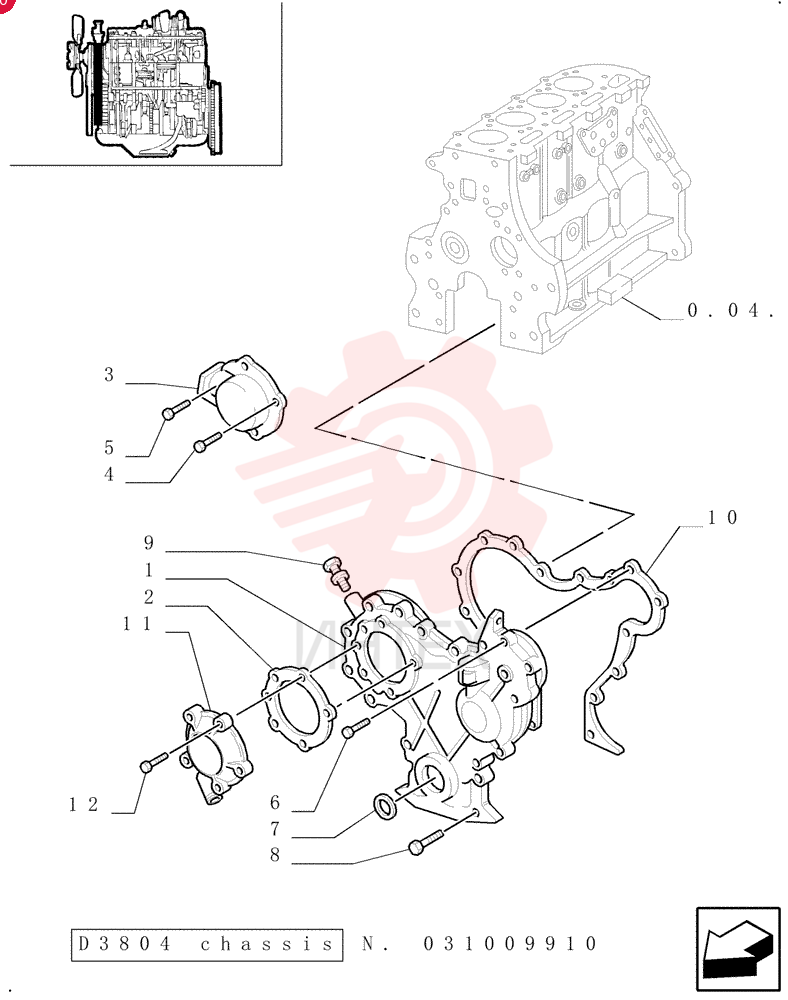

COVER 87800077

COVER 87800077

COVER 87800077

1 87800077

  • 87800077 - COVER

2 83959395

  • 83959395 - GASKET
  • 1.32mm Thk

3 87800681

  • 87800681 - COVER

4 82851915

  • 82851915 - BOLT

5 87800191

  • 87800191 - BOLT
  • Hex Flg
  • 5/16" - 18 x 1.75"

6 86977730

  • 86977730 - SERRATED SCREW
  • 3/8" - 16 x 2 1/2"

7 87800696

  • 87800696 - SEAL

8 56126S36

  • 56126S36 - BOLT

9 56128S36

  • 56128S36 - BOLT

10 81876948

  • 81876948 - BOLT
  • Hex Flg
  • 3/8 - 16" x 2"

11 83958605

  • 83958605 - BOLT

12 83907851

  • 83907851 - FILLER CAP

13 83959876

  • 83959876 - GASKET
  • 0.89mm Thk

14 81818181

  • 81818181 - COVER

15 56523S36

  • 56523S36 - BOLT
