New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

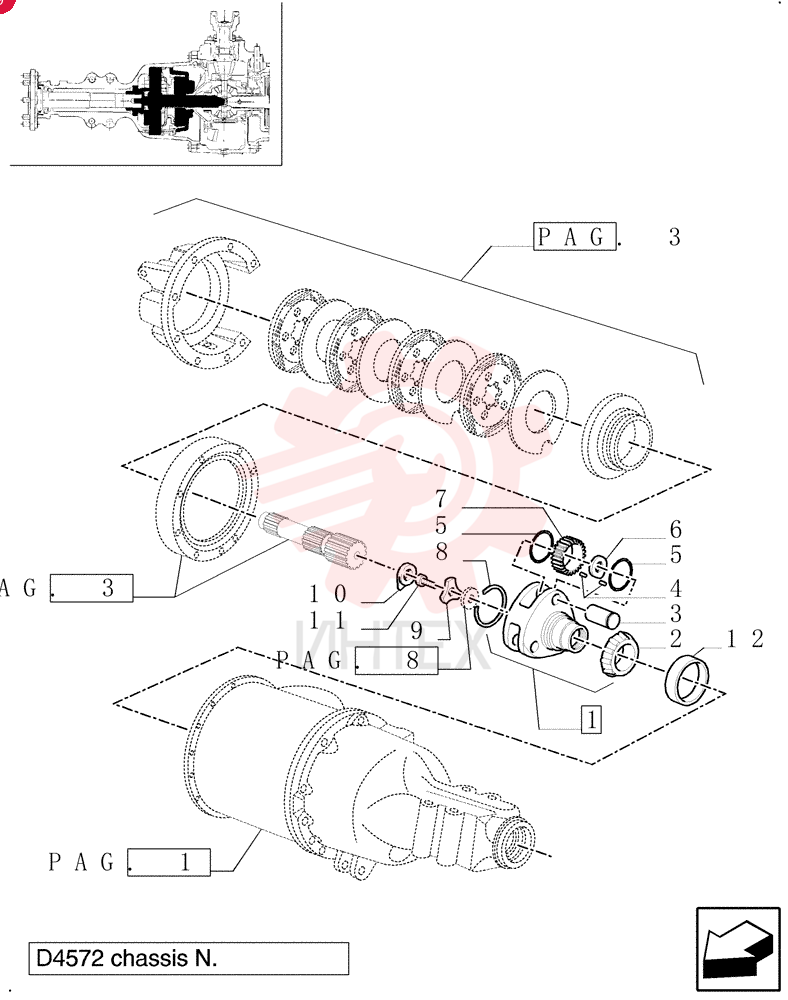

PINION CARRIER 86546391 (2)

PINION CARRIER 86546391 (2)

PINION CARRIER 86546391 (2)

1 86546391

  • 86546391 - PINION CARRIER

2 81854753

  • 81854753 - ROLLER BEARING
  • 82.55mm ID x 25.4mm W

3 81820849

  • 81820849 - SHAFT

4 81803295

  • 81803295 - BEARING SET

5 81803273

  • 81803273 - THRUST WASHER
  • 32.82mm ID x 57.4mm OD x 0.81mm Thk

6 81803275

  • 81803275 - SHIM
  • 32.82mm ID x 48.51mm OD x 1.19mm Thk

7 86584272

  • 86584272 - PLANETARY GEAR

8 81820846

  • 81820846 - SNAP RING
  • 2.08mm Thk
  • Ext

9 87326170

  • 87326170 - WASHER

10 83949811

  • 83949811 - LOCKING PLATE

11 81846884

  • 81846884 - SCREW

12 81825865

  • 81825865 - BEARING CUP
  • 125.41mm OD x 19.84mm W
