(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

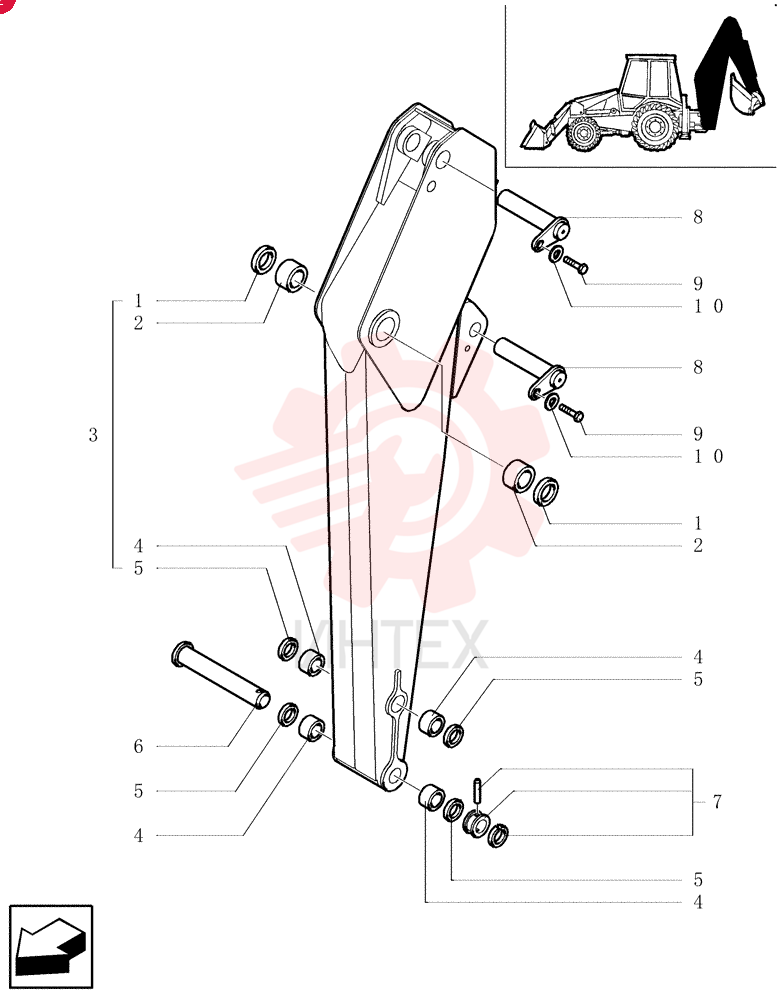

SEAL 9824067

SEAL 9824067

SEAL 9824067

1 9824067

  • 9824067 - SEAL

2 83910546

  • 83910546 - BUSHING
  • 55.18mm ID x 71.01mm OD x 50.5mm L

3 85801333

  • 85801333 - DIPPER

4 D7NNC512H

  • D7NNC512H - BUSHING

5 D9NNC513BA

  • D9NNC513BA - SEAL

6 85803005

  • 85803005 - PIN
  • 45mm OD x 319mm L

7 85802975

  • 85802975 - LINCH PIN
  • 10mm OD x 64.5mm L

8 85803002

  • 85803002 - PIN
  • 45mm OD x 199mm L

9 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9

10 11200271

  • 11200271 - BELLEVILLE WASHER
  • M16 Bolt Size x 34mm OD x 4.4mm Thk
