New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

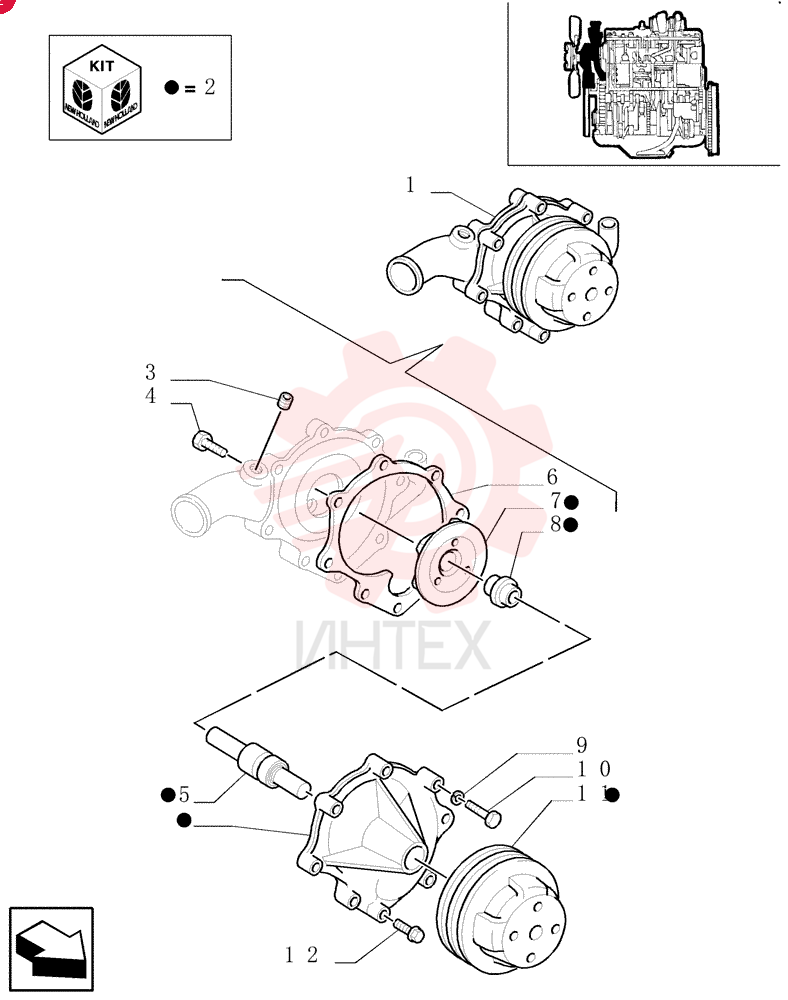

WATER PUMP 87800118 (2)

WATER PUMP 87800118 (2)

WATER PUMP 87800118 (2)

1 87800118

  • 87800118 - WATER PUMP

2 87800118R

  • 87800118R - REMAN-WATER PUMP

3 87800118C

  • 87800118C - CORE-WATER PUMP

4 87800109

  • 87800109 - KIT
  • WATER PUMP REPA

5 FAPN8A513DDGV

  • FAPN8A513DDGV - WATER PUMP

6 87800109R

  • 87800109R - REMAN-WATER PUMP

7 87800109C

  • 87800109C - CORE-WATER PUMP

8 87652S36

  • 87652S36 - PLUG

9 E7NN8519AA

  • E7NN8519AA - PLUG

10 83991495

  • 83991495 - BEARING ASSY
  • 38.1mm OD x 127.76mm L

11 83959398

  • 83959398 - GASKET
  • 0.89mm Thk

12 83926005

  • 83926005 - IMPELLER

13 81870468

  • 81870468 - SEAL

14 80681

  • 80681 - LOCK WASHER
  • 5/16"

15 88275

  • 88275 - BOLT
  • Hex
  • 5/16" - 18 x 1 1/2"
  • Gr 5

16 83903421

  • 83903421 - PULLEY
  • 145.03mm OD

17 82934397

  • 82934397 - BOLT
  • Hex
  • 5/16" - 18 x 1-1/2"
  • Gr 5
