(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

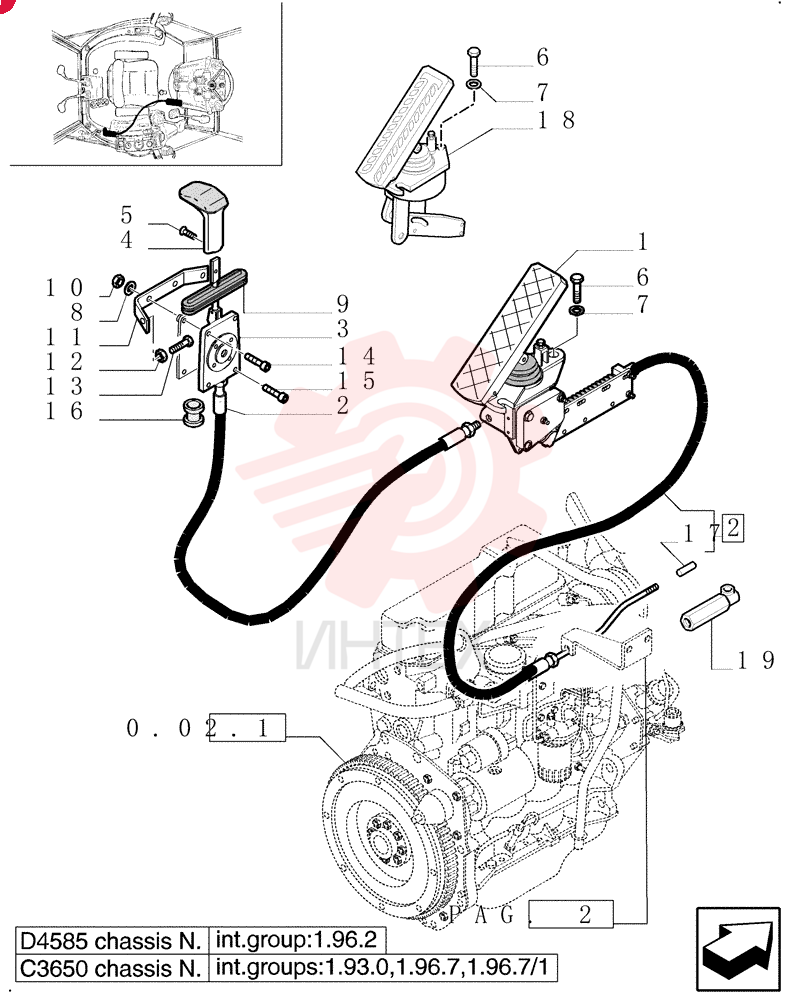

PEDAL 85802906

PEDAL 85802906

PEDAL 85802906

1 85802906

  • 85802906 - PEDAL

2 85811974

  • 85811974 - PEDAL

3 85802904

  • 85802904 - CABLE
  • 2400mm L

4 85813099

  • 85813099 - CABLE

5 85802905

  • 85802905 - LEVER

6 85813097

  • 85813097 - LEVER

7 82002692

  • 82002692 - KNOB

8 13312721

  • 13312721 - SCREW
  • Cross Oval Hd
  • M6 x 10mm

9 10902424

  • 10902424 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8
  • Full Thd

10 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

11 12637821

  • 12637821 - WASHER
  • 5.15mm ID x 11mm OD x 1mm Thk

12 85803380

  • 85803380 - BOOT

13 86639241

  • 86639241 - NUT
  • Prev Torque
  • M5 x 0.8
  • Cl 8

14 85802147

  • 85802147 - MOUNTING PLATE

15 15896221

  • 15896221 - NUT
  • Hex
  • M6
  • 5.20mm High
  • Cl 10

16 13276911

  • 13276911 - SCREW
  • Pozidriv Pan Hd
  • M6 x 35mm

17 13311817

  • 13311817 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 40mm
  • Cl 5.8

18 13311617

  • 13311617 - SCREW
  • Pozidriv Oval Csk Hd
  • M5 x 30mm
  • Cl 5.8

19 85801941

  • 85801941 - GROMMET
  • 14mm ID x 24.5mm OD x 14.5mm Thk

20 9969209

  • 9969209 - BALL JOINT HEAD

21 85813140

  • 85813140 - BALL JOINT HEAD

22 85813096

  • 85813096 - PEDAL

23 85817688

  • 85817688 - BALL JOINT HEAD
