(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

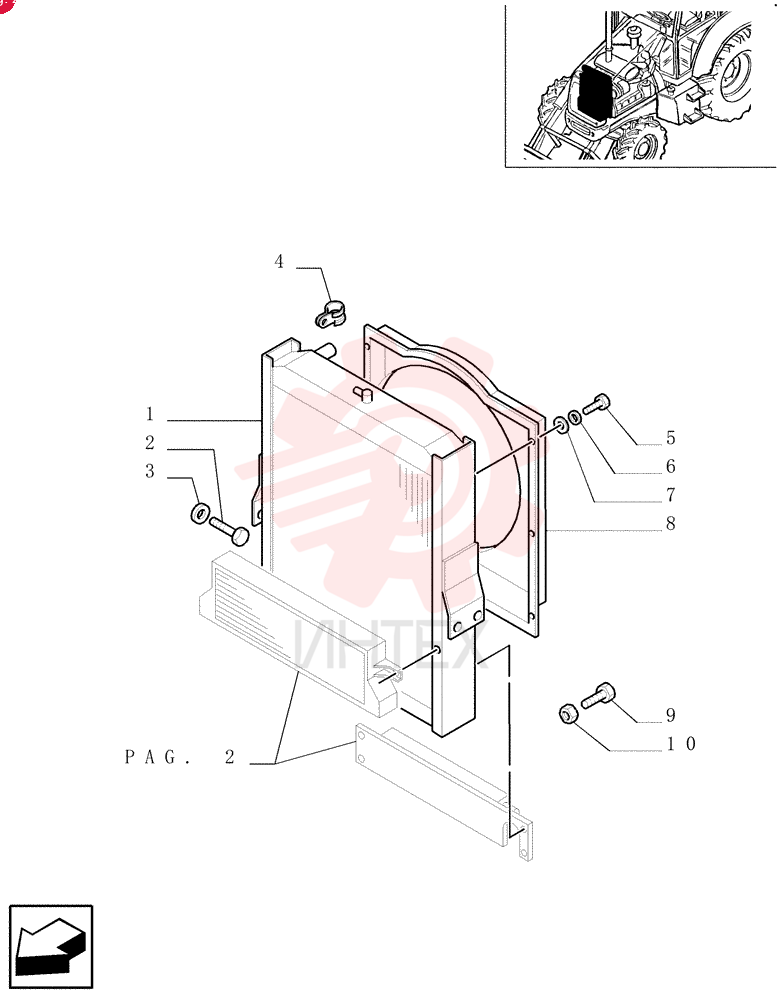

RADIATOR 85802858

RADIATOR 85802858

RADIATOR 85802858

1 85802858

  • 85802858 - RADIATOR

2 85802859

  • 85802859 - RADIATOR

3 15540424

  • 15540424 - SCREW
  • Hex
  • M12 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd

4 11190879

  • 11190879 - BELLEVILLE WASHER
  • M12 Bolt Size x 30mm OD

5 10450490

  • 10450490 - CLAMP
  • 16mm
  • Coat
  • 9mm Bolt Hole
  • P Type

6 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

7 10569279

  • 10569279 - LOCK WASHER

8 14496429

  • 14496429 - WASHER
  • 6.4mm ID x 12.5mm OD x 1.6mm Thk

9 85802860

  • 85802860 - SHROUD

10 16044821

  • 16044821 - SCREW
  • Hex
  • M8 x 80mm
  • Cl 8.8

11 16100821

  • 16100821 - NUT
  • M8
  • Cl 10
