New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

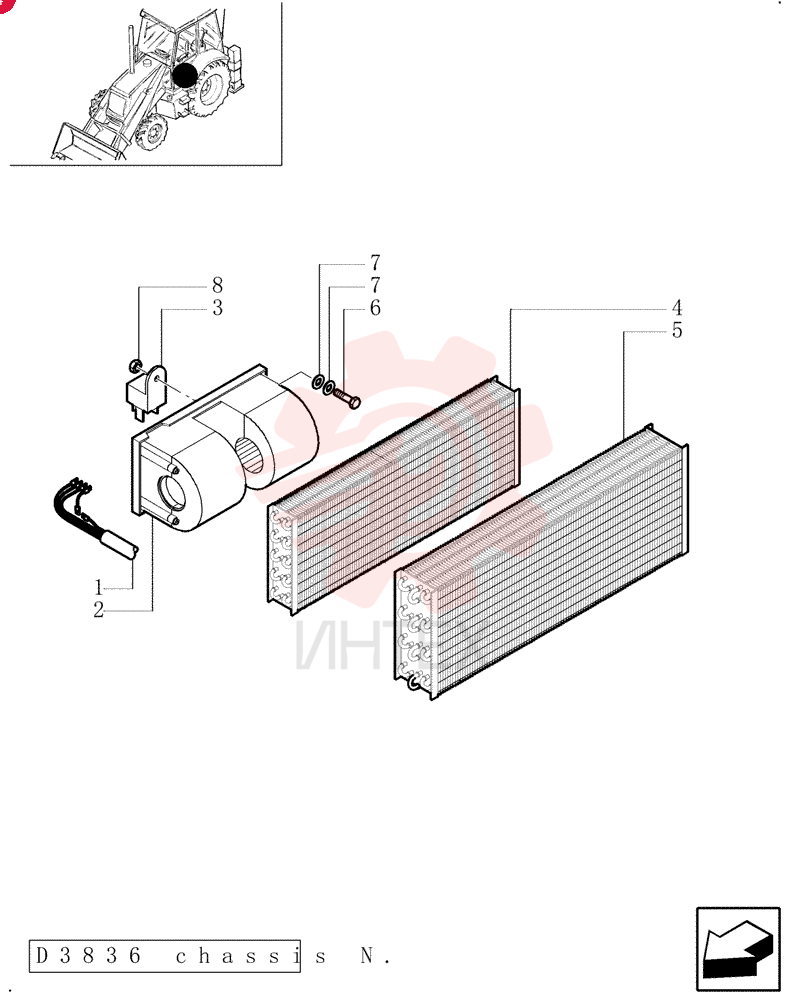

WIRE HARNESS 85804048 (1)

WIRE HARNESS 85804048 (1)

WIRE HARNESS 85804048 (1)

1 85804048

  • 85804048 - WIRE HARNESS

2 85811971

  • 85811971 - WIRE HARNESS

3 85813079

  • 85813079 - ELECTRIC BLOWER

4 85804041

  • 85804041 - RESISTOR

5 85808306

  • 85808306 - CORE

6 85804034

  • 85804034 - EVAPORATOR

7 10902424

  • 10902424 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8
  • Full Thd

8 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

9 10720121

  • 10720121 - NUT
  • M6
  • Cl 10
