(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

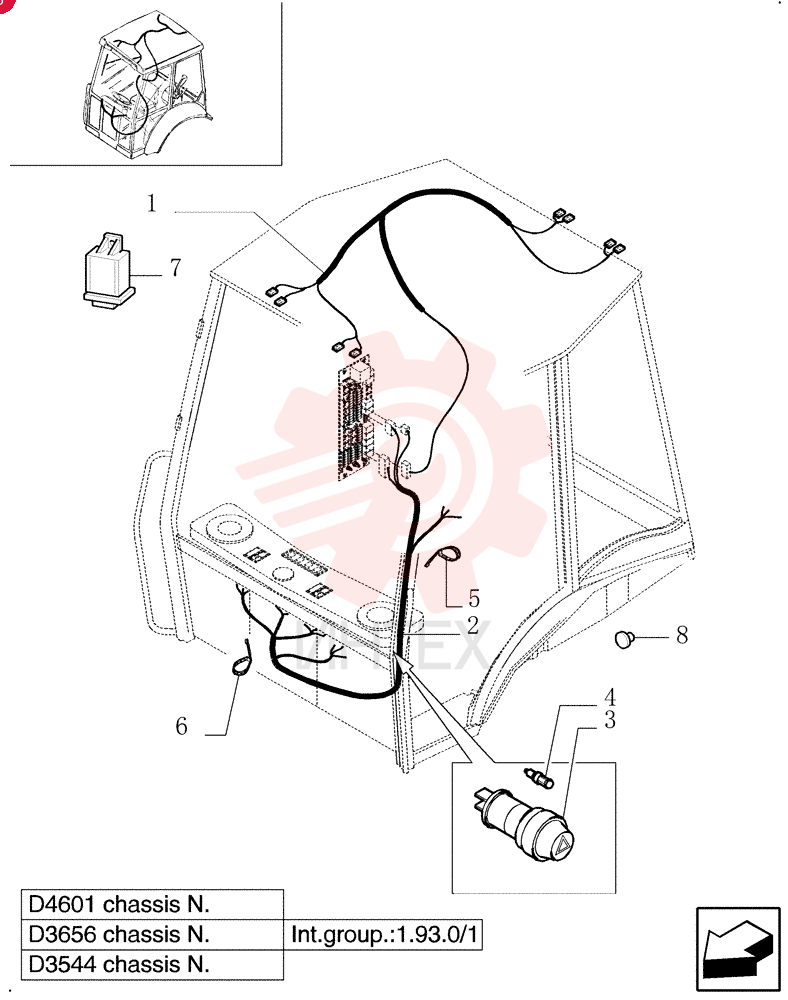

WIRE HARNESS 85802594

WIRE HARNESS 85802594

WIRE HARNESS 85802594

1 85802594

  • 85802594 - WIRE HARNESS

2 85804728

  • 85804728 - WIRE HARNESS

3 85802595

  • 85802595 - WIRE HARNESS

4 85804730

  • 85804730 - WIRE HARNESS

5 85806139

  • 85806139 - WIRE HARNESS

6 85806133

  • 85806133 - FLASHER SWITCH

7 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W

8 5143428

  • 5143428 - CABLE TIE
  • 116mm L

9 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

10 85806132

  • 85806132 - FLASHER UNIT

11 85808460

  • 85808460 - PLUG
