(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

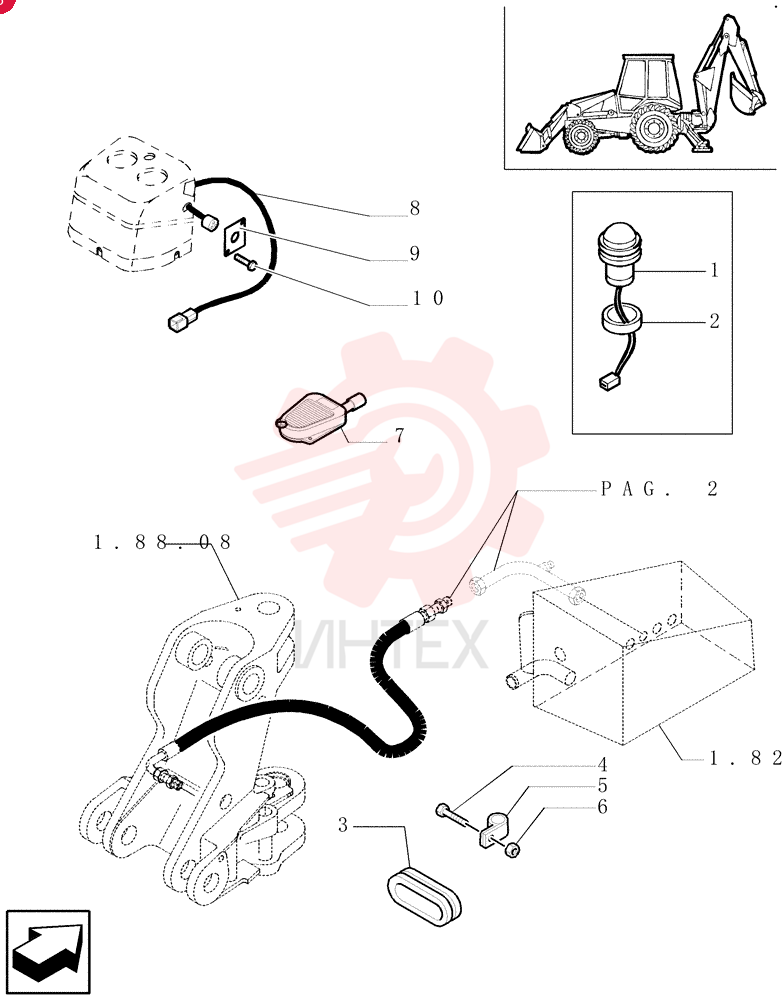

SWITCH 85804458

SWITCH 85804458

SWITCH 85804458

1 85804458

  • 85804458 - SWITCH

2 85803488

  • 85803488 - SPACER

3 71431555

  • 71431555 - RUBBER BUSHING

4 15970724

  • 15970724 - SCREW
  • Hex
  • M10 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

5 85802890

  • 85802890 - CLAMP
  • 28mm
  • Coat
  • 12.5mm Bolt Hole
  • P Type

6 12574511

  • 12574511 - LOCK NUT
  • M10 x 1.25
  • Cl 8

7 85807891

  • 85807891 - SWITCH ASSY

8 85819237

  • 85819237 - WIRE HARNESS

9 85816760

  • 85816760 - PLATE

10 13272477

  • 13272477 - SCREW
  • Pozidriv Pan Hd
  • M4 x 20mm
  • Full Thd
  • SST
