(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

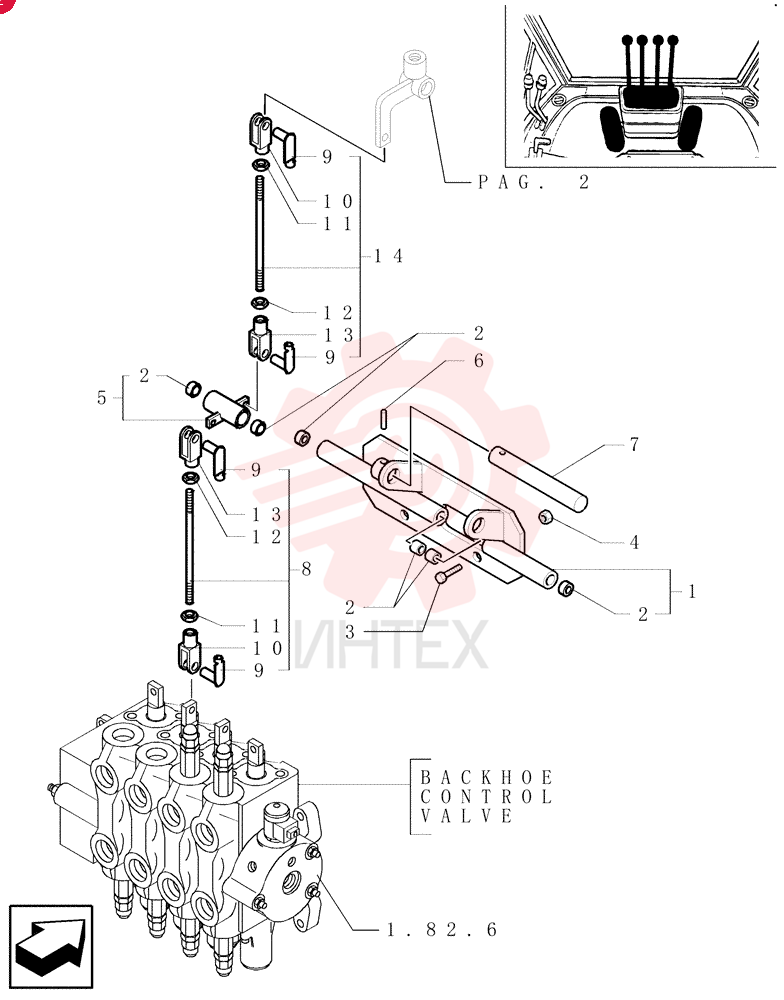

SUPPORT 85805040

SUPPORT 85805040

SUPPORT 85805040

1 85805040

  • 85805040 - SUPPORT

2 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

3 16043624

  • 16043624 - SCREW
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

4 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

5 85805043

  • 85805043 - BELLCRANK

6 13940370

  • 13940370 - ROLL PIN
  • M5 x 26
  • Coiled

7 85805042

  • 85805042 - PIN

8 85803447

  • 85803447 - TIE-ROD

9 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

10 10007871

  • 10007871 - YOKE
  • 8mm ID Pin Hole
  • M8 x 42mm L

11 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

12 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

13 11991971

  • 11991971 - CLEVIS
  • M8

14 85805046

  • 85805046 - TIE-ROD
