(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

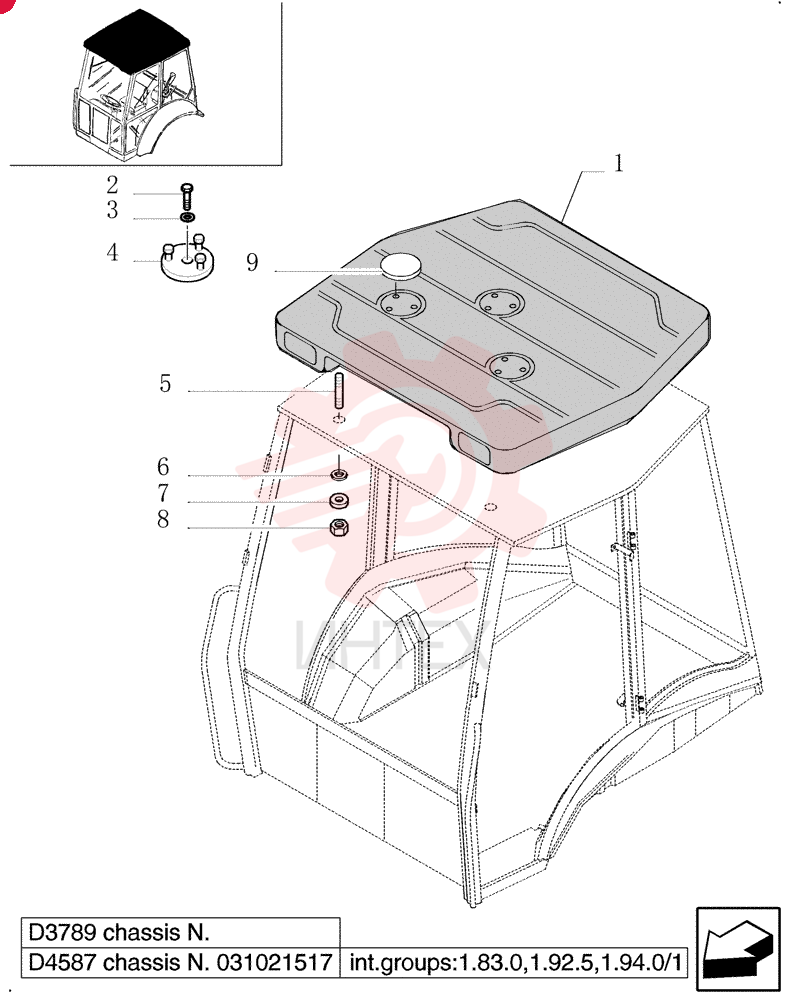

ROOF 85805760

ROOF 85805760

ROOF 85805760

1 85805760

  • 85805760 - ROOF

2 85817204

  • 85817204 - ROOF

3 13276017

  • 13276017 - SCREW
  • Pozidriv Pan Hd
  • M6 x 12mm
  • Cl 5.8
  • Full Thd

4 10519404

  • 10519404 - WASHER
  • 6.4mm ID x 11.95mm OD x 1.6mm Thk

5 85802113

  • 85802113 - PLATE

6 13517020

  • 13517020 - STUD

7 85801801

  • 85801801 - RUBBER SEAL
  • 6mm ID x 24mm OD x 2mm Thk

8 12646904

  • 12646904 - WASHER
  • 12.2mm ID x 28mm OD x 3mm Thk

9 14048221

  • 14048221 - NUT
  • M8 x 1.25
  • Cl 10

10 85807835

  • 85807835 - FLANGE
