New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

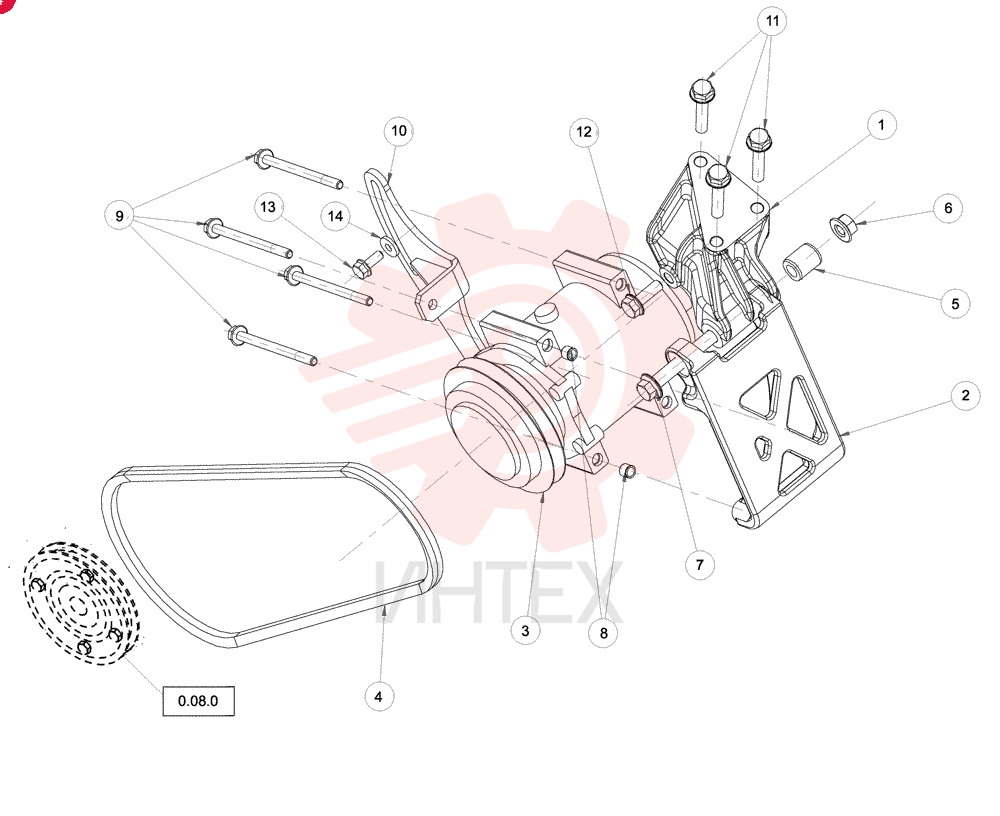

SUPPORT 2852622

SUPPORT 2852622

SUPPORT 2852622

1 2852622

  • 2852622 - SUPPORT

2 2852623

  • 2852623 - SUPPORT

3 87430122

  • 87430122 - AIRCOND. COMPRESSOR

4 84159489R

  • 84159489R - REMAN-COMPRESSOR
  • 12V
  • W/ Clutch
  • W/ Pulley

5 84159489C

  • 84159489C - CORE-COMPRESSOR

6 2852625

  • 2852625 - BELT

7 98433179

  • 98433179 - SPACER

8 2852627

  • 2852627 - FLANGE NUT
  • Hex
  • M12 x 1.75

9 2852925

  • 2852925 - SCREW
  • Hex
  • M12 x 1.75 x 130mm

10 4895227

  • 4895227 - GUIDE RING
  • 11.15mm OD
  • 8.5mm ID
  • 9mm L

11 2852628

  • 2852628 - SCREW
  • Hex
  • M8 x 1.25 x 105mm

12 2852629

  • 2852629 - TENSIONER

13 2852630

  • 2852630 - FLANGE BOLT
  • Hex
  • M10 x 1.5 x 55mm

14 16675834

  • 16675834 - SCREW
  • M10 x 1.5 x 30mm

15 87803136

  • 87803136 - SCREW

16 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk
