New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

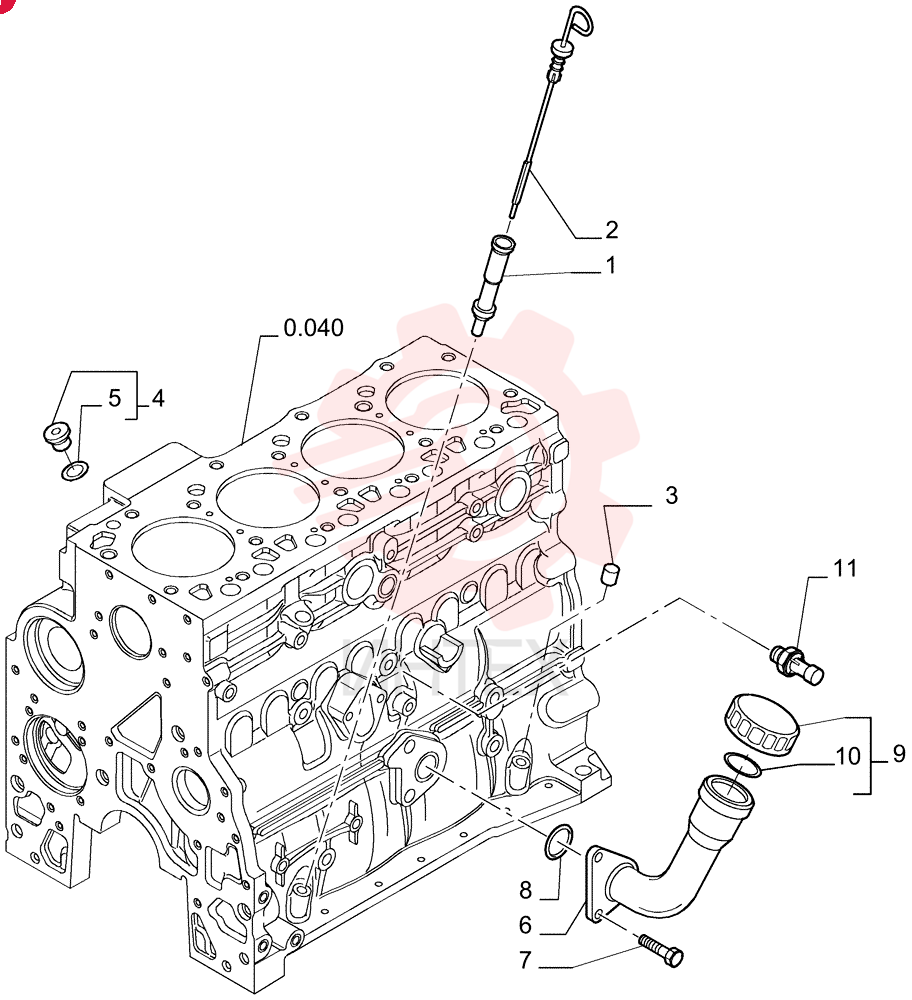

TUBE,81 mm Length 2852122 (1)

TUBE,81 mm Length 2852122 (1)

TUBE,81 mm Length 2852122 (1)

1 2852122

  • 2852122 - TUBE
  • 81 mm Length

2 2852125

  • 2852125 - DIPSTICK
  • 351.5mm L

3 4899036

  • 4899036 - PLUG

4 4897330

  • 4897330 - HEX SOCKET PLUG
  • M12 x 1.5

5 4895610

  • 4895610 - O-RING
  • 2.2mm Thk x 9.3mm ID

6 2853407

  • 2853407 - NECK FILLER
  • 143
  • 117.3 mm Length

7 2852134

  • 2852134 - FLANGE BOLT
  • Hex
  • M12 x 1.75 x 25mm

8 2852135

  • 2852135 - O-RING
  • 2.6mm Thk x 37.7mm ID

9 2853410

  • 2853410 - FILLER CAP
  • Female

10 2853412

  • 2853412 - O-RING
  • 0.21" Thk x 1.475" ID

11 2852889

  • 2852889 - PRESSURE SWITCH
