(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

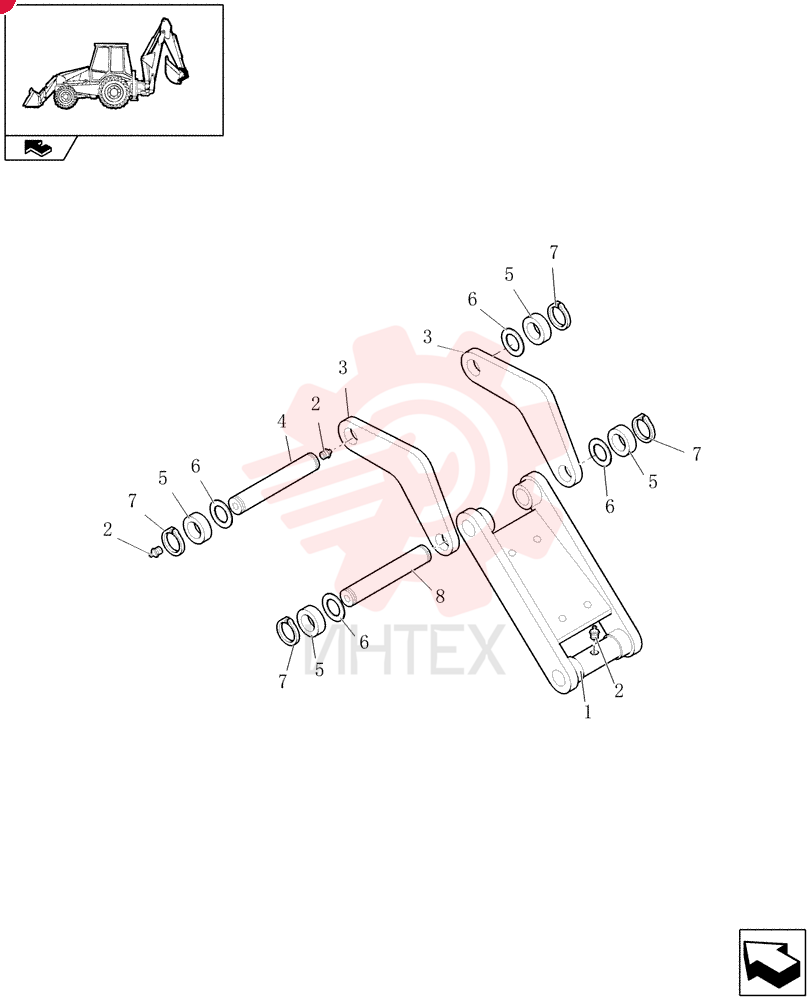

LINK 85803613

LINK 85803613

LINK 85803613

1 85803613

  • 85803613 - LINK

2 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

3 85817133

  • 85817133 - LINK CONROD

4 85815517

  • 85815517 - PIN
  • 45mm OD x 272mm L

5 85818916

  • 85818916 - SHIM
  • 46mm ID x 70mm OD x 1mm Thk

6 83910977

  • 83910977 - SPACER
  • 45.37mm ID x 66.5mm OD x 3.5mm L

7 11069071

  • 11069071 - SNAP RING
  • M45
  • Ext

8 85813469

  • 85813469 - PIN
  • 45mm OD x 272mm L
