New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

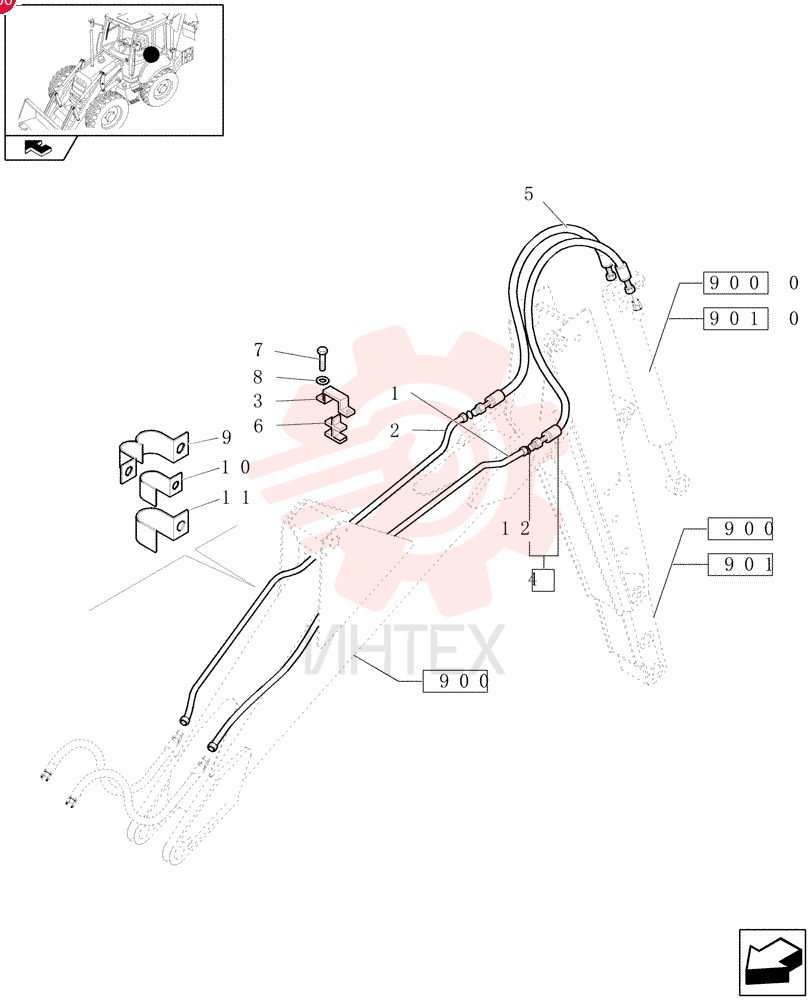

TUBE 85815642 (1)

TUBE 85815642 (1)

TUBE 85815642 (1)

1 85815642

  • 85815642 - TUBE

2 85815640

  • 85815640 - TUBE

3 85803402

  • 85803402 - PLATE

4 87619506

  • 87619506 - FLEXIBLE HOSE
  • 12.7mm ID x 1165mm L

5 84150355

  • 84150355 - HOSE
  • 10mm ID x 1150mm L
  • SAE 100R16

6 85802532

  • 85802532 - HOSE CLIP

7 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

8 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

9 85802529

  • 85802529 - CLAMP
  • 12.5-16.5mm ID

10 85802527

  • 85802527 - CLAMP
  • 12.5mm ID

11 85802528

  • 85802528 - CLAMP
  • 16.5mm ID

12 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro
