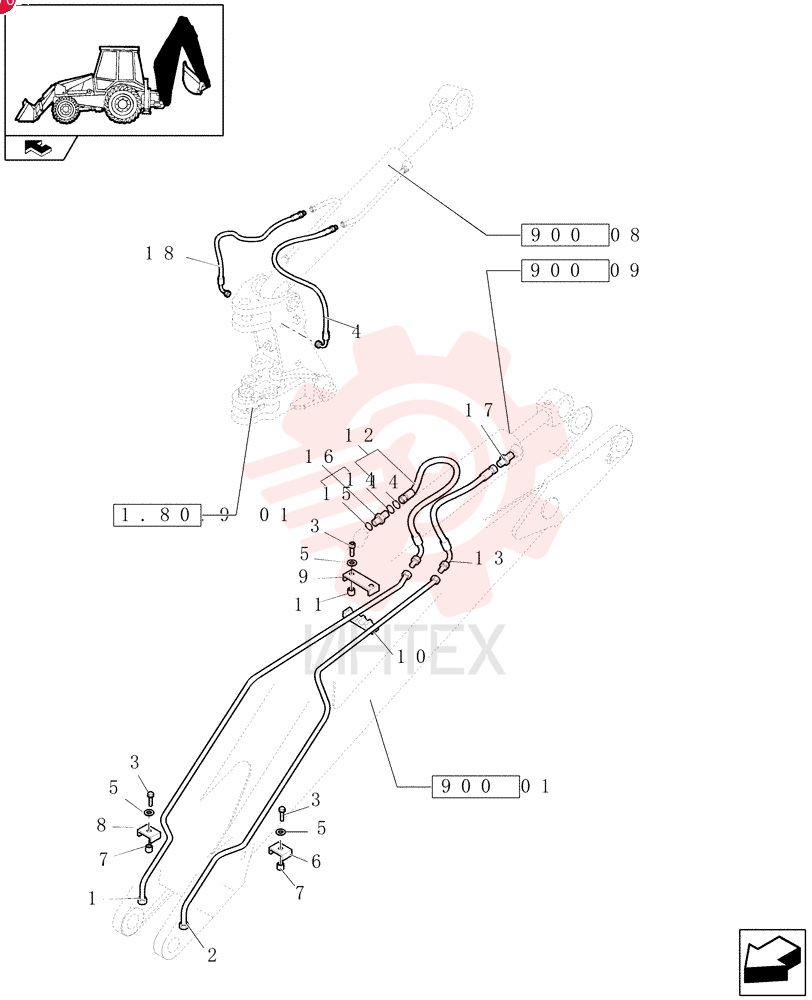

TUBE 85815632
1 85815632
- 85815632 - TUBE
2 85815630
- 85815630 - TUBE
3 16044421
- 16044421 - SCREW
- Hex
- M8 x 60mm
- Cl 8.8
4 87619512
- 87619512 - FLEXIBLE HOSE
- 12.7mm ID x 650mm L
5 11193979
- 11193979 - BELLEVILLE WASHER
- M8 Bolt Size x 22mm OD x 1.5mm Thk
6 85802899
- 85802899 - CLAMP
- 76mm L x 30mm W x 5mm Thk
7 85802902
- 85802902 - SPACER
- 10mm ID x 16mm OD x 13.5mm L
8 85802900
- 85802900 - CLAMP
- 65mm L x 30mm W x 5mm Thk
9 85802894
- 85802894 - U-BRACKET
10 85802895
- 85802895 - COLLAR
- 4 Hoses
11 85802893
- 85802893 - SPACER
- 10mm ID x 16mm OD x 25.5mm L
12 87621909
- 87621909 - FLEXIBLE HOSE
13 87619498
- 87619498 - FLEXIBLE HOSE
14 89991976
- 89991976 - O-RING
- 0.07" Thk x 0.739" ID
- -18
- Cl 6
- 90 Duro
15 167266
- 167266 - O-RING
- 0.116" Thk x 0.924" ID
- -912
- Cl 6
- 90 Duro
16 83962538
- 83962538 - FITTING
- 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB
17 83962539
- 83962539 - HYD CONNECTOR
- 1" - 14 ORFS x 1-1/16 - 12 ORB
18 87621914
- 87621914 - FLEXIBLE HOSE
- 15.9mm ID x 650mm L
