(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

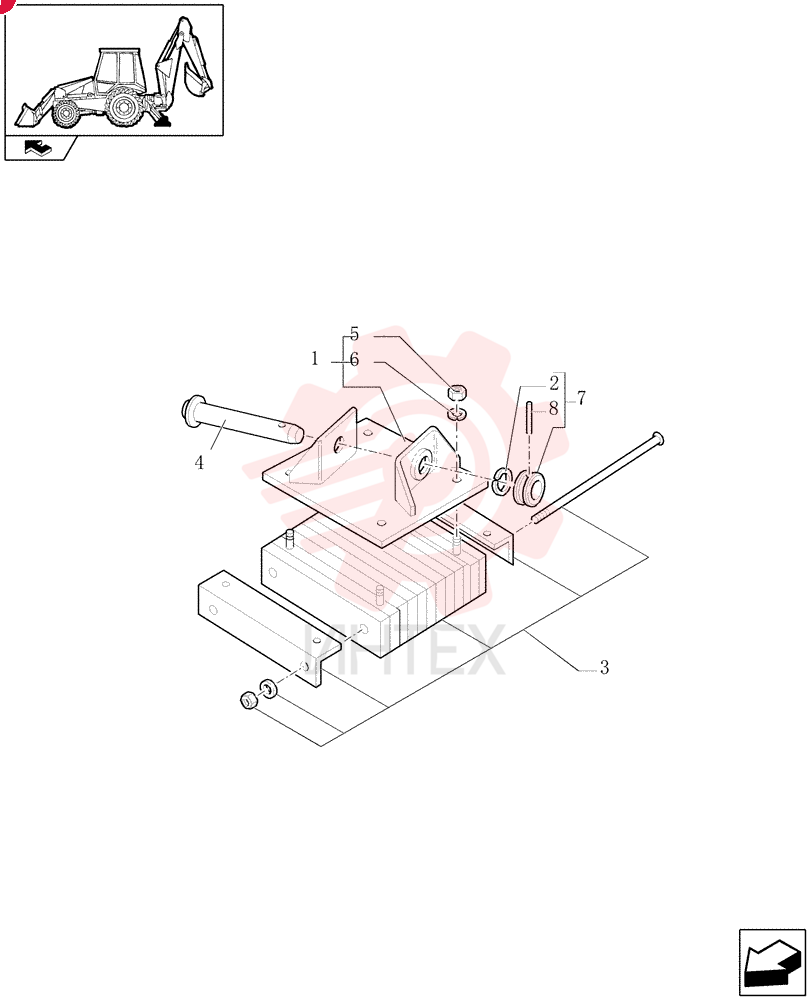

PAD 85804845

PAD 85804845

PAD 85804845

1 85804845

  • 85804845 - PAD

2 85804846

  • 85804846 - PAD

3 85802992

  • 85802992 - RING
  • 54mm ID x 59mm OD x 10mm Thk

4 83911040

  • 83911040 - PAD

5 85803141

  • 85803141 - PIN
  • 40mm OD x 249mm L

6 83911041

  • 83911041 - NUT

7 83911042

  • 83911042 - LOCK WASHER

8 85803139

  • 85803139 - LOCK PIN
  • 12mm OD x 60mm L

9 85802993

  • 85802993 - PIN
  • 12mm OD x 55mm L
