New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

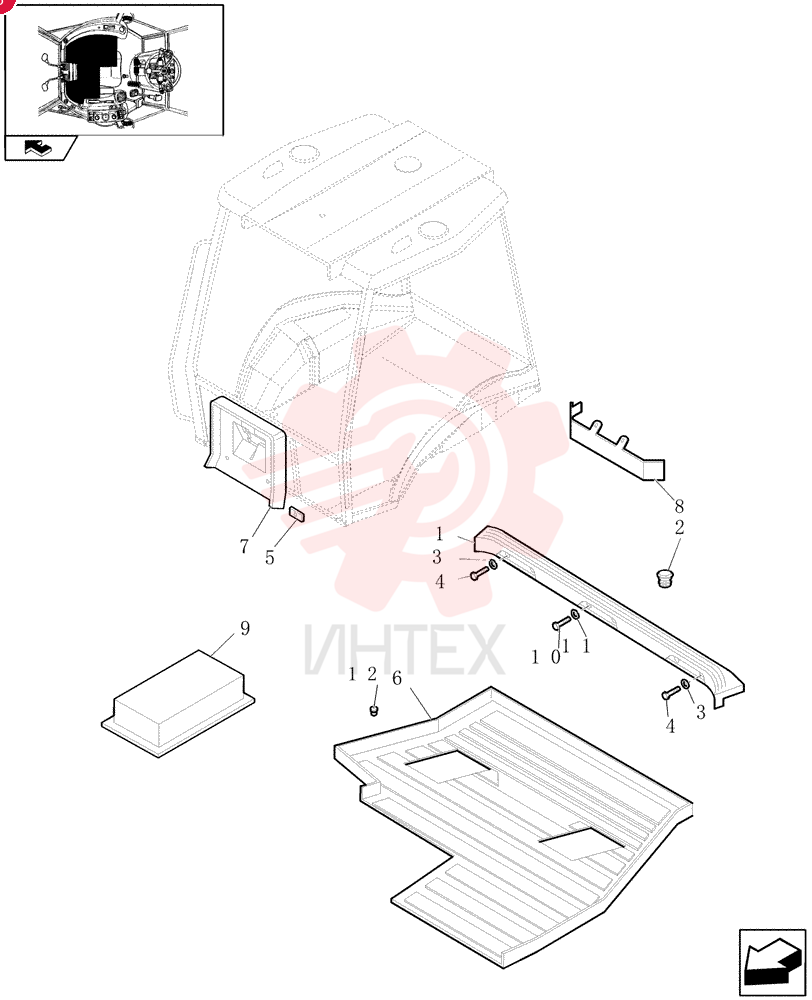

PANEL 87410385

PANEL 87410385

PANEL 87410385

1 87410385

  • 87410385 - PANEL

2 82001909

  • 82001909 - PLUG
  • 33mm OD

3 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

4 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

5 85812080

  • 85812080 - NUT

6 87410108

  • 87410108 - MAT

7 87408893

  • 87408893 - PANEL

8 87323749

  • 87323749 - BRACKET

9 4999021

  • 4999021 - GASKET

10 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd

11 12640621

  • 12640621 - WASHER
  • 6.15mm ID x 25mm OD x 2mm Thk

12 87319803

  • 87319803 - PLUG
  • Transparent
